TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDSOD323-T05STVS DIODE 5VWM 13.5VC SOD323 |
74,868 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 13.5V (Typ) | 42A (8/20µs) | 500W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
CPDT6-24V4-HFTVS DIODE 24VWM 47VC SOT23-6 |
54,756 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-6 |
|
1.5SMC36CATVS DIODE 30.8VWM 49.9VC DO214AB |
41,948 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
PGB1010603NRTVS DIODE 24VWM 150VC 0603 |
35,524 |
|
Datasheet |
0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
|
1.5SMC56CATVS DIODE 47.8VWM 77VC DO214AB |
28,482 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 19.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5SMC250ATVS SMC 214V 1500W UNIDIR |
25,236 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 4.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ60CATVS DIODE 60VWM 96.8VC DO214AB |
6,912 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 60V | 66.7V | 96.8V | 15.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE43A-E3/54TVS DIODE 36.8VWM 59.3VC 1.5KE |
5,676 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
SMAT70A-13-FTVS DIODE 70VWM 100VC SMA |
184,626 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 100V | 3.5A | 400W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SP1004U-ULC-04UTGTVS DIODE 9.2VC 1004/10DFN |
43,452 |
|
Datasheet |
10-XFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | - | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 1004/10DFN (2.5x1.0) |
;;2.jpg)
|
1.5SMC480ATVS SMC 408V 1500W UNIDIR |
26,800 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 2.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

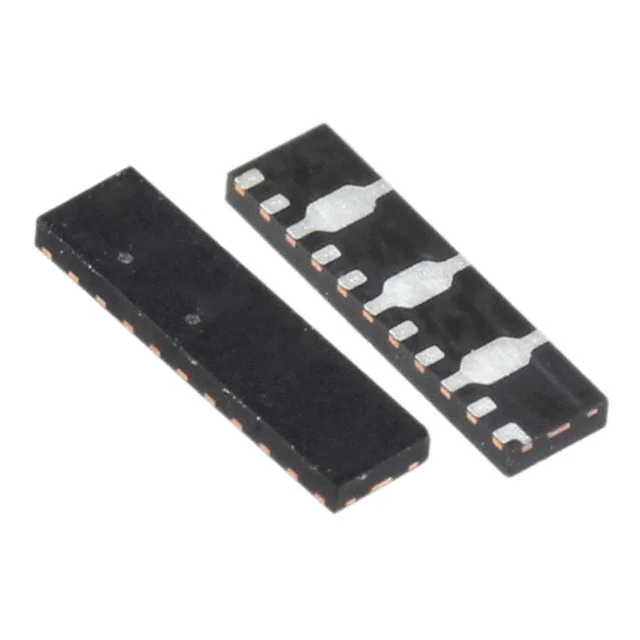

ESD8008MUTAGTVS DIODE 3.3VWM 8.1VC 14UDFN |
23,146 |
|
Datasheet |
14-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 5.5V | 8.1V (Typ) | 16A | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-UDFN (5.5x1.5) |
|
CDSOT23-SR208TVS DIODE 20VWM SOT23-6 |
19,954 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 20V | - | - | - | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
AQ4020-01FTGTVS DIODE 3.3VWM 24.5VC SOD323 |
14,308 |
|
Datasheet |
SC-76, SOD-323 | AQ4020, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 24.5V (Typ) | 30A (8/20µs) | 735W | No | CAN, Ethernet, USB | 2.5pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
VBUS054B-HSF-GS08TVS DIODE 5VWM 15VC LLP75-6L |
2,608 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Min) | 6.9V | 15V | 3A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-6L |
|
SMAJ40CATVS DIODE 40VWM 64.5VC DO214AC |
421,822 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SP4020-01FTGTVS DIODE 3.3VWM 21.8VC SOD323 |
92,920 |
|
Datasheet |
SC-76, SOD-323 | SP4020, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V (Max) | 3.5V | 21.8V (Typ) | 30A (8/20µs) | 750W | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ45CATVS DIODE 45VWM 72.7VC DO214AC |
29,740 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 5.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ36CA-13-FTVS DIODE 36VWM 58.1VC SMC |
17,642 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TPD4E02B04DQARTVS DIODE 3.6VWM 8.8VC 10USON |
46,996 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 5.5V | 8.8V (Typ) | 5A (8/20µs) | 17W | No | HDMI | 0.27pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
