TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5KE6V8CATVS DIODE 5.8VWM 13.4VC DO201 |
6,650 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 5.8V | 6.45V | 13.4V | 746A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4750pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
824001TVS DIODE 5VWM 9VC SOT23-6L |
6,500 |
|
Datasheet |
SOT-23-6 | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.2V | 9V (Typ) | 5A (8/20µs) | - | Yes | Ethernet | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6L |
|
1.5KE13CATVS D5.4X7.5 11.1V 1500W BIDIR |
6,196 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SZ1SMB60CAT3GTVS DIODE 60VWM 96.8VC SMB |
6,116 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | - | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
1KSMB12CATVS DIODE 10.2VWM 16.7VC DO214AA |
5,440 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 59.9A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
CDSOD323-T36SDIO TVS VWM 36V 500W UNIDIR SOD3 |
5,434 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 75V (Typ) | 5A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
SMCJ13CATVS DIODE 13VWM 21.5VC DO214AB |
4,960 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 69.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ100CATVS DIODE 100VWM 162VC SMC |
31,540 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5KE350CATVS D5.4X7.5 300V 1500W BIDIR |
18,822 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 300V | 332V | 482V | 3.1A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SM6T42CAYTVS DIODE 36VWM 58.1VC SMB |
17,916 |
|
Datasheet |
DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMCJ5.0A-13-FTVS DIODE 5VWM 9.2VC SMC |
16,054 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SC1004U-ULC-04UTGTVS DIODE ARRAY 4CH 1004DFN |
8,880 |
|
Datasheet |
10-UFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 7V (Max) | 7.5V | 11V (Typ) | 2A (8/20µs) | - | No | HDMI, USB | 0.2pF @ 3GHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-µDFN (2.5x1) |
|
TPSMC43CATVS DIODE 36.8VWM 59.3VC DO214AB |
8,138 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 25.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
1N6282A-E3/54TVS DIODE 25.6VWM 41.4VC 1.5KE |
7,314 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
1.5KE11CATVS D5.4X7.5 9.4V 1500W BIDIR |
5,924 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 9.4V | 10.5V | 15.6V | 96A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
1.5KE33CA-E3/54TVS DIODE 28.2VWM 45.7VC 1.5KE |
5,022 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 32.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
|
1N6283A-E3/54TVS DIODE 28.2VWM 45.7VC 1.5KE |
4,196 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 32.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|

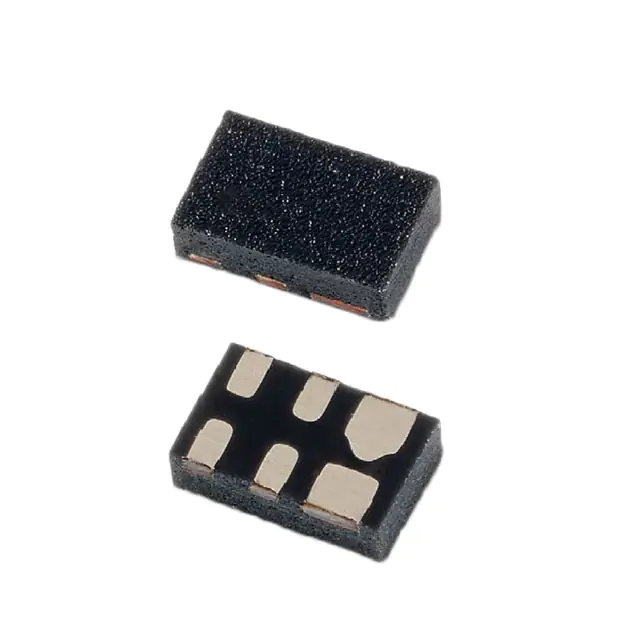

SP3401-02UTGTVS DIODE 3.3VWM 9VC 6UDFN |
3,656 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.5V | 9V | 10A (8/20µs) | - | No | Ethernet, USB 3.1 | 0.8pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-µDFN (1.6x1) |
|
|
1N6303A-E3/54TVS DIODE 171VWM 274VC 1.5KE |
3,492 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
|
CDSOD323-T18SCTVS DIODE 18VWM 40VC SOD323 |
24,220 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 40V (Typ) | 9A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
