TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPD5E003DPFRTVS DIODE 5VWM 19.5VC 6X2SON |
69,144 |
|
Datasheet |
6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 5 | 4 | 5V (Max) | 6V | 19.5V | 3A (8/20µs) | 40W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-X2SON (1x1) |
|
ESDALC6V1-5M6TVS DIODE 3VWM 6UQFN |
57,334 |
|
Datasheet |
6-UFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 5 | - | 3V | 6.1V | - | - | 30W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-µQFN (1.45x1.0) |
.jpg)
|
TPSMB18ATVS DIODE 15.3VWM 25.5VC DO214AA |
54,398 |
|
Datasheet |
DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 24.2A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ100CATVS DIODE 100VWM 162VC DO214AB |
43,638 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
VESD05A6-HAF-GS08TVS DIODE 5VWM 12VC LLP75-7L |
43,300 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 6 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | No | General Purpose | 40pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-7L |
|
UCLAMP2101T.TNTUCLAMP, 2.1V 100PF 5A ESD SLF100 |
42,504 |
|
- |
0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 2.1V | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | DFN1006-2 |
|
1KSMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
26,988 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 20A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE220CATVS DIODE 185VWM 328VC DO201 |
23,896 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 185V | 209V | 328V | 4.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SZ1SMB26AT3GTVS DIODE 26VWM 42.1VC SMB |
22,512 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.2A | 600W | No | - | 630pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMBJ28ATVS DIODE 28VWM 45.4VC DO214AA |
21,724 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.3A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMA6J12CA-TRTVS DIODE 12VWM 23.5VC SMA |
20,360 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 23.5V | 157A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J5.0CA-TRTVS DIODE 5VWM 13.4VC SMA |
19,690 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD4USB5U-TTSXTVS DIODE 5VWM 3.5VC DFN2510D-10 |
19,340 |
|
Datasheet |
10-WFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 3.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN2510D-10 |
|
PESD3V3S5UD,115TVS DIODE 3.3VWM 12VC 6TSOP |
19,026 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
P6KE36A-E3/54TVS DIODE 30.8VWM 49.9VC DO204AC |
17,634 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

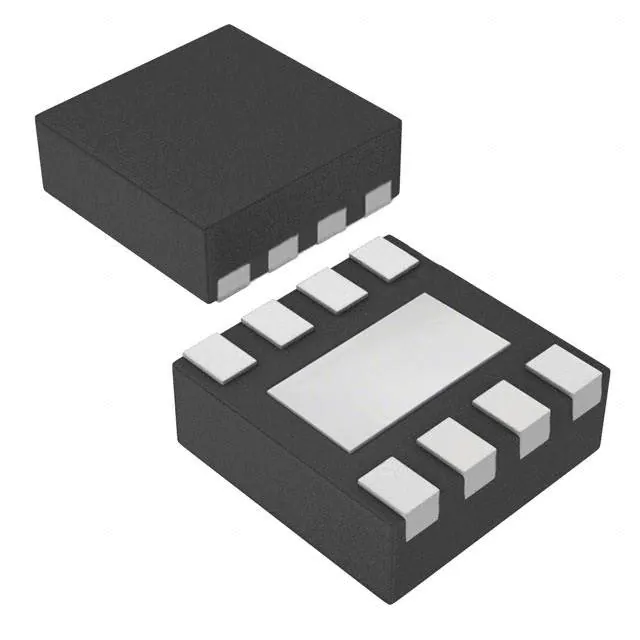

TPD8E003DQDRTVS DIODE 10VC 8-WSON |
17,516 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 8 | - | - | 6V | 10V | 2A (8/20µs) | 55W | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WSON (1.7x1.35) |
|
|
P6KE33A-E3/54TVS DIODE 28.2VWM 45.7VC DO204AC |
16,518 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPD2E2U06QDCKRQ1TVS DIODE 5.5VWM 12.4VC SC70-3 |
14,954 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 75W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 |
|
ESDA14V2SC6TVS DIODE 12VWM SOT23-6 |
13,818 |
|
Datasheet |
SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 12V | 14.2V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TPSMA6L12ATVS SMAF 12V 600W UNIDIR |
13,030 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
