TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE51CA-E3/54TVS DIODE 43.6VWM 70.1VC DO204AC |
10,330 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
ESDS302DBVRTVS DIODE 3.6VWM 3VC SOT23-5 |
7,728 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 4.5V | 3V (Typ) | 12A (8/20µs) | 85W | No | General Purpose | 2.3pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SM6T10CATVS DIODE 8.55VWM 14.5VC SMB |
7,004 |
|
Datasheet |
DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

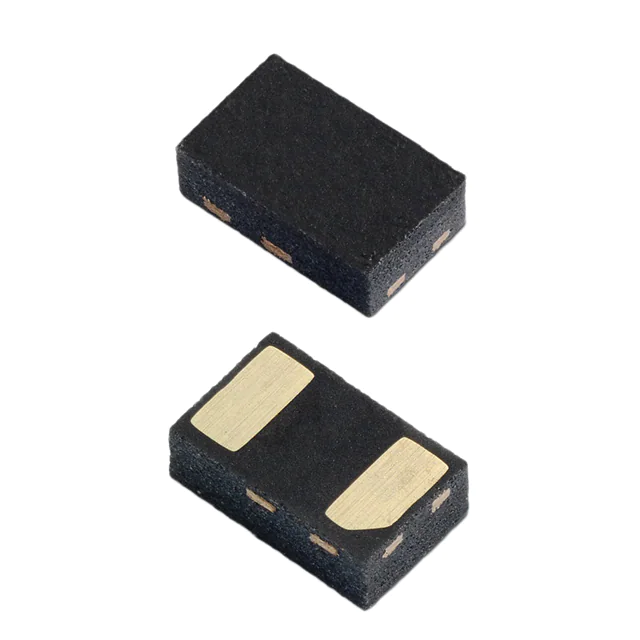

SC1105-01UTGTVS DIODE 5VWM 11.8VC 2DFN |
6,608 |
|
Datasheet |
0603 (1610 Metric) | SC11xx | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 11.8V (Typ) | 80A (8/20µs) | - | No | General Purpose | 660pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
1.5KE18ATVS DIODE 15.3VWM 32.5VC DO201 |
6,112 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.6V | 32.5V | 308A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4300pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SMCJ170ATVS DIODE 170VWM 275VC DO214AB |
6,040 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMF4L28ATVS DIODE 28VWM 45.4VC SOD123FL |
55,514 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
;;2.jpg)
|
SMCJ24CA-QTVS DIODE 24VWM 38.9VC DO214AB |
47,444 |
|
Datasheet |
DO-214AB, SMC | SMCJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SMCJ43CATVS DIODE 43VWM 69.4VC DO214AB |
46,052 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 21.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD3E001DRYRTVS DIODE 5.5VWM 6SON |
41,696 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 11V | - | - | 90W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMS24CT1GTVS DIODE 24VWM 44VC 6TSOP |
36,110 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PESD2ETH1GXT-QRTVS DIODE 24VWM TO236AB |
35,406 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | - | - | 2.3A (8/20µs) | - | No | General Purpose | 7.7pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SMBJ5V0CATVS DIODE 5VWM 9.2VC DO214AA |
34,986 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ6V5ATVS DIODE 6.5VWM 11.2VC DO214AA |
30,820 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6KE13CATVS DIODE 11.1VWM 18.2VC DO204AC |
28,862 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPD4E1B06DRLRTVS DIODE 5.5VWM 14.5VC 6SOT |
27,762 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 14.5V (Typ) | 3A (8/20µs) | 45W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
1.5SMC30CATVS DIODE 25.6VWM 41.4VC DO214AB |
25,258 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 36.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SA6.0CATVS DIODE 6VWM 10.3VC DO204AC |
22,798 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 49.5A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PTVS5V0P1UTP,115TVS DIODE 5VWM 9.2VC SOD128/CFP5 |
21,606 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMF5V0TRTVS DIODE 5VWM 9.2VC PMDU |
19,846 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9.2V | 21.7A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
