SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VWO140-12IO1MODULE AC CTLR 3PH 1200V V2-PACK |
18,632 |
|
Datasheet |
- | Module | Box | Obsolete | 3-Phase Controller - All SCRs | 6 SCRs | 1.2 kV | 46 A | 101 A | 1.5 V | 100 mA | 1150A, 1240A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-VSKH136/16PBFMODULE DIODE 135A INT-A-PAK |
15,016 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL136/16PBFMODULE DIODE 135A INT-A-PAK |
15,188 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT142/08SCR DBL HISCR 800V 140A INTAPAK |
10,894 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 800 V | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT142/12SCR DBL HISCR 1200V 140A INTAPAK |
4,908 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT162/08SCR DBL HISCR 800V 160A INTAPAK |
19,854 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - SCR/Diode | 2 SCRs | 800 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT162/12SCR DBL HISCR 1200V 160A INTAPAK |
16,550 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B652-2TMOD DIODE SCR 42.5A 240V .250"QC |
19,192 |
|
Datasheet |
B-2T | Module | Bulk | Active | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T620103004DNSCR PHASE CTRL MOD 1000V 300A |
10,306 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount, 8" Wire Lead |
|
VS-VSKT136/04PBFMODULE THYRISTOR 135A INT-A-PAK |
5,954 |
|
Datasheet |
- | INT-A-Pak | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 400 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
CD630815BSCR MOD DUAL 800V 150A |
10,860 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
CD631215BSCR MOD DUAL 1200V 150A |
16,432 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
CD631415BSCR MOD DUAL 1400V 150A |
13,580 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 160 A | 235 A | 2 V | 150 mA | 4870A, 5100A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL142/08PBFMODULE DIODE 140A INT-A-PAK |
14,608 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL26/04MODULE THYRISTOR 27A ADD-A-PAK |
12,302 |
|
Datasheet |
- | ADD-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

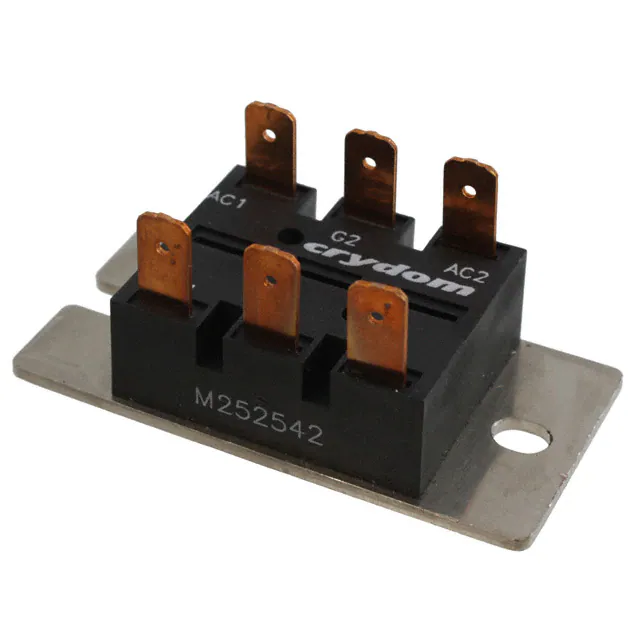

M252542MODULE POWER 25A 600V AC SWITCH |
13,688 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|
|
VS-VSKT136/08PBFMODULE THYRISTOR 135A INT-A-PAK |
11,534 |
|
Datasheet |
- | INT-A-Pak | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC132-18IO1MOD THYRISTOR DUAL 1800V Y4-M6 |
12,610 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 130 A | 300 A | 2.5 V | 150 mA | 4750A, 5080A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL142/12PBFMODULE DIODE 140A INT-A-PAK |
8,446 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL162/08PBFMODULE DIODE 160A INT-A-PAK |
16,400 |
|
Datasheet |
- | INT-A-PAK (3 + 4) | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | 355 A | 2.5 V | 150 mA | 4870A, 5100A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
