SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDR31050SCR MOD ISO DUAL 1000V 500A |
15,136 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 500 A | 785 A | 2.5 V | 250 mA | 18000A, 20000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|

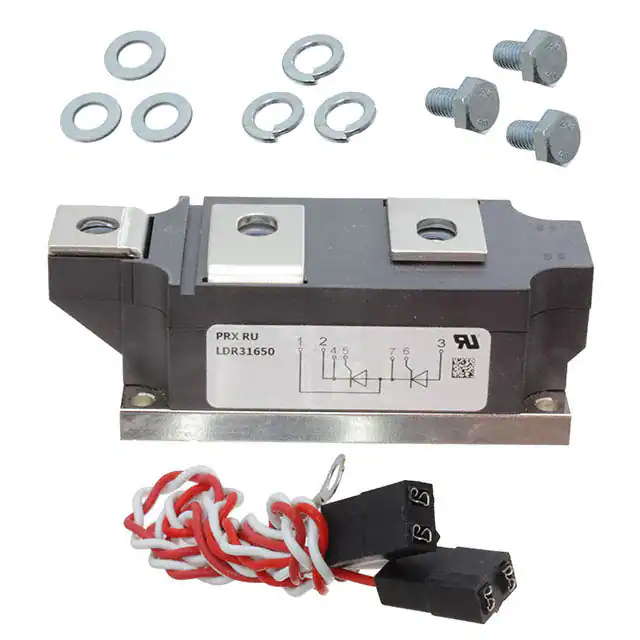

LDR31650SCR MODULE 1800V 785A POW-R-BLOK |
7,718 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 500 A | 785 A | 2.5 V | 250 mA | 18000A, 20000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
LDR31850SCR MODULE 1800V 785A POW-R-BLOK |
5,182 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 500 A | 785 A | 2.5 V | 250 mA | 18000A, 20000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
T1601N35TOFXPSA1SCR MODULE 3600V 29900A DO200AE |
14,756 |
|
Datasheet |
- | TO-200AF | Tray | Obsolete | Single | 1 SCR | 3.6 kV | 1900 A | 29900 A | 2.5 V | 350 mA | 44000A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T901N36TOFXPSA1SCR MODULE 3600V 29900A DO200AE |
6,240 |
|
Datasheet |
- | TO-200AC | Tray | Obsolete | Single | 1 SCR | 3.6 kV | 1900 A | 29900 A | 2.5 V | 350 mA | 44000A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T1503N75TOHXPSA2SCR MODULE 8000V 2770A DO200AE |
14,934 |
|
Datasheet |
- | DO-200AE | Tray | Obsolete | Single | 1 SCR | 8 kV | 1770 A | 2770 A | - | 350 mA | 57000A @ 50Hz | 100 mA | -40°C ~ 120°C | - | - | Chassis Mount |
|
|
T2001N34TOFXPSA1SCR MODULE 3600V 29900A DO200AE |
19,944 |
|
Datasheet |
- | TO-200AF | Tray | Obsolete | Single | 1 SCR | 3.6 kV | 1900 A | 29900 A | 2.5 V | 350 mA | 44000A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T901N32TOFXPSA1SCR MODULE 3600V 29900A DO200AE |
18,926 |
|
Datasheet |
- | TO-200AC | Tray | Obsolete | Single | 1 SCR | 3.6 kV | 1900 A | 29900 A | 2.5 V | 350 mA | 44000A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
DT430N22KOFHPSA1SCR MODULE PB60-1 |
14,794 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T1040N20TOFVTXPSA1SCR MODULE 2200V 2200A DO200AC |
13,192 |
|
Datasheet |
- | TO-200AC | Tray | Obsolete | Single | 1 SCR | 2.2 kV | 1040 A | 2200 A | 2.2 V | 250 mA | 21500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
T1060N65TOFXPSA1SCR MODULE 6500V 1650A DO200AD |
17,580 |
|
Datasheet |
- | TO-200AE | Tray | Obsolete | Single | 1 SCR | 6.5 kV | 1487 A | 1650 A | 2.5 V | 350 mA | 22500A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T1080N02TOFXPSA1SCR MODULE 600V 2000A DO200AA |
12,328 |
|
Datasheet |
- | DO-200AA, A-PUK | Tray | Obsolete | Single | 1 SCR | 600 V | 1078 A | 2000 A | 2 V | 200 mA | 16000A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Clamp On |
|
|
T1080N06TOFXPSA1SCR MODULE 600V 2000A DO200AA |
4,902 |
|
Datasheet |
- | DO-200AA, A-PUK | Tray | Obsolete | Single | 1 SCR | 600 V | 1078 A | 2000 A | 2 V | 200 mA | 16000A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Clamp On |
|
|
T1081N65TOHXPSA1SCR MODULE 7000V 2040A DO200AE |
15,522 |
|
Datasheet |
- | TO-200AF | Tray | Obsolete | Single | 1 SCR | 7 kV | 1800 A | 2040 A | 2.5 V | 350 mA | 35000A @ 50Hz | 350 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T1500N08TOFVTXPSA1SCR MODULE DISC T7526K-1 |
10,908 |
|
Datasheet |
- | TO-200AC | Tray | Obsolete | Single | 1 SCR | 800 V | 1500 A | 3500 A | 2 V | 250 mA | 39000A @ 50Hz | 500 mA | 125°C (TJ) | - | - | Clamp On |
|
|
T1500N12TOFVTXPSA1SCR MODULE 1800V 3500A DO200AC |
19,970 |
|
Datasheet |
- | DO-200AB, B-PUK | Tray | Obsolete | Single | 1 SCR | 1.8 kV | 1500 A | 3500 A | 2 V | 250 mA | 39000A @ 50Hz | 500 mA | -40°C ~ 140°C | - | - | Clamp On |
|
|
T160N18BOFXPSA1SCR MODULE 1900V 300A NONSTAND |
15,130 |
|
Datasheet |
- | Nonstandard | Tray | Obsolete | Single | 1 SCR | 1.9 kV | 160 A | 300 A | 1.4 V | 150 mA | 3600A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Screw Mount |
|
|
T1800N42TOFPRXPSA1SCR MODULE 4200V 2820A DO200AE |
11,744 |
|
Datasheet |
- | DO-200AE | Tray | Obsolete | Single | 1 SCR | 4.2 kV | 2490 A | 2820 A | 2.5 V | 300 mA | 41000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T1960N18TOFVTXPSA1SCR MODULE 2200V 4100A DO200AD |
9,332 |
|
Datasheet |
- | TO-200AD | Tray | Obsolete | Single | 1 SCR | 2.2 kV | 1960 A | 4100 A | 2.5 V | 300 mA | 40000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T1960N20TOFVTXPSA1SCR MODULE 2200V 4100A DO200AD |
7,426 |
|
Datasheet |
- | TO-200AD | Tray | Obsolete | Single | 1 SCR | 2.2 kV | 1960 A | 4100 A | 2.5 V | 300 mA | 40000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
