SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCC700-12IO1WSCR THY PHASE LEG 1200V WC-500 |
9,240 |
|
Datasheet |
- | WC-500 | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD700-12IO1WSCR THRYRISTOR 1200V WC-500 |
10,416 |
|
Datasheet |
- | WC-500 | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD700-16IO1WSCR THRYRISTOR 1600V WC-500 |
4,360 |
|
Datasheet |
- | WC-500 | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCK700-12IO1WSCR THYRISTOR CA 1200V WC-500 |
18,554 |
|
Datasheet |
- | WC-500 | Tray | Active | Common Cathode - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCK700-16IO1WSCR THYRISTOR CA 1600V WC-500 |
11,690 |
|
Datasheet |
- | WC-500 | Tray | Active | Common Cathode - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T512F-YEBMODULE POWER |
14,790 |
|
Datasheet |
- | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

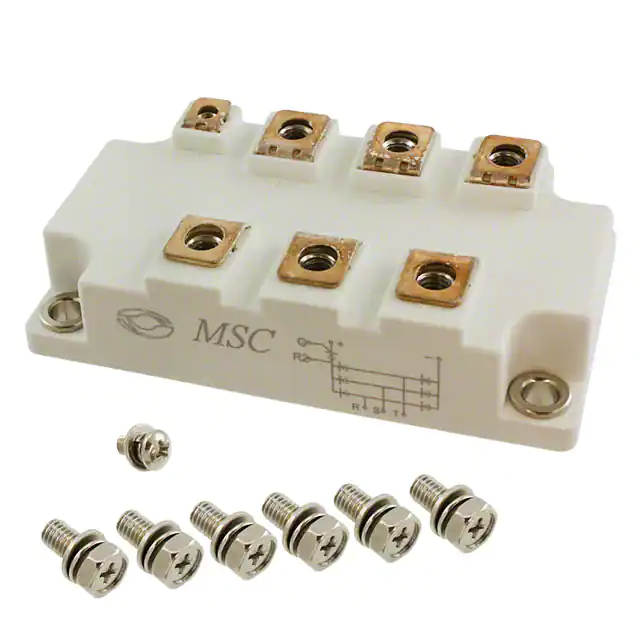

MSDT150-16POWER MOD BRIDGE THY 3PH M5 |
18,878 |
|
- |
- | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 150 mA | 1500A @ 50Hz | - | - | - | - | Chassis Mount |
|
MSFC110-16POWER MOD THYRISTOR/DIODE F1 |
14,022 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSFC160-16POWER MOD THYRISTOR/DIODE F2 |
9,476 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSTC110-16POWER MOD THYRISTOR/DIODE T1 |
17,314 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|
MSTC160-16POWER MOD THYRISTOR/DIODE T2 |
6,144 |
|
Datasheet |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|
|
MSFC60-08MOD THYRISTOR DIODE DBLR 60A SF1 |
6,782 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MSDT100-16PWR MOD THYRISTOR 1600V 100V SM4 |
11,480 |
|
- |
- | M4 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 100 A | - | 3 V | 150 mA | 1200A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSDT200-16PWR MOD THYRISTOR 1600V 200V SM4 |
17,058 |
|
- |
- | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 1900A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-08MOD THYRISTOR DIODE DBLR 130A D1 |
14,844 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-12MOD THYRISTOR DIODE DBLR 130A D1 |
19,046 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-16MOD THYRISTOR DIODE DBLR 130A D1 |
14,704 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC160-08MOD THYRISTOR DIODE DBLR 160A D1 |
12,382 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC160-12MOD THYRISTOR DIODE DBLR 160A D1 |
13,796 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC25-08MOD THYRISTOR DIODE DBLR 25A SF1 |
11,840 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
