Special Purpose Isolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Current - Output / Channel | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSL-32OPTOISO PHOTOCELL OPTOCOUPLER |
23,984 |
|
Datasheet |
- | Module | Bulk | Active | Photocell Optocoupler | 1 | - | - | - | - | - | - | - | 40 mA | 60V (Max) | - | Free Hanging | - | - |
|
|
NSL-32SR3OPTOISO PHOTOCELL OPTOCOUPLER |
14,666 |
|
Datasheet |
- | Module | Bulk | Active | Photocell Optocoupler | 1 | - | - | - | - | - | 5ms, 10ms | - | 25 mA | 60V (Max) | - | Free Hanging | - | - |
|
MID400MOPTOISO 2.5KV OPN COLLECTOR 8DIP |
1,016 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | AC Line Monitor | 1 | 2500Vrms | - | AC, DC | 20mA | 1ms, 1ms (Typ) | - | 1.5 V | 30 mA | 7V | -40°C ~ 85°C | Through Hole | 8-PDIP | UR |
|
HCPL-4200-000EOPTOISO 3.75KV RECEIVER 8DIP |
1,118 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
HCPL-4100-000EOPTOISO 3.75KV TRANSMITTER 8DIP |
392 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|

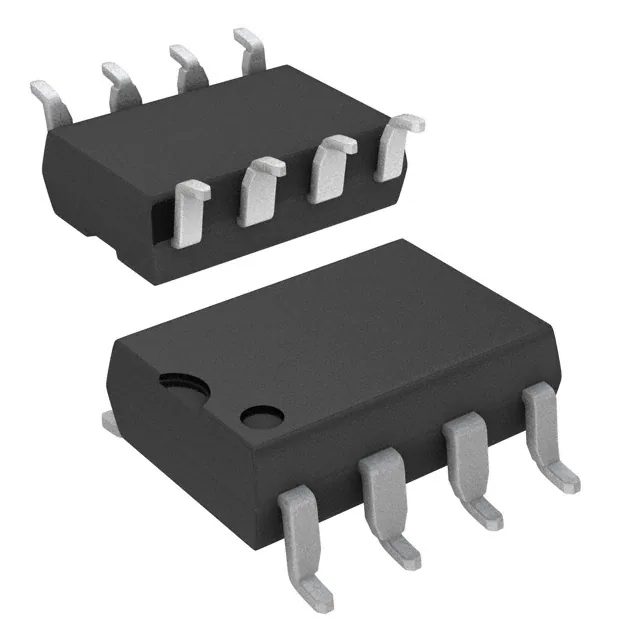

HCPL-4200-500EOPTOISO 3.75KV RECEIVER 8DIP GW |
7,744 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-4100-500EOPTOISO 3.75KV TRNSMTR 8DIP GW |
2,700 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-4100-300EOPTOISO 3.75KV TRNSMTR 8DIP GW |
750 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HSSR-7110#300OPTOISO 1.5KV PWR MOSFET 8SMD GW |
604 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Surface Mount | 8-SMD Gull Wing | - |
|
|
HSSR-7111OPTOISO 1.5KV POWER MOSFET 8DIP |
6,740 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Through Hole | 8-DIP | - |
|
|
NSL-32SR2SOPTOISO PHOTOCELL OPTOCOUPLER |
998 |
|
Datasheet |
- | Module | Bulk | Active | Photocell Optocoupler | 1 | - | - | - | - | - | 5ms, 80ms | - | 25 mA | 60V (Max) | - | Free Hanging | - | - |
|
|
MID400SDMOPTOISO 2.5KV OPN COLLECTOR 8SMD |
1,592 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | AC Line Monitor | 1 | 2500Vrms | - | AC, DC | 20mA | 1ms, 1ms (Typ) | - | 1.5 V | 30 mA | 7V | -40°C ~ 85°C | Surface Mount | 8-SMD | UR |
|
|
HCPL-2602-300EOPTOISO 3.75KV LINE RX 8DIP GW |
1,336 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Line Receiver | 1 | 3750Vrms | 1kV/µs | AC, DC | 50mA | 75ns, 75ns | 24ns, 10ns | 2.3 V | 60 mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
NSL-37V5C3/2PHOTOCELL (CDS) OUTPUT OPTOCOUPL |
514 |
|
Datasheet |
- | 5-SMD, Flat Leads | Bulk | Active | Photocell Optocoupler | 1 | 2500Vrms | - | DC | - | - | 3ms, - | 1.2 V | 40 mA | - | -40°C ~ 75°C | Surface Mount | - | - |
|
|
HCPL-4200OPTOISO 3.75KV RECEIVER 8DIP |
610 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
HSSR-7112-300OPTOISO 1.5KV PWR MOSFET 8SMD GW |
7,910 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Surface Mount | 8-SMD Gull Wing | - |
|
|
HCPL-2602-000EOPTOISO 3.75KV LINE RX 8DIP |
1,436 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Line Receiver | 1 | 3750Vrms | 1kV/µs | AC, DC | 50mA | 75ns, 75ns | 24ns, 10ns | 2.3 V | 60 mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
NSL-33-007OPTOISO 2KV PHOTOCELL |
8,090 |
|
Datasheet |
- | Axial - 5 Leads | Bulk | Active | Photocell Optocoupler | 1 | 2000Vrms | - | DC | - | - | 1.2ms, 2.1ms | 2.1 V | 20 mA | 100V (Max) | -40°C ~ 75°C | Through Hole | - | - |
|
NSL-28OPTOISO PHOTOCELL OPTOCOUPLER |
542 |
|
Datasheet |
- | Module | Bulk | Active | Photocell Optocoupler | 1 | - | - | - | - | - | 5ms, 80ms | - | 40 mA | 100V (Max) | - | Free Hanging | - | - |
|
|
HCPL-2612OPTOISO 3.75KV LINE RX 8DIP |
474 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Line Receiver | 1 | 3750Vrms | 3.5kV/µs | AC, DC | 50mA | 75ns, 75ns | 24ns, 10ns | 2.3 V | 60 mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
