Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3RV-ST500-A AC/DC24RELAY GEN PURPOSE SPST 2A 24V |
4,540 |
|
Datasheet |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC/DC | 75 V ~ 264 V | 2 A | - | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST700-A AC/DC24RELAY GEN PURPOSE SPST 2A 24V |
6,980 |
|
Datasheet |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC/DC | 75 V ~ 264 V | 2 A | - | Screw Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST700-AL DC12RELAY GEN PURPOSE SPST 2A 12V |
3,274 |
|
Datasheet |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 12VDC | 75 V ~ 264 V | 2 A | - | Screw Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST700-AL AC/DC24RELAY GEN PURPOSE SPST 2A 24V |
9,434 |
|
Datasheet |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VAC/DC | 75 V ~ 264 V | 2 A | - | Screw Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
RSSAN-50ASOLID STATE RELAY 50A |
3,352 |
|
- |
RSS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|

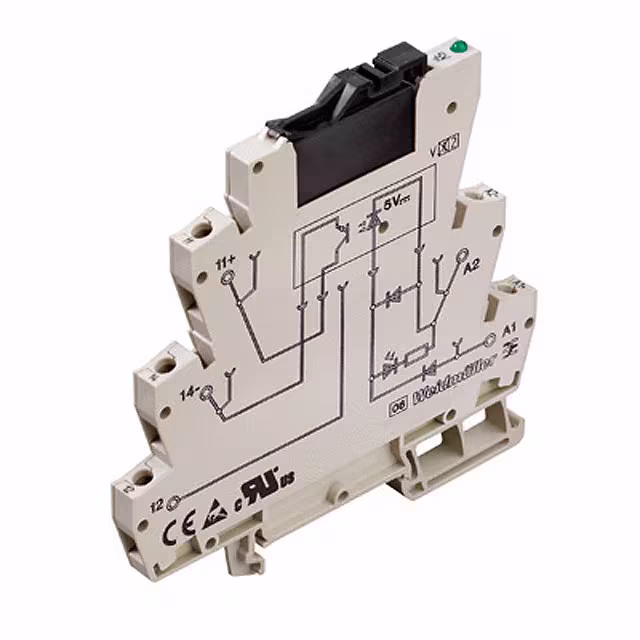

8633000000SSR RELAY SPST-NO 2A 3-33V |
2,454 |
|
- |
MOS | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 33 V | 2 A | - | Screw Terminal | -25°C ~ 50°C | - | cULus | - | - |
|
D2410K-10SSR RELAY SPST-NO 10A 24-280V |
8,216 |
|
Datasheet |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
CSW2425FGSSR RELAY SPST-NO 25A 24-280V |
7,716 |
|
Datasheet |
CSW | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
A2410PGSSR RELAY SPST-NO 10A 24-280V |
3,934 |
|
Datasheet |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
|
84134910HSSR RELAY, PANEL MOUNT, IP00, 28 |
2,522 |
|
Datasheet |
GNA5 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
CWU2410PSSR RELAY SPST-NO 10A 24-280V |
6,808 |
|
Datasheet |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 20 ~ 280VAC, 20 ~ 48VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
A1225KSSR RELAY SPST-NO 25A 24-140V |
8,476 |
|
Datasheet |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 140 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
859-732SSR RELAY SPST-NO 500MA 3-30V |
3,954 |
|
Datasheet |
859 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 30 V | 500 mA | - | Spring Terminal | -25°C ~ 70°C | - | EAC, UL | - | - |
|
G3NA-425B DC5-24SSR RELAY SPST-NO 25A 180-528V |
8,346 |
|
Datasheet |
G3NA | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 5 ~ 24VDC | 180 V ~ 528 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
CWD2425P-10SSR RELAY SPST-NO 25A 24-280V |
3,868 |
|
Datasheet |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
ASR-SV240A10ZY-LSSR RELAY SPST-NO 10A 24-280V |
8,304 |
|
Datasheet |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
ASR-SV240A10RY-LSSR RELAY SPST-NO 10A 24-280V |
3,918 |
|
Datasheet |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 90 ~ 280VAC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
LR1200480D40RSSR RELAY SPST-NO 40A 48-530V |
8,678 |
|
Datasheet |
LR | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 530 V | 40 A | - | PC Pin | -30°C ~ 80°C | - | CE, cURus | - | - |
|
A2410E-BSSR RELAY SPST-NC 10A 24-280V |
5,640 |
|
Datasheet |
1 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | AC, Zero Cross | 18 ~ 36VAC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
GNRDM4D1CSSR 4A OUT 60VDC IN 4-30VDC NONE |
8,164 |
|
Datasheet |
GNRDM | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5 ~ 30VDC | 7 V ~ 36 V | 4 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, UKCA | - | - |
