Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP3403(TP,FSSR RELAY SPST-NO 1A 0-20V |
4,572 |
|
- |
TLP3403 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 20 V | 1 A | 220 mOhms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3475(TP,FSSR RELAY SPST-NO 300MA 0-50V |
46,622 |
|
Datasheet |
TLP3475 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 50 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3441(TP,FSSR RELAY SPST-NO 140MA 0-40V |
21,222 |
|
Datasheet |
TLP3441 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 140 mA | 5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3450(TP,FSSR RELAY SPST-NO 200MA 0-20V |
17,466 |
|
Datasheet |
TLP3450 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 20 V | 200 mA | 5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3419(TP,F)SSR RELAY SPST-NO 200MA 0-80V |
16,256 |
|
Datasheet |
TLP3419 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 80 V | 200 mA | 8 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3420(TP,FSSR RELAY SPST-NO 100MA 0-100V |
14,710 |
|
Datasheet |
TLP3420 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 100 V | 100 mA | 14 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3417(TP,F)SSR RELAY SPST-NO 120MA 0-80V |
11,710 |
|
Datasheet |
TLP3417 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 80 V | 120 mA | 12 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3442(TP,FSSR RELAY SPST-NO 100MA 0-40V |
10,064 |
|
Datasheet |
TLP3442 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 100 mA | 20 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
TLP3403R(TP,FSSR RELAY SPST-NO 1A 0-20V |
10,046 |
|
Datasheet |
TLP3403R | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.8VDC | 0 V ~ 20 V | 1 A | 220 mOhms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSONR (1.45x2.75) | - | - | - |
|
|
TLP3412(TP,FSSR RELAY SPST-NO 400MA 0-60V |
7,154 |
|
Datasheet |
TLP3412 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 60 V | 400 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
|
TLP3451(TP,FSSR RELAY SPST-NO 120MA 0-60V |
6,108 |
|
Datasheet |
TLP3451 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 60 V | 120 mA | 15 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|
LH1540AABTRSSR RELAY SPST-NO 120MA 0-350V |
7,564 |
|
Datasheet |
LH1540 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.26VDC | 0 V ~ 350 V | 120 mA | 20 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | cUL, DIN, FIMKO, UL | - | - |
|
LH1540ATSSR RELAY SPST-NO 120MA 0-350V |
504 |
|
Datasheet |
LH1540 | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.26VDC | 0 V ~ 350 V | 120 mA | 20 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | cUL, DIN, FIMKO, UL | - | - |
|
C247SSSR RELAY SPST-NO 1.25A 0-80V |
20,018 |
|
Datasheet |
COTOMOS™ | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 80 V | 1.25 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
.jpg)
|
CPC1981YSSR RELAY SPST-NO 180MA 0-1000V |
5,112 |
|
Datasheet |
CPC, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 1000 V | 180 mA | 18 Ohms | PC Pin | -40°C ~ 85°C | 4-SIP | CSA, TUV, UL | - | - |
|
C247STRSSR RELAY SPST-NO 1.25A 0-80V |
2,744 |
|
Datasheet |
COTOMOS™ | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 80 V | 1.25 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
TLP3431(TP,FSSR RELAY SPST-NO 450MA 0-20V |
7,410 |
|
Datasheet |
TLP3431 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 20 V | 450 mA | 1.2 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSON (1.45x2.45) | - | - | - |
|

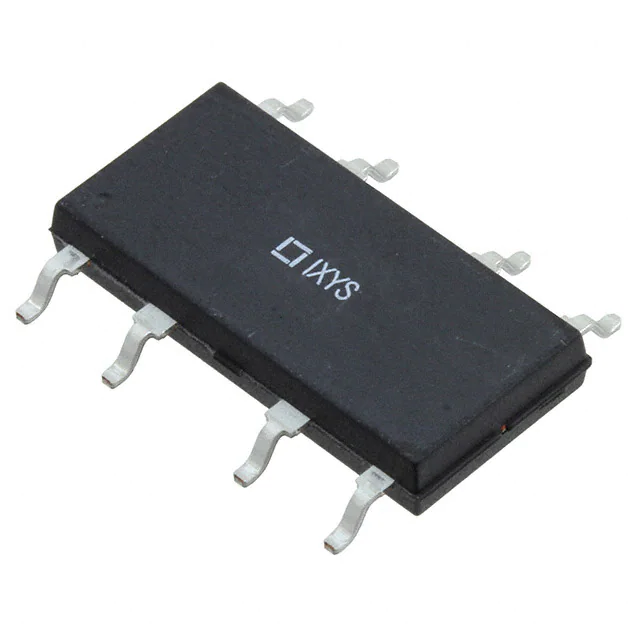

CPC1907BSSR RELAY SPST-NO 6A 0-60V |
18,998 |
|
Datasheet |
CPC, OptoMOS® | Bulk | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 60 V | 6 A | 60 mOhms | Gull Wing | -40°C ~ 85°C | 8-SOIC | CSA, TUV, UL | - | - |
|
C226STRSSR RELAY SPST-NO 2A 0-40V |
5,196 |
|
Datasheet |
COTOMOS™ | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 40 V | 2 A | 85 mOhms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
TLP3412R(TP,FSSR RELAY SPST-NO 400MA 0-60V |
8,832 |
|
Datasheet |
TLP3412R | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.8VDC | 0 V ~ 60 V | 400 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | 4-VSONR (1.45x2.75) | - | - | - |
