Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TXS2SL-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
8,696 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 16.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
6,818 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
6,002 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 8.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2SL-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
7,560 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 5.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L-12VRELAY GEN PURPOSE DPDT 1A 12V |
9,794 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 2.9 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L-24VRELAY GEN PURPOSE DPDT 1A 24V |
8,290 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 2.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
2,068 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.7 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L2-12VRELAY GEN PURPOSE DPDT 1A 12V |
7,468 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 5.8 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L2-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
5,142 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 23.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L2-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
9,304 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 15.6 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L2-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
5,096 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 11.7 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 4.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXS2SL-L2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
3,570 |
|
Datasheet |
TX-S | Tube | Obsolete | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 7.8 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 7.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
M-949-01RELAY TELECOM SPST 500MA |
8,564 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | - | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | - | 125 mA | Non Latching | - | PC Pin | - | - | - | - | 1 ms | 0.5 ms | 0°C ~ 70°C | - | Telecom | - | - |
|
|
M-949-11RELAY TELECOM SPST 500MA |
6,112 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | - | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | - | 125 mA | Non Latching | - | PC Pin | - | - | - | - | 1 ms | 0.5 ms | 0°C ~ 70°C | - | Telecom | - | - |
|
G6JU-2FL-Y DC24RELAY TELECOM DPDT 1A 24V |
2,866 |
|
Datasheet |
G6J-Y | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 6.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6JU-2FS-Y DC12RELAY TELECOM DPDT 1A 12V |
9,998 |
|
Datasheet |
G6J-Y | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
G6JU-2FS-Y DC24RELAY TELECOM DPDT 1A 24V |
7,390 |
|
Datasheet |
G6J-Y | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 6.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
OUAZ-SS-105L,900RELAY TELECOM SPDT 1A 5V |
4,958 |
|
Datasheet |
OUAZ, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.5 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
T81N5D312-05RELAY TELECOM SPDT 1A 5V |
8,624 |
|
Datasheet |
T81 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

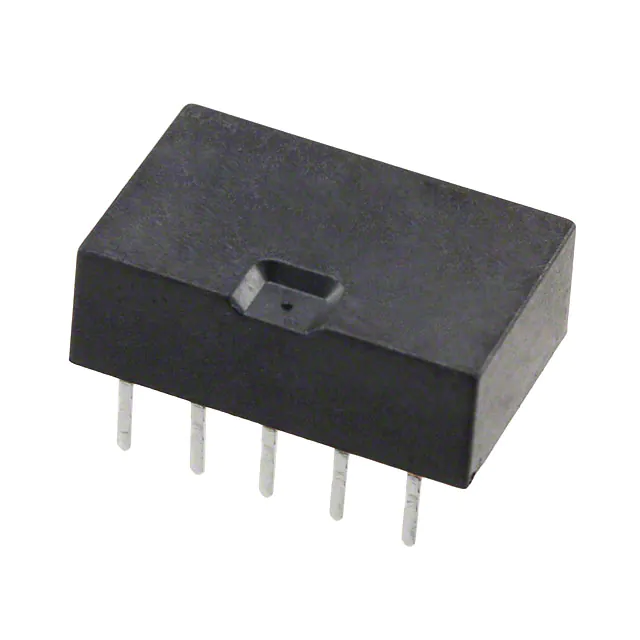

D3002RELAY TELECOM DPDT 2A 12V |
2,244 |
|
Datasheet |
FP2, AXICOM | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
