Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393809-2RELAY GENERAL PURPOSE 24V |
4,944 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | - | - | - | - | 27 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
1-1393809-9RELAY GENERAL PURPOSE 2A 32V |
2,742 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Socketable | 32VDC | - | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 18.8 mA | Non Latching | - | Plug In | - | - | 22.6 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1-1393809-7RELAY GENERAL PURPOSE 32V |
4,878 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 32VDC | - | - | - | - | 18.8 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
1-1393811-1RELAY GEN PURPOSE 4PDT 2A 60V |
6,166 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Through Hole | 60VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 12.8 mA | Non Latching | - | PC Pin | - | - | 36 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
1-1393809-5RELAY GEN PURPOSE 6PST 2A 32V |
6,196 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 32VDC | 6PST-NO (6 Form A) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 18.8 mA | Non Latching | - | Plug In | - | - | 22.6 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
8-1393808-4RELAY GEN PURPOSE 6PST 2A 24V |
2,484 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 6PST-NO (6 Form A) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | 14.5 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
7-1393810-6RELAY GEN PURPOSE 4PDT 2A 32V |
7,830 |
|
Datasheet |
V23154, AXICOM | Bulk | Active | Through Hole | 32VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 18.8 mA | Non Latching | - | PC Pin | - | - | 22.6 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2-1393810-7RELAY GEN PURPOSE DPDT 2A 24V |
5,702 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | PC Pin | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMS1201S108PRELAY GEN PURPOSE DPDT 2A 12V |
3,024 |
|
Datasheet |
HMS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | - | - | 38.4 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.6 VDC | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMS1130S03PRELAY GENERAL PURPOSE DPDT 2A |
4,010 |
|
- |
HMS, CII | Bulk | Active | Chassis Mount | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | Solder Hook | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HMS1201S112PRELAY GEN PURPOSE DPDT 2A 36V |
8,978 |
|
- |
HMS, CII | Bulk | Active | Through Hole | 36VDC | DPDT (2 Form C) | 2 A | - | - | 13.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.8 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

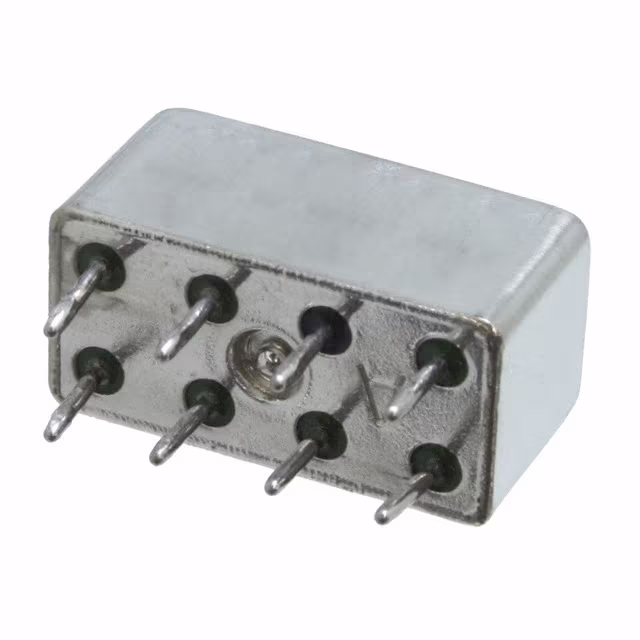

HMS1201S111PRELAY GEN PURPOSE DPDT 2A 26.5V |
6,860 |
|
- |
HMS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/44 |
|
|
1-1617163-0RELAY GEN PURPOSE DPDT 1A 26.5V |
5,366 |
|
Datasheet |
MADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/20 |
|
|
8-1393808-8RELAY GENERAL PURPOSE 2A 24V |
4,250 |
|
- |
V23154, AXICOM | Bulk | Active | Socketable | 24VDC | - | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
8-1393808-7RELAY GENERAL PURPOSE 2A 24V |
3,150 |
|
- |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | - | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
JMSC-26XPSRELAY GEN PURPOSE DPDT 1A 26.5V |
9,008 |
|
- |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
3-1393809-4RELAY GEN PURPOSE 6PST 2A 48V |
9,590 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Socketable | 48VDC | 6PST-NO (6 Form A) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 15 mA | Non Latching | - | Plug In | - | - | 30 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
6-1393810-3RELAY GEN PURPOSE 4PDT 2A 15V |
2,926 |
|
Datasheet |
V23154, AXICOM | Bulk | Obsolete | Through Hole | 15VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 46.1 mA | Non Latching | - | PC Pin | - | - | 9.1 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1131G00RELAY GEN PURPOSE DPDT 2A 12V |
7,858 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | - | - | 75 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1-1617030-5RELAY GEN PURP DPDT 2A 26.5-32V |
4,518 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 26.5 ~ 32VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
