RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

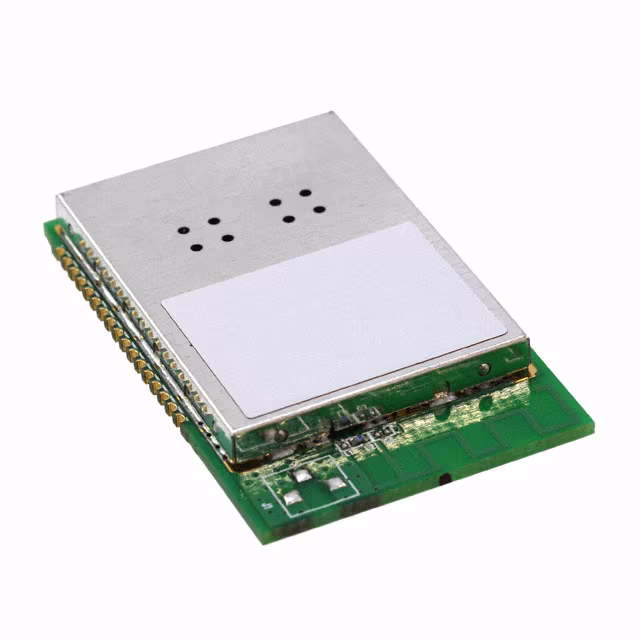

700-0025-100RF TXRX MOD WIFI TH SMD |
9,890 |
|
Datasheet |
- | Module | Tray | Discontinued at Digi-Key | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 11Mbps | 18dBm | - | I2C, JTAG, SPI, UART | Integrated, Trace | - | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|

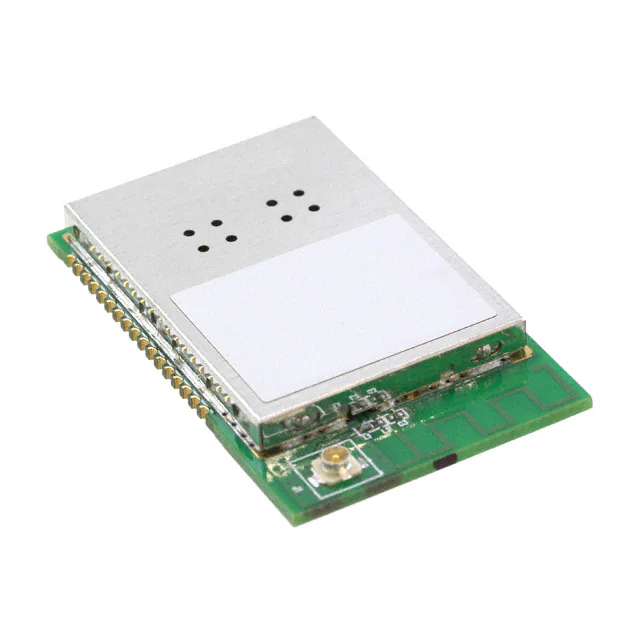

700-0026-100RF TXRX MODULE WIFI U.FL SMD |
9,460 |
|
Datasheet |
- | Module | Tray | Discontinued at Digi-Key | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 11Mbps | 18dBm | - | I2C, JTAG, SPI, UART | Antenna Not Included, U.FL | - | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
700-0034-100RF TXRX MODULE WIFI U.FL SMD |
7,628 |
|
Datasheet |
- | Module | Tray | Discontinued at Digi-Key | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 11Mbps | 18dBm | - | I2C, JTAG, SPI, UART | Antenna Not Included, U.FL | - | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|

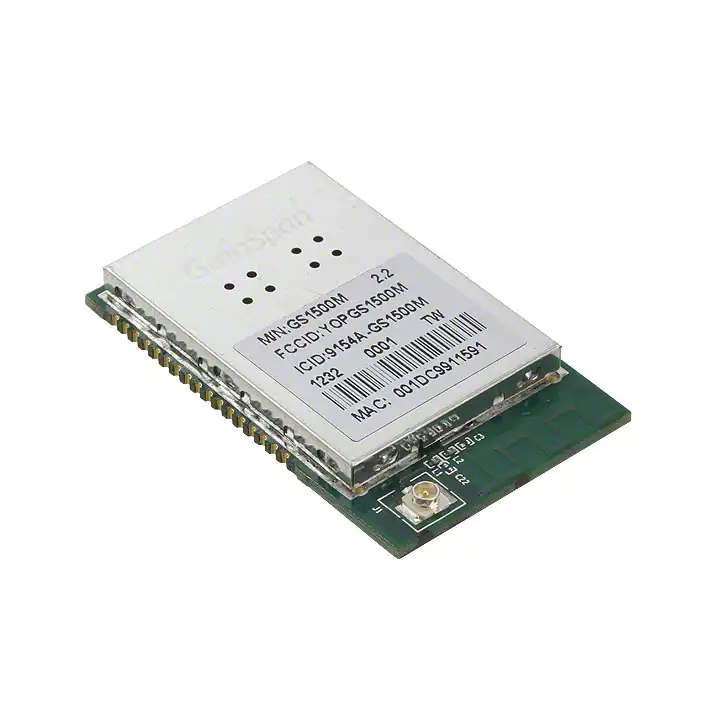

700-0036-100RF TXRX MOD WIFI TH+ U.FL SMD |
7,764 |
|
Datasheet |
- | Module | Tray | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 54Mbps | 14dBm | - | I2C, JTAG, SPI, UART | Integrated, Trace + U.FL | - | - | 3.3V | - | - | Surface Mount | -40°C ~ 85°C |
|
WT12-A-AI3RF TXRX MOD BLUETOOTH CHIP SMD |
5,932 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 2 | DQPSK, GFSK | 2.4GHz | 3Mbps | 3dBm | -86dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | 8MB Flash | 3.1V ~ 3.6V | 70mA | 70mA | Surface Mount | -40°C ~ 85°C |
|

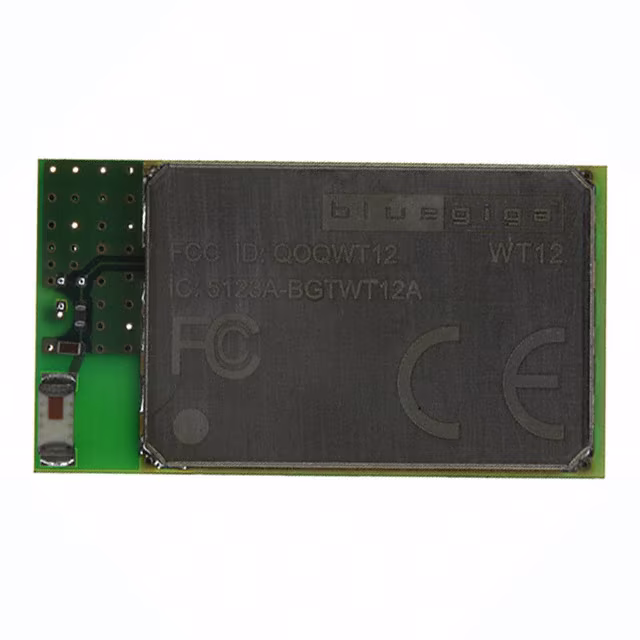

WT12-A-AIRF TXRX MOD BLUETOOTH CHIP SMD |
4,376 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 2 | DQPSK, GFSK | 2.4GHz | 3Mbps | 3dB | -86dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | 8MB Flash | 3.1V ~ 3.6V | 70mA | 70mA | Surface Mount | -40°C ~ 85°C |
|
WT11I-A-AI5RF TXRX MOD BLUETOOTH CHIP SMD |
2,078 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v2.0 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 17dBm | -86dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | - | 2.7V ~ 3.6V | 39mA | 54mA ~ 128mA | Surface Mount | -40°C ~ 85°C |
|
WT11I-E-AI4RF TXRX MOD BLUETOOTHU.FL SMD |
3,266 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.0 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 17dBm | -86dBm | PIO, SPI, UART, USB | Antenna Not Included, U.FL | - | - | 2.7V ~ 3.6V | 39mA | 54mA ~ 128mA | Surface Mount | -40°C ~ 85°C |
|
WT21-A-HCIRF TXRX MOD BLUETOOTH CHIP SMD |
8,098 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR | - | 2.4GHz | 3Mbps | 6dBm | -87dBm | PIO, SDIO, SPI, UART | Integrated, Chip | - | - | 1.8V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C |
|

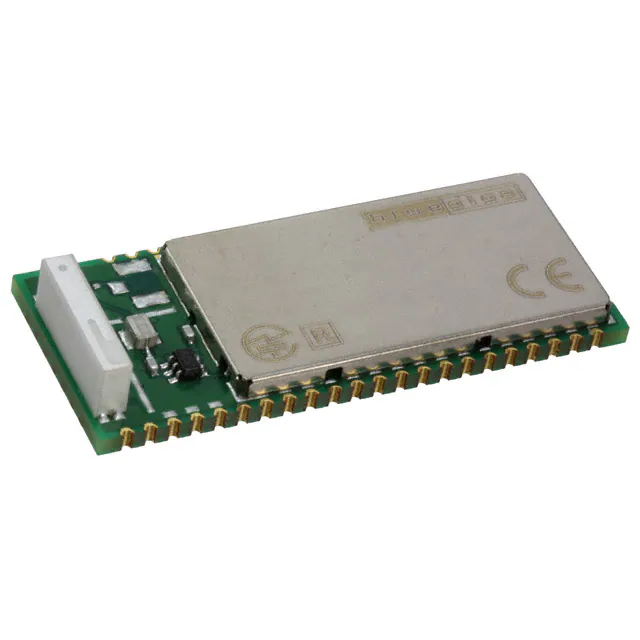

WT41-A-AI4RF TXRX MOD BLUETOOTH CHIP SMD |
4,694 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 19dBm | -92dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | - | 3V ~ 3.6V | 52.6mA | 51.6mA ~ 120mA | Surface Mount | -40°C ~ 85°C |
|
WT41-E-AI5RF TXRX MOD BLUETOOTHU.FL SMD |
5,172 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 19dBm | -92dBm | PIO, SPI, UART, USB | Antenna Not Included, U.FL | - | - | 3V ~ 3.6V | 52.6mA | 51.6mA ~ 120mA | Surface Mount | -40°C ~ 85°C |
|
WT41-E-AI4RF TXRX MOD BLUETOOTHU.FL SMD |
9,784 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 19dBm | -92dBm | PIO, SPI, UART, USB | Antenna Not Included, U.FL | - | - | 3V ~ 3.6V | 52.6mA | 51.6mA ~ 120mA | Surface Mount | -40°C ~ 85°C |
|
WT11I-A-AI4RF TXRX MOD BLUETOOTH CHIP SMD |
7,400 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v2.0 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 17dBm | -86dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | - | 2.7V ~ 3.6V | 39mA | 54mA ~ 128mA | Surface Mount | -40°C ~ 85°C |
|
BT111-A-HCIRF TXRX MOD BLUETOOTH CHIP SMD |
5,654 |
|
Datasheet |
- | 41-SMD Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v4.0 | - | 2.4GHz | - | 8dBm | -89dBm | SPI, UART, USB | Integrated, Chip | CSR8510 | - | 1.7V ~ 3.6V | - | - | Surface Mount | -30°C ~ 85°C |
|
WF111-E-V1RF TXRX MODULE WIFI U.FL SMD |
4,068 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 72.2Mbps | 17dBm | -97dBm | PIO, SDIO, SPI | Antenna Not Included, U.FL | - | - | 1.7V ~ 3.6V | 70mA ~ 88mA | 74mA ~ 192mA | Surface Mount | -40°C ~ 85°C |
|

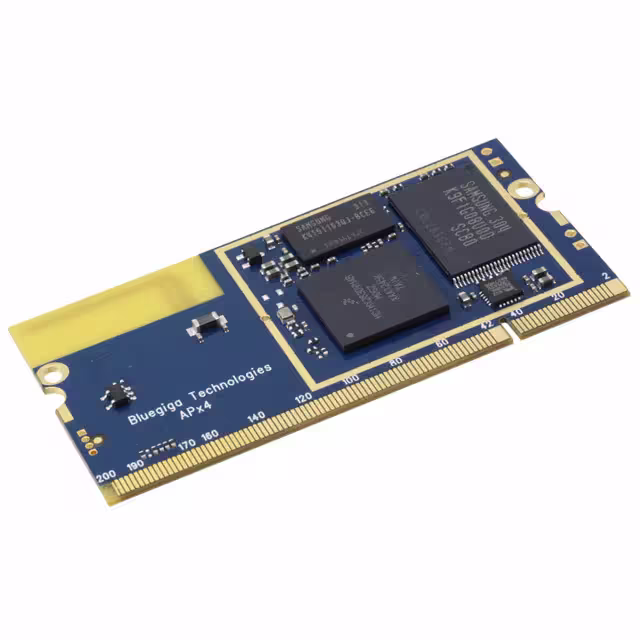

APX4-367CC-A-5.0RF TXRX MOD BT I CHIP CARD |
9,376 |
|
Datasheet |
- | Module | Box | Obsolete | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v4.0 | OFDM | 2.4GHz | 72.2Mbps | 15.6dBm | -97dBm | Ethernet, I2C, I2S, JTAG, SDIO, SPI, UART, USB | Integrated, Chip | - | 128MB Flash, 64MB RAM | 4.75V ~ 5.25V | - | - | Card Edge | -40°C ~ 85°C |
|
WT32-A-AI3RF TXRX MOD BLUETOOTH CHIP SMD |
8,680 |
|
Datasheet |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 2 | DQPSK, GFSK | 2.4GHz | 3Mbps | 7dbm | -86dBm | I2S, PIO, SPI, UART, USB | Integrated, Chip | BlueCore5 | - | 1.8V ~ 3.6V | 4.5mA | 4.5mA | Surface Mount | -30°C ~ 85°C |
|
|
WT41-A-AI5RF TXRX MOD BLUETOOTH CHIP SMD |
5,274 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 19dBm | -92dBm | PIO, SPI, UART, USB | Integrated, Chip | BlueCore4 | - | 3V ~ 3.6V | 52.6mA | 51.6mA ~ 120mA | Surface Mount | -40°C ~ 85°C |
|
WT11I-E-AI5RF TXRX MOD BLUETOOTHU.FL SMD |
6,334 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Obsolete | Not Verified | Bluetooth | Bluetooth v2.0 +EDR, Class 1 | - | 2.4GHz | 3Mbps | 17dBm | -86dBm | PIO, SPI, UART, USB | Antenna Not Included, U.FL | - | - | 2.7V ~ 3.6V | 39mA | 54mA ~ 128mA | Surface Mount | -40°C ~ 85°C |
.jpg)
|
BRAVO-T915RF TXRX MOD ISM<1GHZTHROUGH HOLE |
5,842 |
|
Datasheet |
BRAVO | Module | Bulk | Active | Not Verified | General ISM < 1GHz | - | - | 915MHz | 9.6kbps | 13dBm | -121dBm | - | Antenna Not Included | - | - | 1.8V ~ 3.6V | 24mA | 30mA | Through Hole | -40°C ~ 85°C |
