RF Transceiver ICs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Type | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate (Max) | Power - Output | Sensitivity | Memory Size | Serial Interfaces | GPIO | Voltage - Supply | Current - Receiving | Current - Transmitting | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SX1280IMLTRTIC RF TXRX 802.15.4 24QFN |
11,038 |
|
Datasheet |
LoRa™ | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | 802.15.4 | LoRa™ | GFSK | 2.4GHz | - | 12.5dBm | -132dBm | - | SPI, UART | - | 1.8V ~ 3.7V | 8.2mA | 24mA | -40°C ~ 85°C | - | - | 24-QFN (4x4) |
|
SI4460-C2A-GMRIC RF TXRX ISM<1GHZ 20QFN |
210,258 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | General ISM < 1GHz | - | 4GFSK, GFSK, GMSK, OOK | 142MHz ~ 1.05GHz | 1Mbps | 12.5dBm (Max) | -129dBm | - | SPI | 4 | 1.8V ~ 3.6V | 10.9mA ~ 13.7mA | 18mA ~ 24mA | -40°C ~ 85°C | - | - | 20-QFN (4x4) |
|

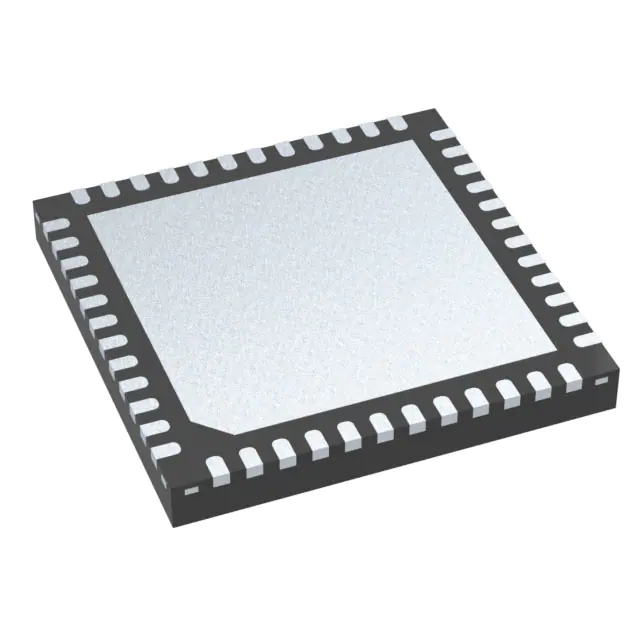

STM32WB55RGV6IC RF TXRX+MCU 802.15.4 68VFQFPN |
26,032 |
|
Datasheet |
STM32WB | 68-VFQFN Exposed Pad | Tray | Active | Not Verified | TxRx + MCU | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | GFSK | 2.405GHz ~ 2.48GHz | 2Mbps | 6dBm | -100dBm | 1MB Flash, 256kB SRAM | ADC, I2C, SPI, UART, USART, USB | 49 | 1.71V ~ 3.6V | 3.8mA ~ 7mA | 8.1mA ~ 13.1mA | -40°C ~ 85°C (TA) | - | - | 68-VFQFPN (8x8) |
|
|
STM32WB55RGV6TRIC RF TXRX+MCU 802.15.4 68VFQFPN |
9,472 |
|
Datasheet |
STM32WB | 68-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | GFSK | 2.405GHz ~ 2.48GHz | 2Mbps | 6dBm | -100dBm | 1MB Flash, 256kB SRAM | ADC, I2C, SPI, UART, USART, USB | 49 | 1.71V ~ 3.6V | 4.5mA ~ 7.9mA | 5.2mA ~ 12.7mA | -40°C ~ 85°C (TA) | - | - | 68-VFQFPN (8x8) |
|
ADF7242BCPZ-RLIC RF TXRX+MCU 802.15.4 32LFCSP |
11,594 |
|
Datasheet |
- | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | 802.15.4 | - | DSSS, GSK, GFSK, GMSK, MSK, O-QPSK | 2.4GHz | 2Mbps | 4.8dBm | -96dBm | 4kB ROM, 2.5kB RAM | SPI | 7 | 1.8V ~ 3.6V | 19mA | 16.5mA ~ 25mA | -40°C ~ 85°C | - | - | 32-LFCSP (5x5) |
|
SX1262IMLTRTIC RF TXRX ISM<1GHZ 24QFN |
21,328 |
|
Datasheet |
LoRa™ | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | General ISM < 1GHz | LoRaWAN | FSK, GFSK | 150MHz ~ 960MHz | 300kbps | 22dBm | -148dBm | - | SPI | - | 1.8V ~ 3.7V | 4.2mA ~ 10.1mA | 32mA ~ 118mA | -40°C ~ 85°C | - | - | 24-QFN (4x4) |
|
CC1020RSSRIC RF TXRX ISM<1GHZ 32QFN |
11,944 |
|
Datasheet |
- | 32-VQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | General ISM < 1GHz | - | FSK, GFSK, OOK | 402MHz ~ 470MHz, 804MHz ~ 960MHz | 153.6kBaud | 10dBm | -118dBm | - | SPI, UART | 1 | 2.3V ~ 3.6V | 19.9mA | 12.3mA ~ 27.1mA | -40°C ~ 85°C | - | - | 32-QFN (7x7) |
|
STM32WLE5CCU6IC RF TXRX+MCU 802.15.4 48UFQFPN |
1,522 |
|
Datasheet |
- | 48-UFQFN Exposed Pad | Tray | Active | Not Verified | TxRx + MCU | 802.15.4 | LoRaWAN 1.0, Sigfox | BPSK, GFSK, GMSK, FSK, MSK | 150MHz ~ 960MHz | 300kbps | 22dBm | -148dBm | 256kB Flash | ADC, GPIO, I2C, SPI, IrDA, UART, USART | 29 | 1.8V ~ 3.6V | 4.82mA | 21mA ~ 120mA | -40°C ~ 85°C (TA) | - | - | 48-UFQFPN (7x7) |
|
ATMEGA128RFA1-ZUIC RF TXRX+MCU 802.15.4 64QFN |
5,272 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tray | Active | Not Verified | TxRx + MCU | 802.15.4 | 6LoWPAN, Zigbee® | O-QPSK | 2.4GHz | 2Mbps | 3.5dBm | -100dBm | 128kB Flash, 4kB EEPROM, 16kB SRAM | I2C, JTAG, SPI, USART | 38 | 1.8V ~ 3.6V | 12mA ~ 12.5mA | 8mA ~ 14.5mA | -40°C ~ 85°C | - | - | 64-QFN (9x9) |
|
CC1125RHBTIC RF TXRX+MCU ISM<1GHZ 32VQFN |
1,560 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | General ISM < 1GHz | - | 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK | 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz | 200kbps | 16dBm | -129dBm | 4kB ROM, 256B RAM | SPI | 4 | 2V ~ 3.6V | 17mA ~ 27mA | 26mA ~ 56mA | -40°C ~ 85°C | - | - | 32-VQFN (5x5) |
|
STM32WB55VGY6TRIC RF TXRX+MCU 802.15.4 100WLCSP |
30,792 |
|
Datasheet |
STM32WB | 100-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | GFSK | 2.405GHz ~ 2.48GHz | 2Mbps | 6dBm | -100dBm | 1MB Flash, 256kB SRAM | ADC, I2C, SPI, UART, USART, USB | 72 | 1.71V ~ 3.6V | 4.5mA | 5.2mA | -40°C ~ 85°C (TA) | - | - | 100-WLCSP (4.4x4.38) |
|
SR1010AB-4Q28-TRIC RF TXRX 28QFN |
10,908 |
|
Datasheet |
SR1010 | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | - | Ultra Wideband (UWB) Impulse Radio | OOK | 3.1GHz ~ 5.8GHz | 20.48Mbps | 10dBm | -75dBm | - | SPI | - | 1.8V ~ 3.3V | 8mA | 2.4mA | -40°C ~ 85°C | - | - | 28-QFN (4x4) |
|
|
SR1020AB-4Q28-TRIC RF TXRX 28QFN |
5,636 |
|
Datasheet |
SR1020 | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | - | Ultra Wideband (UWB) Impulse Radio | OOK | 6GHz ~ 9.3GHz | 20.48Mbps | 10dBm | -75dBm | - | SPI | - | 1.8V ~ 3.3V | 8mA | 2.4mA | -40°C ~ 85°C | - | - | 28-QFN (4x4) |
|
WF200DRIC RF TXRX+MCU WIFI 32QFN |
2,298 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | WiFi | 802.11b/g/n | DSSS | 2.412GHz ~ 2.484GHz | 72.2Mbps | 17dBm | -96.7dBm | - | SDIO, SPI | - | 1.62V ~ 3.6V | 41.6mA ~ 47.6mA | 44.6mA ~ 108mA | -40°C ~ 105°C (TA) | - | - | 32-QFN (4x4) |
|
CC1100RTKRIC RF TXRX ISM<1GHZ 20QFN |
7,288 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Not Verified | TxRx Only | General ISM < 1GHz | - | 2FSK, ASK, GFSK, MSK, OOK | 300MHz ~ 348MHz, 400MHz ~ 464MHz, 800MHz ~ 928MHz | 500kBaud | 10dBm | -111dBm | - | SPI | - | 1.8V ~ 3.6V | 13.9mA ~ 15.9mA | 12.3mA ~ 31.1mA | -40°C ~ 85°C | - | - | 20-QFN (4x4) |
|
ADF7021-NBCPZIC RF TXRX ISM<1GHZ 48LFCSP |
494 |
|
Datasheet |
- | 48-WFQFN Exposed Pad, CSP | Tray | Active | Not Verified | TxRx Only | General ISM < 1GHz | - | 2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK | 80MHz ~ 650MHz, 842MHz ~ 916MHz | 24kbps | 13dBm | -130dBm | - | SPI, UART | - | 2.3V ~ 3.6V | 17.5mA ~ 26.4mA | 13.5mA ~ 32.3mA | -40°C ~ 85°C | - | - | 48-LFCSP (7x7) |
|
CC430F5137IRGZRIC RF TXRX+MCU ISM<1GHZ 48VQFN |
28,330 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx + MCU | General ISM < 1GHz | - | 2FSK, 2GFSK, ASK, MSK, OOK | 300MHz ~ 348MHz, 389MHz ~ 464MHz, 779MHz ~ 928MHz | 500kBaud | 13dBm | -117dBm | 32kB Flash, 4kB SRAM | I2C, IrDA, JTAG, SPI, UART | 30 | 2V ~ 3.6V | 15mA ~ 18.5mA | 15mA ~ 36mA | -40°C ~ 85°C | - | - | 48-VQFN (7x7) |
|
|
SX1261IMLTRTIC RF TXRX ISM<1GHZ 24QFN |
18,812 |
|
Datasheet |
LoRa™ | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | General ISM < 1GHz | LoRaWAN | FSK, GFSK | 150MHz ~ 960MHz | 300kbps | 15dBm | -148dBm | - | SPI | - | 1.8V ~ 3.7V | 4.2mA ~ 10.1mA | 15mA ~ 60mA | -40°C ~ 85°C | - | - | 24-QFN (4x4) |
|
|
SI4463-C2A-GMRIC RF TXRX ISM<1GHZ 20QFN |
226,458 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | TxRx Only | General ISM < 1GHz | - | 4GFSK, GFSK, GMSK, OOK | 142MHz ~ 1.05GHz | 1Mbps | 20dBm (Max) | -129dBm | - | SPI | 4 | 1.8V ~ 3.6V | 10.9mA ~ 13.7mA | 44.5mA ~ 88mA | -40°C ~ 85°C | - | - | 20-QFN (4x4) |
|
|
SI4463-B1B-FMRIC RF TXRX ISM<1GHZ 20QFN |
92,740 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Not Verified | TxRx Only | General ISM < 1GHz | - | 4GFSK, GFSK, GMSK, OOK | 119MHz ~ 1.05GHz | 1Mbps | 20dBm | -126dBm | - | SPI | 4 | 1.8V ~ 3.6V | 10.7mA ~ 13.7mA | 70mA ~ 85mA | -40°C ~ 85°C | - | - | 20-QFN (4x4) |
