RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MASWCC0010IC RF SWITCH SP4T 4GHZ 36QFN |
5,212 |
|
Datasheet |
- | 36-VFQFN Exposed Pad, CSP | Tube | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 4GHz | 38dB (min) | 2.3dB (max) | 4GHz | 27dBm | 40dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 36-PQFN, CSP (4x7) |
|

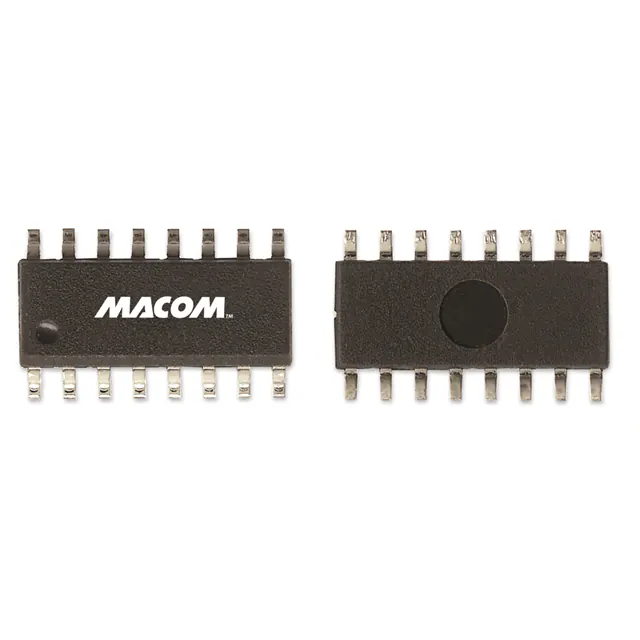

MASW-007072-000100IC RF SWITCH SPDT 3GHZ 16SOIC |
4,966 |
|
- |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 3GHz | 24dB | 1.2dB | 3GHz | 30dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
MASW-007076-000100IC RF SWITCH SPST 3GHZ 24SOIC |
7,194 |
|
- |
- | 24-SOIC (0.295", 7.50mm Width) | Bulk | Active | General Purpose | Absorptive | SPST | DC ~ 3GHz | 42dB | 1.8dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
|
M3SWA2-34DR+MMIC SPDT SWITCH, DC - 30GHZ |
3,072 |
|
- |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Radar | Absorptive | SPDT | 0Hz ~ 30GHz | 45dB | 2.2dB | 30GHz | 27.8dBm | 52dBm | DC Blocked | 50Ohm | 3.3V ~ 3.6V | -55°C ~ 105°C | - | - | Surface Mount | 16-QFN (3x3) |
|
MASW-007074-000100IC RF SWITCH SP3T 3GHZ 24SOIC |
7,778 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | General Purpose | Absorptive | SP3T | 0Hz ~ 3GHz | 32dB | 2dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
HMC344LP3ETRIC RF SWITCH SP4T 8GHZ 16QFN |
3,676 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | WLAN | Absorptive | SP4T | 0Hz ~ 8GHz | 40dB | 1.8dB | 6GHz | 21dBm | 40dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
MMS008PP3IC RF SWITCH SP4T 8GHZ DIE |
9,052 |
|
Datasheet |
- | Die | Tray | Active | Radar | Absorptive | SP4T | 0Hz ~ 8GHz | 43dB | 1.7dB | 8GHz | 29dBm | 45dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
|
MMS008AAIC RF SWITCH SP4T 8GHZ DIE |
8,226 |
|
- |
- | Die | Bulk | Active | General Purpose | - | SP4T | 0Hz ~ 8GHz | 45dB | 2.2dB | 8GHz | 28dBm | 46dBm | - | - | - | -40°C ~ 85°C | - | - | - | Die |
|
|
MMS008PP3/TRIC RF SWITCH SP4T 8GHZ DIE |
3,978 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Active | Radar | Absorptive | SP4T | 0Hz ~ 8GHz | 43dB | 1.7dB | 8GHz | 29dBm | 45dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
ADRF5160BCPZ-R7IC RF SWITCH SPDT 4GHZ 32LFCSP |
9,214 |
|
Datasheet |
- | 32-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 700MHz ~ 4GHz | 35dB | 0.9dB | 4GHz | 47dBm | 70dBm | - | 50Ohm | 4.5V ~ 5.4V | -40°C ~ 105°C | - | - | Surface Mount | 32-LFCSP (5x5) |
|
MASW-007071-000100IC RF SWITCH SPDT 4GHZ 32QFN |
8,138 |
|
- |
- | 32-PowerVFQFN | Tube | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 4GHz | 30dB (min) | 1.8dB (max) | 4GHz | 29dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-PQFN (4x6) |
|
HMC1084LC4TR-R5IC RF SWITCH SP4T 30GHZ 24QFN |
3,050 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Reflective | SP4T | 23GHz ~ 30GHz | 26dB | 3.5dB | 30GHz | - | 47dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|

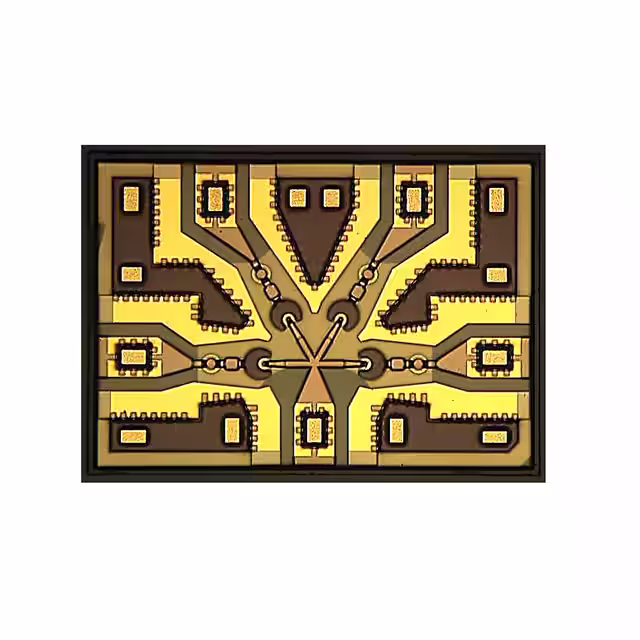

MASW-004103-13650PIC RF SWITCH SP4T 20GHZ |
4,834 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | - | - | SP4T | 50MHz ~ 20GHz | 32dB | 1.2dB | 20GHz | - | 64dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | - |
|
|
MASW-011053-47300GIC RF SWITCH SP3T 18GHZ DIE |
5,020 |
|
- |
- | Die | Bulk | Active | ISM, Radar | - | SP3T | 2GHz ~ 18GHz | 47dB | 1.1dB | 18GHz | - | 45dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | Surface Mount | Die |
|
|
ADGM1003BCCZ-RL7IC RF SWITCH SPDT 16GHZ 24LGA |
8,602 |
|
Datasheet |
ADGM1003 | 24-VFLGA Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SPDT | DC ~ 16GHz | 24dB | 0.7dB | 16GHz | - | - | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 24-LGA (5x4) |
|
|
MMS006AAIC RF SWITCH SPDT 20GHZ DIE |
9,950 |
|
Datasheet |
- | Die | Tray | Active | Radar | Absorptive | SPDT | 0Hz ~ 20GHz | 40dB | 2dB (max) | 20GHz | 24dBm | 42dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
MASW-004103-13655PIC RF SWITCH SP4T 20GHZ |
5,944 |
|
- |
- | 5-SMD, No Lead | Tape & Reel (TR) | Active | General Purpose | - | SP4T | 50MHz ~ 20GHz | 32dB | 1.2dB | 20GHz | - | - | - | 50Ohm | -10V | -65°C ~ 125°C | - | - | - | - |
|
|
MASW-011087-DIEIC RF SWITCH SP4T 38GHZ CHIP |
5,872 |
|
- |
- | Die | Bulk | Active | Radar | Reflective | SP4T | 14GHz ~ 38GHz | 31dB | 0.9dB | 35GHz | - | 43dBm | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | Chip |
|
|
MASW-011052-14220WIC RF SWITCH SPDT 18GHZ DIE |
9,532 |
|
- |
HMIC™ | Die | Tray | Obsolete | General Purpose | - | SPDT | 2GHz ~ 18GHz | 48dB | 1.15dB | 18GHz | - | 42.5dBm | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
|
CMD273P3DC-12 GHZ DPDT |
4,044 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | DPDT | 0Hz ~ 12GHz | 35dB | 1.9dB | 12GHz | - | 40dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
