RF Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BGS13SN8E6327XTSA1IC RF SWITCH SP3T 6GHZ TSNP8-1 |
25,772 |
|
Datasheet |
- | 8-XFQFN | Tape & Reel (TR) | Active | General Purpose | - | SP3T | 100MHz ~ 6GHz | 15dB | 0.65dB | 5.725GHz | - | - | - | 50Ohm | 1.8V ~ 3.4V | -40°C ~ 85°C | - | - | Surface Mount | PG-TSNP-8-1 |
|
BGS12WN6E6327XTSA1IC RF SWITCH SPDT 9GHZ TSNP6-10 |
77,236 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | WLAN | - | SPDT | 50MHz ~ 9GHz | 22dB | 1.12dB | 9GHz | - | 70dBm | DC Blocked | 50Ohm | 1.65V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-TSNP-6-10 |
|
BGS12P2L6E6327XTSA1IC RF SWITCH SPDT 6GHZ TSLP6-4 |
39,418 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | GSM, LTE, W-CDMA | - | SPDT | 50MHz ~ 6GHz | 27dB | 0.51dB | 5.925GHz | - | 74dBm | - | 50Ohm | 1.65V ~ 3.4V | -40°C ~ 85°C (TA) | - | - | Surface Mount | PG-TSLP-6-4 |
|
BGS12PN10E6327XTSA1IC RF SWITCH SPDT 6GHZ TSNP10-1 |
11,050 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | SPDT | 500MHz ~ 6GHz | 20dB | 0.6dB | 6GHz | - | - | - | 50Ohm | 1.8V ~ 3.6V | -30°C ~ 85°C | - | - | Surface Mount | PG-TSNP-10-1 |
|
NJG1801K75-TE1IC RF SWITCH SPDT 6GHZ 6DFN |
3,580 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 802.11a/b/g/n/ac | - | SPDT | 6GHz | 28dB | 0.45dB | 2.5GHz, 5.9GHz | 31dBm | - | - | 50Ohm | 1.8V ~ 5V | -40°C ~ 105°C | - | - | Surface Mount | 6-DFN (1x1) |
|
|
BGS14PN10E6327XTSA1IC RF SWITCH SP4T 6GHZ TSNP10-1 |
17,598 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | - | - | SP4T | 500MHz ~ 6GHz | 18dB | 1.2dB | 6GHz | - | 73dBm | - | 50Ohm | 1.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | PG-TSNP-10-1 |
|
SKY13348-374LFIC RF SWITCH SPDT 6GHZ 6MLPD |
316,820 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 802.16 WiMAX | Absorptive | SPDT | 500MHz ~ 6GHz | 24dB | 1dB | 5.85GHz | 37dBm | 57dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 6-MLPD (1.5x1.5) |
|
4259-63IC RF SWITCH SPDT 3GHZ SC70-6 |
281,306 |
|
Datasheet |
UltraCMOS® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 10MHz ~ 3GHz | 20dB | 0.5dB | 2GHz | 29dBm | 55dBm | Single/Dual Line Control | 50Ohm | 1.8V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
PE42421SCAA-ZIC RF SWITCH SPDT 3GHZ SC70-6 |
45,298 |
|
Datasheet |
UltraCMOS® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 10MHz ~ 3GHz | 20dB | 0.5dB | 2GHz | 30.5dBm | 55dBm | Single/Dual Line Control | 50Ohm | 1.8V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|

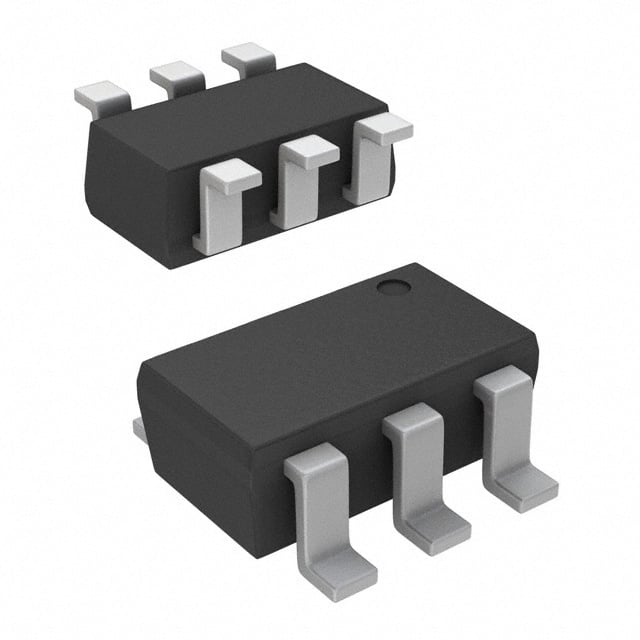

AS179-92LFIC RF SWITCH SPDT 3GHZ SC70-6 |
684,586 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 802.11b, g, Bluetooth, WLAN | Reflective | SPDT | 20MHz ~ 3GHz | 23dB | 0.4dB | 3GHz | 34dBm | 50dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
SKY13351-378LFIC RF SWITCH SPDT 6GHZ 6MLPD |
117,030 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 802.11/WiFi, WLAN | Reflective | SPDT | 20MHz ~ 6GHz | 26dB | 0.5dB | 6GHz | - | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 6-MLPD (1x1) |
|
|
AS215-92LFIC RF SWITCH SPDT 3GHZ SC70-6 |
65,396 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Bluetooth | - | SPDT | 500MHz ~ 3GHz | 20dB | 0.5dB | 3GHz | 27dBm | 40dBm | - | 50Ohm | 1.8V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
AS213-92LFIC RF SWITCH SPDT 3GHZ SC70-6 |
438,098 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Bluetooth, WLAN | Reflective | SPDT | 100MHz ~ 3GHz | 19dB | 0.5dB | 3GHz | 27dBm | 40dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
PE42359SCAA-ZIC RF SWITCH SPDT 3GHZ SC70-6 |
34,500 |
|
Datasheet |
UltraCMOS® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 10MHz ~ 3GHz | 13dB | 0.5dB | 3GHz, 2GHz | 30.5dBm | 55dBm | Single/Dual Line Control | 50Ohm | 1.8V ~ 3.3V | -40°C ~ 105°C | - | - | Surface Mount | SC-70-6 |
|
4257-52IC RF SWITCH SPDT 3GHZ 20QFN |
41,658 |
|
Datasheet |
UltraCMOS® | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 3GHz | 44dB | 1.2dB | 3GHz | 31dBm | 55dBm | - | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 20-QFN (4x4) |
|
SKY13489-001IC RF SWITCH SPDT 2.7GHZ 6WLCSP |
57,528 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | GSM, LTE, W-CDMA | Reflective | SPDT | 700MHz ~ 2.7GHz | 32dB | 0.2dB | 2GHz, 2.7GHz | 39dBm | - | - | - | 4.8V | - | - | - | Surface Mount | 6-WLCSP (1.14x0.74) |
|
PE4251MLI-ZIC RF SWITCH SPDT 3GHZ 8MSOP |
43,332 |
|
Datasheet |
UltraCMOS®, HaRP™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Absorptive | SPDT | 10MHz ~ 3GHz | 43dB | 0.75dB | 3GHz | 30.5dBm | 59dBm | DC Blocked, Single/Dual Line Control | 50Ohm | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP-EP |
|
PE4250MLI-ZIC RF SWITCH SPDT 3GHZ 8MSOP |
6,060 |
|
Datasheet |
UltraCMOS®, HaRP™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 10MHz ~ 3GHz | 40dB | 0.75dB | 3GHz | 30.5dBm | 59dBm | DC Blocked, Single/Dual Line Control | 50Ohm | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
SKY13585-679LFIC RF SWITCH SPDT 6GHZ 6MLPD |
450,570 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 802.11a/b/g/n/ac | Reflective | SPDT | 1GHz ~ 6GHz | 38dB | 0.5dB | 2.5GHz | - | 56dBm | - | 50Ohm | 1.8V ~ 3.3V | -40°C ~ 90°C | - | - | Surface Mount | 6-MLPD (1x1) |
|
PE42440MLBB-ZIC RF SWITCH SP4T 3GHZ 16QFN |
27,952 |
|
Datasheet |
UltraCMOS®, HaRP™ | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SP4T | 50MHz ~ 3GHz | 22dB | 0.85dB | 3GHz | 41.5dBm | 66dBm | DC Blocked | 50Ohm | 2.65V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
