RF Mixers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

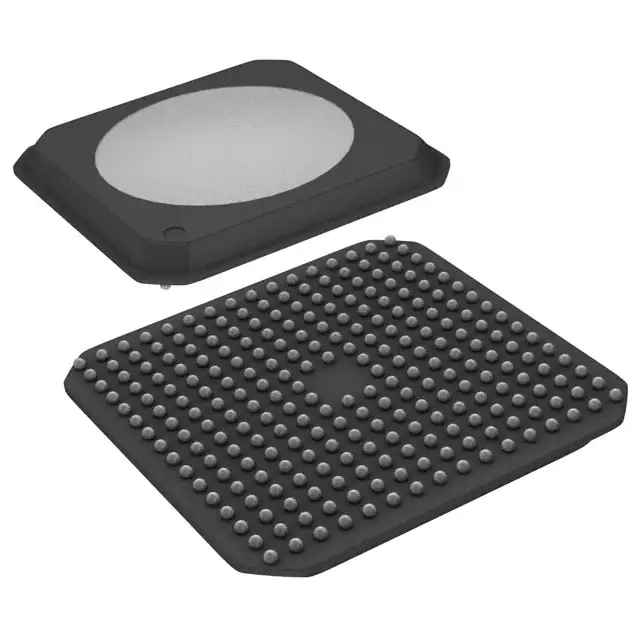

GC5016-PBIC MIXER UP/DOWN CONVRT 252BGA |
2,634 |
|
- |
GC5016 | 252-BGA | Tray | Obsolete | Cellular, CDMA2000, W-CDMA | - | 4 | - | - | Up/Down Converter | - | - | Surface Mount | 252-BGA (17x17) |
|
HMC787ALC3BTR-R5DOUBLE-BALANCED - MIXER, 3-11GHZ |
9,938 |
|
Datasheet |
- | 12-CLCC Exposed Pad | Tape & Reel (TR) | Active | - | 3GHz ~ 10GHz | 1 | - | 9dB | - | - | - | Surface Mount | 12-CLCC (2.9x2.9) |
|
|
HMC338LC3BTRDOUBLE BALANCED MIXER, GAAS |
4,628 |
|
Datasheet |
- | 12-VFQFN Exposed Pad | Bulk | Active | VSAT | 24GHz ~ 34GHz | 1 | - | - | - | 31mA | 3V ~ 4V | Surface Mount | 12-SMT (3x3) |
|
ADMV4420ACPZ-R2K-BAND RX WITH PLL |
7,784 |
|
Datasheet |
- | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | General Purpose | 16.95GHz ~ 22.05GHz | 1 | 36dB | 7dB | Down Converter | - | 4.75V ~ 5.25V | Surface Mount | 32-LFCSP (5x5) |
|
HMC265IC MIXER SUB-HARMONIC DIE |
200 |
|
Datasheet |
- | Die | Bulk | Active | General Purpose | 20GHz ~ 32GHz | 1 | - | 10dB | - | 28mA | 3V ~ 4V | Surface Mount | Die |
|
MAMX-011044-TR0500MIXER,IMAGE-REJECT,2.5-9GHZ,4MM |
1,986 |
|
- |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Radar | 2.5GHz ~ 9GHz | 2 | - | - | Up/Down Converter | - | - | Surface Mount | 24-AQFN (4x4) |
|
TMC2249AKEC2MIXER, 12-BIT, CMOS, PQFP120 |
1,856 |
|
Datasheet |
- | 120-BQFP | Bulk | Active | - | 60MHz | 3 | - | - | Mixer/Detector | - | 4.75V ~ 5.25V | - | 120-MQFP (28x28) |
|

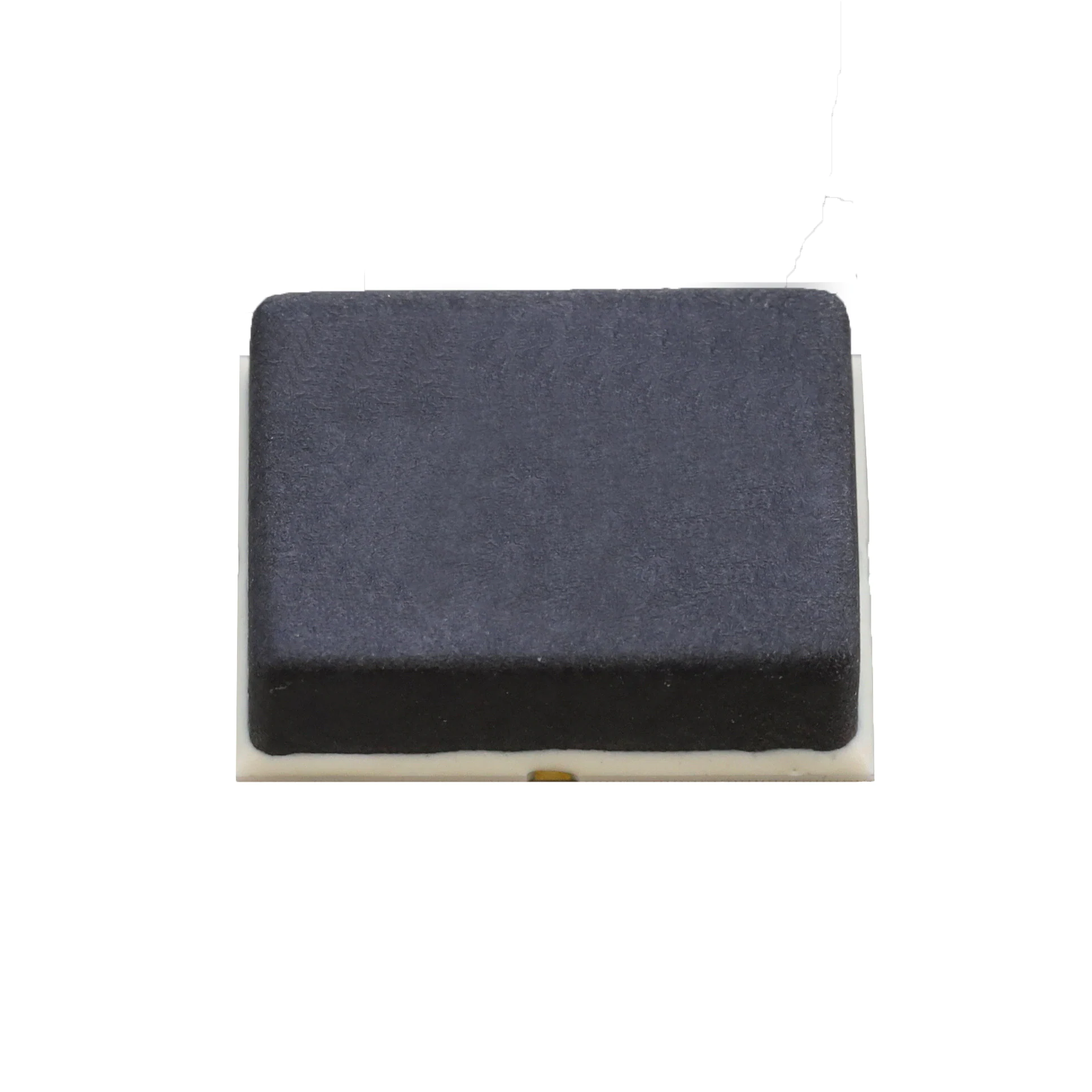

CSM5THMIXER |
3,210 |
|
Datasheet |
- | 3-SMD, No Lead | Tray | Active | General Purpose | 50MHz ~ 4.8GHz | 1 | - | 8.8dB | Down Converter | - | - | - | SMD |
|
HMC-MDB218IC MMIC IQ MIXER DIE |
7,112 |
|
Datasheet |
- | Die | Bulk | Active | Radar | 54GHz ~ 64GHz | 2 | - | - | Up Converter | - | - | Surface Mount | Die |
|
|
HMC329ALC3BTR-R5IC MIXER MIXER 24-32GHZ 12SMD |
1,800 |
|
Datasheet |
- | 12-CLCC Exposed Pad | Tape & Reel (TR) | Active | - | 25GHz ~ 40GHz | 1 | - | 9.5dB | - | - | - | Surface Mount | 12-CLCC (2.9x2.9) |
|
HMC819220 TO 42GHZ I/Q MIXER |
9,500 |
|
Datasheet |
- | 25-LFLGA Exposed Pad | Tray | Active | Radar | 20GHz ~ 42GHz | 2 | - | - | - | - | - | Surface Mount | 25-LGA (4x4) |
|
HMC8193LC4TR-R5IC MMIC IQ MIXER 24SMD |
2,208 |
|
Datasheet |
- | 24-CLCC Exposed Pad | Tape & Reel (TR) | Active | - | 2.5GHz ~ 8.5GHz | 2 | - | - | - | - | - | Surface Mount | 24-CLCC (3.9x3.9) |
|
|
HMC774ALC3BTRIC MMIC MIXER GAAS 12SMD |
3,704 |
|
Datasheet |
- | 12-CLCC Exposed Pad | Tape & Reel (TR) | Active | VSAT | 7GHz ~ 34GHz | 1 | - | - | - | - | - | Surface Mount | 12-CLCC (2.9x2.9) |
|
HMC265LM3TRIC MMIC MIXER 20-31GHZ 6SMD |
9,898 |
|
Datasheet |
- | 6-TQFN Exposed Pad | Tape & Reel (TR) | Active | General Purpose | 20GHz ~ 31GHz | 1 | 4dB | 13dB | Down Converter | 50mA | 3V ~ 4V | Surface Mount | 6-SMT (5.08x5.08) |
|
|
HMC8192LGTR15 - 45 GHZ I/Q MIXER |
4,376 |
|
Datasheet |
- | 25-LFLGA Exposed Pad | Tape & Reel (TR) | Active | Radar | 20GHz ~ 42GHz | 2 | - | 12dB | Up/Down Converter | - | - | Surface Mount | 25-LGA-CAV (4x4) |
|
MD-123-PINMIXER,DB,RF |
7,924 |
|
Datasheet |
- | FP-2 | Tray | Active | General Purpose | 10MHz ~ 3GHz | 2 | - | - | - | - | - | Surface Mount | FP-2 |
|
HSP50216KIBASEBAND CIRCUIT, PBGA196 |
514 |
|
Datasheet |
HSP50216 | 196-LFBGA | Bag | Obsolete | - | - | - | - | - | - | - | - | Surface Mount | 196-BGA (12x12) |
|
|
HMC264LM3TRIC MIXER SUB-HARMONIC CERAMIC |
6,188 |
|
Datasheet |
- | 6-TQFN Exposed Pad | Tape & Reel (TR) | Active | - | 20GHz ~ 30GHz | 1 | - | 9dB | - | 28mA | 3V ~ 4V | Surface Mount | 6-SMT (5.08x5.08) |
|
|
HSP50214BVIPROGRAMMABLE DOWN-CONVERTER FOR |
1,836 |
|
Datasheet |
HSP50214 | 120-BQFP | Bulk | Active | - | - | - | - | - | - | - | - | Surface Mount | 120-QFP (28x28) |
|
HMC689LP4EIC MMIC MIXER BICMOS 24-QFN |
7,816 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Strip | Obsolete | LTE, WiMax | 2GHz ~ 2.7GHz | 1 | - | 7.5dB | Up/Down Converter | 152mA | 4.75V ~ 5.25V | Surface Mount | 24-QFN (4x4) |
