RF Directional Coupler
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R432431000COUPLER: SMA 1-2GHZ 3DB |
9,264 |
|
Datasheet |
- | Bulk | Active | Standard | 1GHz ~ 2GHz | 3dB | General Purpose | 0.3dB | 100W | 25dB | - | - |
|
SMW19EC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
7,116 |
|
Datasheet |
- | Bag | Active | Standard | 40GHz ~ 60GHz | 20 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
SMW19EC001-10WG COUPLER WR-19 40-60 GHZ 10 DB |
5,788 |
|
Datasheet |
- | Bag | Active | Standard | 40GHz ~ 60GHz | 10 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
HH-107-SMAHYBRID,BROAD-BAND,180DEG |
5,592 |
|
- |
- | Bulk | Active | Standard | 2MHz ~ 200MHz | - | General Purpose | 1dB | 1W | 35dB | - | Module |
|

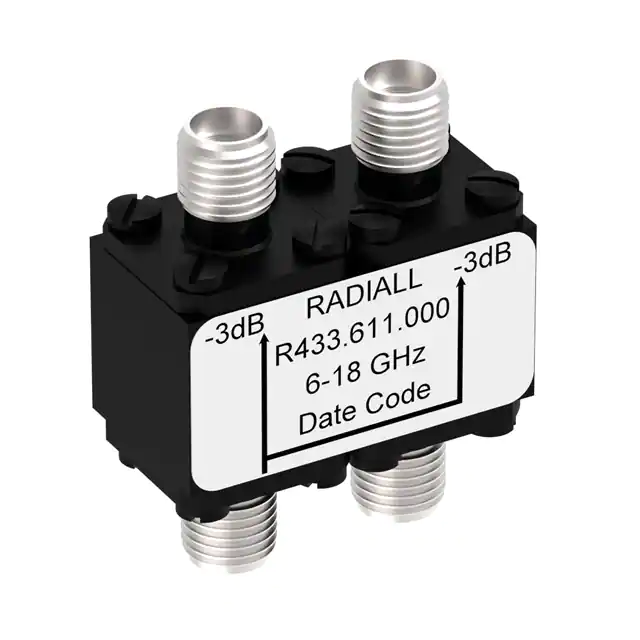

R433611000COUPLER: SMA 6-18GHZ 3DB |
8,596 |
|
Datasheet |
- | Bulk | Active | Standard | 6GHz ~ 18GHz | 3dB | General Purpose | 0.6dB | 30W | 16dB | - | - |
|
R433623000COUPLER: SMA 3.7-8.3GHZ 10DB FLA |
8,204 |
|
Datasheet |
- | Bulk | Active | Standard | 3.7GHz ~ 8.3GHz | 10dB | General Purpose | 1dB | 50W | - | - | - |
|
R432374000COUPLER: N 0.5-1GHZ 20DB |
5,230 |
|
Datasheet |
- | Bulk | Active | Standard | 500MHz ~ 1GHz | 20 ± 0.3dB | General Purpose | 0.4dB | 300W | - | - | - |
|
|
FMCP1146-30COUPLER 0.5-1 GHZ 500 W TYPE N |
7,544 |
|
Datasheet |
- | Bag | Active | Standard | 500MHz ~ 1GHz | 30 ± 0.8dB | General Purpose | 0.1dB | - | - | - | - |
|
|
FMCP1154HYBRID SMA 1.4MHZ-6GHZ 30 W |
4,032 |
|
Datasheet |
- | Bag | Active | Standard | 1.4GHz ~ 6GHz | 3dB | General Purpose | 1.2dB | - | 30dB | - | Module |
|
|
2020-4018-06COUPLER,DIRECTIONAL, |
3,526 |
|
- |
2020 | Bulk | Active | Standard | 7GHz ~ 12.4GHz | 6 ± 1dB | General Purpose | 0.4dB | 50W | - | - | - |
|
R433524000COUPLER: SMA 1.7-4.2GHZ 20DB FLA |
3,536 |
|
Datasheet |
- | Bulk | Active | Standard | 1.7GHz ~ 4.2GHz | 20 ± 0.8dB | General Purpose | 0.4dB | 50W | - | - | - |
|
|
FMWCP1083-50WG COUPLER WR-112 6.57-9.99 GHZ |
5,104 |
|
Datasheet |
- | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 50 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
FMWCP1083-30WG COUPLER WR-112 6.57-9.99 GHZ |
4,914 |
|
Datasheet |
- | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 30 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
ZCDC10-06263-S+DIR COUP SMA-F 6-26.5GHZ |
7,262 |
|
- |
- | Tray | Active | Standard | 6GHz ~ 26.5GHz | 10 ± 1.5dB | Cellular | 1dB | 20W | 29dB | 28dB | - |
|
|
FMWCP1080-20WG COUPLER WR-15 50-75 GHZ 20 DB |
3,564 |
|
Datasheet |
- | Bag | Active | Standard | 50GHz ~ 75GHz | 20 ± 1dB | General Purpose | 1dB | - | - | - | Module |
|
|
SMW19HC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
2,036 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
SH7223HYBRID SMA 2MHZ-18GHZ 50 W |
5,492 |
|
Datasheet |
- | Bag | Active | Standard | 2GHz ~ 18GHz | 3dB | General Purpose | - | - | 15dB | - | Module |
|
|
MC0626-10COUPLER 6-26.5 GHZ 10 W 2.92MM |
3,350 |
|
Datasheet |
- | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
FMWCP1086S-40WG COUPLER WR-62 11.9-18 GHZ 40 |
6,276 |
|
Datasheet |
- | Bag | Active | Standard | 11.9GHz ~ 18GHz | 40 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
|
|
FMWCP1086S-30WG COUPLER WR-62 11.9-18 GHZ 30 |
3,328 |
|
Datasheet |
- | Bag | Active | Standard | 11.9GHz ~ 18GHz | 30 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
