RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A101IC RF AMP GPS 3MHZ-120MHZ TO8B |
3,944 |
|
Datasheet |
A101 | TO-8 Style, 4 Lead | Tray | Active | 3MHz ~ 120MHz | 23dBm | 17dB | 3dB | General Purpose | 12V | 105mA | 3MHz ~ 120MHz | - | - | Through Hole | TO-8B |
|

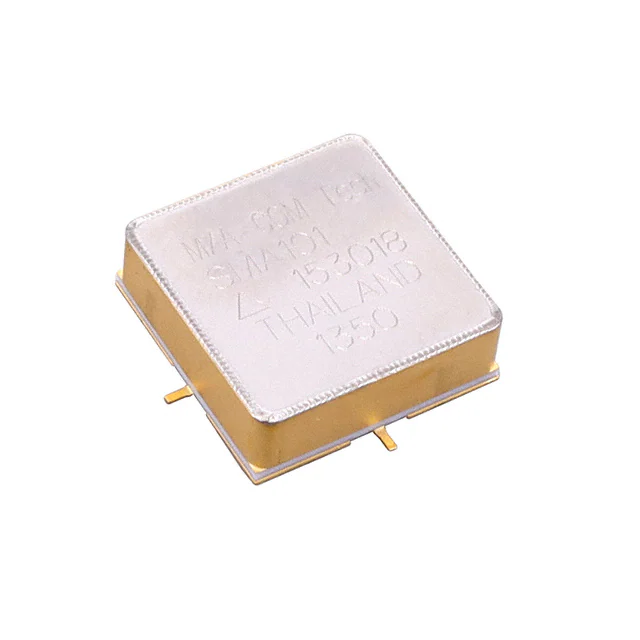

SMA101IC RF AMP GPS 3MHZ-120MHZ SMD |
7,146 |
|
Datasheet |
SMA101 | 4-SMD Module | Tray | Active | 3MHz ~ 120MHz | 23dBm | 17dB | 3dB | General Purpose | 12V | 105mA | 3MHz ~ 120MHz | - | - | - | - |
|
HMC-AUH317-SXIC AMP 802.11/WIFI 81-86GHZ DIE |
5,894 |
|
Datasheet |
- | Die | Tray | Obsolete | 81GHz ~ 86GHz | 17.5dBm | 22dB | - | 802.11/WiFi, WLAN | 4V | 160mA | 81GHz ~ 86GHz | - | - | Surface Mount | Die |
|
ADPA1107ACPZN-R7IC AMP GPS 4.8GHZ-6GHZ 40LFCSP |
6,038 |
|
Datasheet |
- | 40-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | 4.8GHz ~ 6GHz | - | 29.5dB | - | General Purpose | 28V | 350mA | 5.4GHz ~ 6GHz | - | - | Surface Mount | 40-LFCSP-WQ (6x6) |
|
FMAM1065LOWNOISEAMP 10MHZ-0.8GHZ P1DB SM |
2,508 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | 10MHz ~ 800MHz | 17dBm | 60dB | 2.1dB | General Purpose | 11V ~ 15V | 160mA | - | - | - | Chassis Mount | - |
|
|
SMA57IC RF AMP GPS 5MHZ-600MHZ SMD |
8,426 |
|
Datasheet |
SMA57 | 4-SMD Module | Tray | Active | 5MHz ~ 600MHz | 14dBm | 14.7dB | 4.8dB | General Purpose | 15V | 44mA | 5MHz ~ 600MHz | - | - | - | - |
|
HMC463LH250TRIC RF AMP VSAT 2GHZ-20GHZ 12CLCC |
8,604 |
|
Datasheet |
- | 12-CLCC Exposed Pad | Tape & Reel (TR) | Active | 2GHz ~ 20GHz | 19dBm | 14.5dB | 4dB | VSAT | 5V | 60mA | 2GHz ~ 20GHz | - | - | Surface Mount | 12-CLCC (6.35x6.35) |
|
SMRA66IC RF AMP GPS 5MHZ-1GHZ |
7,750 |
|
Datasheet |
SMRA66 | 4-SMD Module | Tray | Active | 5MHz ~ 1GHz | 15.5dBm | 37dB | 3.5dB | General Purpose | 15V | 81mA | 5MHz ~ 1GHz | - | - | - | - |
|
HMC1087F10TRIC AMP RADAR 2GHZ-20GHZ 10CLCC |
2,934 |
|
Datasheet |
- | 10-CLCC | Tray | Obsolete | 2GHz ~ 20GHz | - | 11dB | - | Radar | 28V | 850mA | 2GHz ~ 20GHz | - | - | Surface Mount | 10-CLCC |
|
|
PAW1001AMPLIFIER, RF |
5,420 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RA89IC RF AMP GPS 3MHZ-700MHZ TO8B |
8,304 |
|
Datasheet |
RA89 | TO-8 Style, 4 Lead | Tray | Active | 3MHz ~ 700MHz | 21.5dBm | 26.5dB | 3.7dB | General Purpose | 15V | 130mA | 3MHz ~ 700MHz | - | - | Through Hole | TO-8B |
|
|
PA38-2IC RF AMP GPS 200MHZ-2.8GHZ TO8 |
7,256 |
|
Datasheet |
PA38-2 | TO-8 Style, 4 Lead | Tray | Active | 200MHz ~ 2.8GHz | 23.5dBm | 28.5dB | 4.5dB | General Purpose | 15V | 150mA | 200MHz ~ 2.8GHz | - | - | - | TO-8 |
|
|
CMD1840.5 - 20 GHZ POWER AMPLIFIER |
9,370 |
|
Datasheet |
- | Die | Tray | Active | 500MHz ~ 20GHz | 34.5dBm | 13dB | - | General Purpose | 28V | 700mA | 500MHz ~ 12GHz | - | - | Surface Mount | Die |
|
|
RA36IC RF AMP GPS 50MHZ-2.1GHZ TO8B |
7,086 |
|
Datasheet |
RA36 | TO-8 Style, 4 Lead | Tray | Active | 50MHz ~ 2.1GHz | 13dBm | 24dB | 5.5dB | General Purpose | 15V | 76mA | 50MHz ~ 2.1GHz | - | - | Through Hole | TO-8B |
|
|
A411IC RF AMP GPS 5MHZ-450MHZ TO8 |
5,322 |
|
Datasheet |
A411 | TO-8 Style, 4 Lead | Tray | Active | 5MHz ~ 450MHz | 10dBm | 15.8dB | 3dB | General Purpose | 15V | 16mA | 5MHz ~ 450MHz | - | - | - | TO-8 |
|
|
PA48IC RF AMP GPS 800MHZ-4.2GHZ TO8B |
3,350 |
|
Datasheet |
PA48 | TO-8 Style, 4 Lead | Tray | Active | 800MHz ~ 4.2GHz | 24dBm | 16dB | 5.5dB | General Purpose | 15V | 225mA | 800MHz ~ 4.2GHz | - | - | Through Hole | TO-8B |
|
|
CMPA1D1E030D30W, GAN MMIC POWER AMPLIFIER, 4 |
6,782 |
|
- |
- | Die | Tray | Active | 13.75GHz ~ 14.5GHz | - | 25dB | - | General Purpose | 40V | - | 14.5GHz | - | - | Surface Mount | Die |
|
|
A36-2IC RF AMP GPS 100MHZ-2.7GHZ TO8 |
5,864 |
|
Datasheet |
A36-2 | TO-8 Style, 4 Lead | Tray | Active | 100MHz ~ 2.7GHz | 14dBm | 15dB | 7dB | General Purpose | 15V | 63mA | 100MHz ~ 2.7GHz | - | - | Through Hole | TO-8 |
|
|
QPA1006D10.7-12.7 GHZ 35W PA DIE |
6,976 |
|
Datasheet |
- | Die | Tray | Active | 10.7GHz ~ 12.7GHz | - | 21.6dB | - | Radar | 20V | 1.2A | 10.7GHz | - | - | Surface Mount | Die |
|
|
QPA1314T13.75-14.5GHZ, 55W PA DOT |
7,288 |
|
Datasheet |
- | Die | Tray | Active | 13.75GHz ~ 14.5GHz | - | 29dB | - | General Purpose | 24V | 512mA | 12.75GHz ~ 13.75GHz | - | - | Surface Mount | Die |
