Resonators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWSZT-3.58MGD-T4CERAMIC RES 3.5800MHZ SMD |
4,742 |
|
Datasheet |
AWSZT-MGD | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.5% | ±0.3% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSZT-4.00MGD-T4CERAMIC RES 4.0000MHZ SMD |
18,624 |
|
Datasheet |
AWSZT-MGD | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.5% | ±0.3% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSZT-6.00MGD-T4CERAMIC RES 6.0000MHZ SMD |
10,894 |
|
Datasheet |
AWSZT-MGD | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 6 MHz | ±0.5% | ±0.3% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
AWSZT-8.00MXD-TCERAMIC RES 8.0000MHZ SMD |
10,604 |
|
Datasheet |
AWSZT-MXD | 1916 (4741 Metric) | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.5% | ±0.3% | - | - | 40 Ohms | -20°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | 0.055" (1.40mm) |
|
PBRV2.00HR50Y000CERAMIC RES 2.0000MHZ 30PF SMD |
16,336 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|

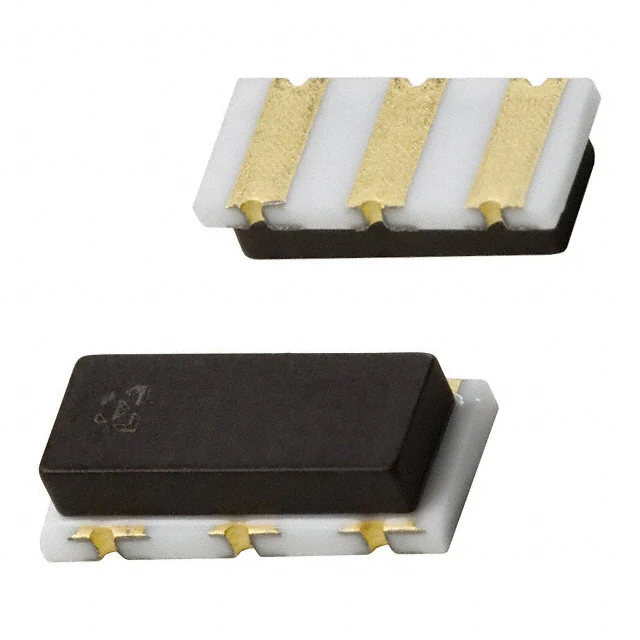

PBRC2.45HR50X000CERAMIC RES 2.4500MHZ 30PF SMD |
13,874 |
|
Datasheet |
PBRC-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2.45 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV3.58HR50Y000CERAMIC RES 3.5800MHZ 30PF SMD |
16,358 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRC3.68HR10X000CERAMIC RES 3.6800MHZ 30PF SMD |
4,166 |
|
Datasheet |
PBRC-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.68 MHz | ±0.3% | ±0.1% | Built in Capacitor | 30 pF | - | -40°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV3.68HR50Y000CERAMIC RES 3.6800MHZ 30PF SMD |
15,760 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.68 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV4.00HR50Y000CERAMIC RES 4.0000MHZ 30PF SMD |
14,306 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRC4.00HR10X000CERAMIC RES 4.0000MHZ 30PF SMD |
4,246 |
|
Datasheet |
PBRC-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.1% | Built in Capacitor | 30 pF | - | -40°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV4.00HR10Y000CERAMIC RES 4.0000MHZ 30PF SMD |
6,316 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.1% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV4.91HR50Y000CERAMIC RES 4.9100MHZ 30PF SMD |
14,842 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4.91 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV6.00HR50Y000CERAMIC RES 6.0000MHZ 30PF SMD |
19,262 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 6 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV7.37HR50Y000CERAMIC RES 7.3700MHZ 30PF SMD |
15,788 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 7.37 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRC7.37HR10X000CERAMIC RES 7.3700MHZ 30PF SMD |
17,154 |
|
Datasheet |
PBRC-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 7.37 MHz | ±0.3% | ±0.1% | Built in Capacitor | 30 pF | - | -40°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
PBRV8.00MR10Y000CERAMIC RES 8.0000MHZ 15PF SMD |
18,406 |
|
Datasheet |
PBRV-M, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.1% | Built in Capacitor | 15 pF | - | -40°C ~ 125°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.19mm) |
|
PBRC8.00MR10X000CERAMIC RES 8.0000MHZ 15PF SMD |
4,570 |
|
Datasheet |
PBRC-M, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.1% | ±0.1% | Built in Capacitor | 15 pF | - | -40°C ~ 85°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.19mm) |
|
|
PBRV8.00HR10Y000CERAMIC RES 8.0000MHZ 30PF SMD |
11,634 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.1% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
|
|
PBRV8.00HR50Y000CERAMIC RES 8.0000MHZ 30PF SMD |
8,464 |
|
Datasheet |
PBRV-H, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -40°C ~ 125°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.079" (2.00mm) |
