Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4116R-1-221LFRES ARRAY 8 RES 220 OHM 16DIP |
6,872 |
|
Datasheet |
4100R | 16-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 220 | ±2% | 8 | - | 50ppm/°C | 16 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.865" L x 0.300" W (21.97mm x 7.62mm) | 0.185" (4.69mm) |
|
|
4116R-1-331LFRES ARRAY 8 RES 330 OHM 16DIP |
1,712 |
|
Datasheet |
4100R | 16-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 330 | ±2% | 8 | - | 50ppm/°C | 16 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.865" L x 0.300" W (21.97mm x 7.62mm) | 0.185" (4.69mm) |
|
MPMT10012001AT1RES NETWORK 2 RES 1K, 2K OHM |
44,982 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 1k, 2k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
ACASN1003E1003P1ATRES ARRAY 2 RES 100K OHM 0606 |
4,872 |
|
Datasheet |
ACA - Precision | 0606, Convex | Tape & Reel (TR) | Not For New Designs | Isolated | 100k | ±0.25% | 2 | ±0.05% | ±7.5ppm/°C | 4 | 125mW | ±25ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | Voltage Divider (TCR Matched) | Surface Mount | 0606 | 0.063" L x 0.059" W (1.60mm x 1.50mm) | 0.022" (0.55mm) |
|
766163102GPTR7RES ARRAY 8 RES 1K OHM 16SOIC |
4,426 |
|
Datasheet |
766 | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 1k | ±2% | 8 | - | - | 16 | 160mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.390" L x 0.154" W (9.90mm x 3.90mm) | 0.069" (1.75mm) |
|
|
766163332GPRES ARRAY 8 RES 3.3K OHM 16SOIC |
4,100 |
|
Datasheet |
766 | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | 3.3k | ±2% | 8 | - | - | 16 | 160mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.390" L x 0.154" W (9.90mm x 3.90mm) | 0.069" (1.75mm) |
|

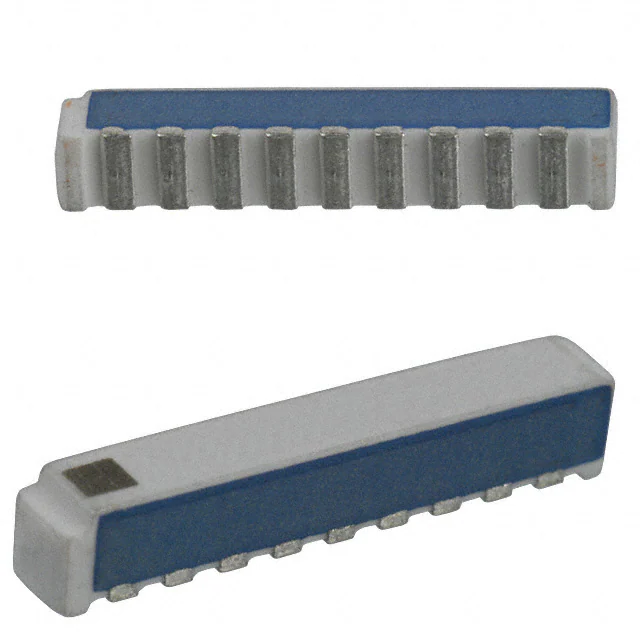

752091103GPTR7RES ARRAY 8 RES 10K OHM 9SRT |
15,998 |
|
Datasheet |
752 | 9-SRT | Tape & Reel (TR) | Active | Bussed | 10k | ±2% | 8 | - | - | 9 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.515" L x 0.080" W (13.08mm x 2.03mm) | 0.100" (2.53mm) |
|
|
766161103GPTR7RES ARRAY 15 RES 10K OHM 16SOIC |
9,616 |
|
Datasheet |
766 | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Bussed | 10k | ±2% | 15 | - | - | 16 | 80mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.390" L x 0.154" W (9.90mm x 3.90mm) | 0.069" (1.75mm) |
|
ORNTA5001AT1RES ARRAY 4 RES 5K OHM 8SOIC |
7,704 |
|
Datasheet |
ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 5k | ±0.1% | 4 | ±0.05% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|

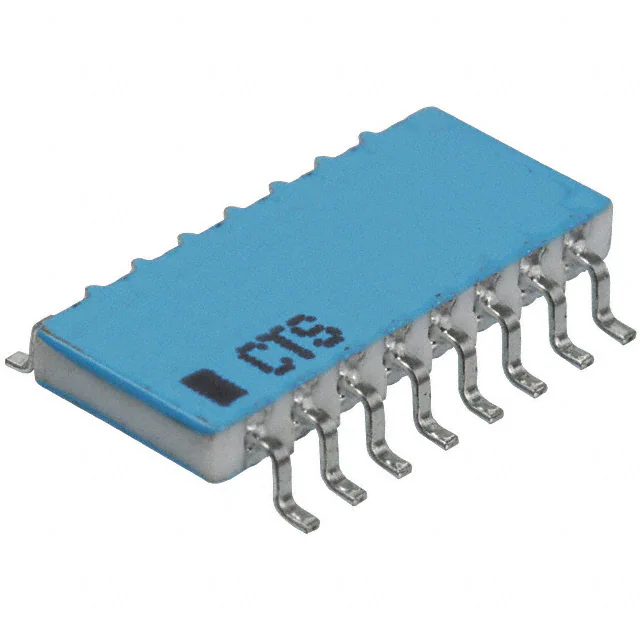

767163332GPRES ARRAY 8 RES 3.3K OHM 16SOIC |
4,724 |
|
Datasheet |
767 | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 3.3k | ±2% | 8 | - | - | 16 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.093" (2.36mm) |
|
|
767163103GPRES ARRAY 8 RES 10K OHM 16SOIC |
2,098 |
|
Datasheet |
767 | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 10k | ±2% | 8 | - | - | 16 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.093" (2.36mm) |
|
|
767161103GPTR13RES ARRAY 15 RES 10K OHM 16SOIC |
6,736 |
|
Datasheet |
767 | 16-SOIC (0.220", 5.59mm Width) | Tape & Reel (TR) | Active | Bussed | 10k | ±2% | 15 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.093" (2.36mm) |
|
|
ORNTA1003AT1RES ARRAY 4 RES 100K OHM 8SOIC |
10,878 |
|
Datasheet |
ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 100k | ±0.1% | 4 | ±0.05% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|
|
MPMT5001AT1RES NTWRK 2 RES 2.5K, 2.5K OHM |
6,330 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 2.5k, 2.5k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT1003AT1RES NTWRK 2 RES 50K, 50K OHM |
1,286 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 50k, 50k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
SOMC160110K0GEARES ARRAY 15 RES 10K OHM 16SOIC |
6,466 |
|
Datasheet |
SOMC | 16-SOIC (0.220", 5.59mm Width) | Tape & Reel (TR) | Active | Bussed | 10k | ±2% | 15 | - | - | 16 | 80mW | ±100ppm/°C | -55°C ~ 150°C | - | - | - | Surface Mount | - | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.090" (2.29mm) |
|
|
NOMCT16031002AT1RES ARRAY 8 RES 10K OHM 16SOIC |
16,672 |
|
Datasheet |
NOMC | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 10k | ±0.1% | 8 | ±0.025% | ±5ppm/°C | 16 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.154" W (9.91mm x 3.91mm) | 0.063" (1.60mm) |
|
SOMC14011K00GEARES ARRAY 13 RES 1K OHM 14SOIC |
2,654 |
|
Datasheet |
SOMC | 14-SOIC (0.220", 5.59mm Width) | Tape & Reel (TR) | Active | Bussed | 1k | ±2% | 13 | - | - | 14 | 80mW | ±100ppm/°C | -55°C ~ 150°C | - | - | - | Surface Mount | - | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.090" (2.29mm) |
|
|
SOMC140110K0GEARES ARRAY 13 RES 10K OHM 14SOIC |
284 |
|
Datasheet |
SOMC | 14-SOIC (0.220", 5.59mm Width) | Tape & Reel (TR) | Active | Bussed | 10k | ±2% | 13 | - | - | 14 | 80mW | ±100ppm/°C | -55°C ~ 150°C | - | - | - | Surface Mount | - | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.090" (2.29mm) |
|
ACASA1001E1001P100RES ARRAY 4 RES 1K OHM 1206 |
38,700 |
|
Datasheet |
ACA - Precision | 1206 (3216 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Not For New Designs | Isolated | 1k | ±0.25% | 4 | ±0.05% | ±7.5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.022" (0.55mm) |
