Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

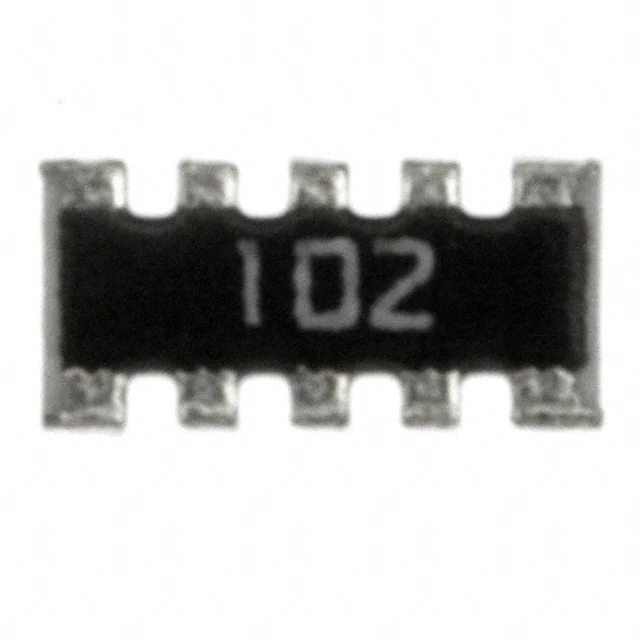

746X101102JPRES ARRAY 8 RES 1K OHM 1206 |
46,348 |
|
Datasheet |
746 | 1206 (3216 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 1k | ±5% | 8 | - | - | 10 | 63mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
EXB-N8V223JXRES ARRAY 4 RES 22K OHM 0804 |
31,900 |
|
Datasheet |
EXB | 0804, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 22k | ±5% | 4 | - | - | 8 | 31mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.022" (0.55mm) |
|
|
EXB-N8V510JXRES ARRAY 4 RES 51 OHM 0804 |
19,756 |
|
Datasheet |
EXB | 0804, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 51 | ±5% | 4 | - | - | 8 | 31mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.022" (0.55mm) |
|
|
EXB-N8V102JXRES ARRAY 4 RES 1K OHM 0804 |
5,594 |
|
Datasheet |
EXB | 0804, Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 1k | ±5% | 4 | - | - | 8 | 31mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.022" (0.55mm) |
|
EXB-34V220JVRES ARRAY 2 RES 22 OHM 0606 |
824,580 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 22 | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34V104JVRES ARRAY 2 RES 100K OHM 0606 |
217,082 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 100k | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34V222JVRES ARRAY 2 RES 2.2K OHM 0606 |
180,452 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 2.2k | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
,Concave,Long Side Terminals.jpg)
|
742C083100JPRES ARRAY 4 RES 10 OHM 1206 |
163,224 |
|
Datasheet |
742 | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 10 | ±5% | 4 | - | - | 8 | 63mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
|
EXB-34V103JVRES ARRAY 2 RES 10K OHM 0606 |
127,500 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 10k | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34VR000VRES ARRAY 2 RES ZERO OHM 0606 |
101,934 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 0.0 | Jumper | 2 | - | - | 4 | 62.5mW | - | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34V472JVRES ARRAY 2 RES 4.7K OHM 0606 |
92,940 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 4.7k | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34V331JVRES ARRAY 2 RES 330 OHM 0606 |
80,294 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 330 | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
EXB-34V102JVRES ARRAY 2 RES 1K OHM 0606 |
74,898 |
|
Datasheet |
EXB | 0606, Convex | Tape & Reel (TR) | Active | Isolated | 1k | ±5% | 2 | - | - | 4 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0606 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.024" (0.60mm) |
|
|
742C083510JPRES ARRAY 4 RES 51 OHM 1206 |
178,858 |
|
Datasheet |
742 | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 51 | ±5% | 4 | - | - | 8 | 63mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
746X101222JPRES ARRAY 8 RES 2.2K OHM 1206 |
152,500 |
|
Datasheet |
746 | 1206 (3216 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 2.2k | ±5% | 8 | - | - | 10 | 63mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
.jpg)
|
EXB-V8V102JVRES ARRAY 4 RES 1K OHM 1206 |
499,680 |
|
Datasheet |
EXB | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 1k | ±5% | 4 | - | - | 8 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
|
EXB-V8V104JVRES ARRAY 4 RES 100K OHM 1206 |
390,320 |
|
Datasheet |
EXB | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100k | ±5% | 4 | - | - | 8 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
|
EXB-V8V330JVRES ARRAY 4 RES 33 OHM 1206 |
271,548 |
|
Datasheet |
EXB | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 33 | ±5% | 4 | - | - | 8 | 62.5mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|
|
742C083101JPRES ARRAY 4 RES 100 OHM 1206 |
260,884 |
|
Datasheet |
742 | 1206 (3216 Metric), Concave, Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100 | ±5% | 4 | - | - | 8 | 63mW | ±200ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
|

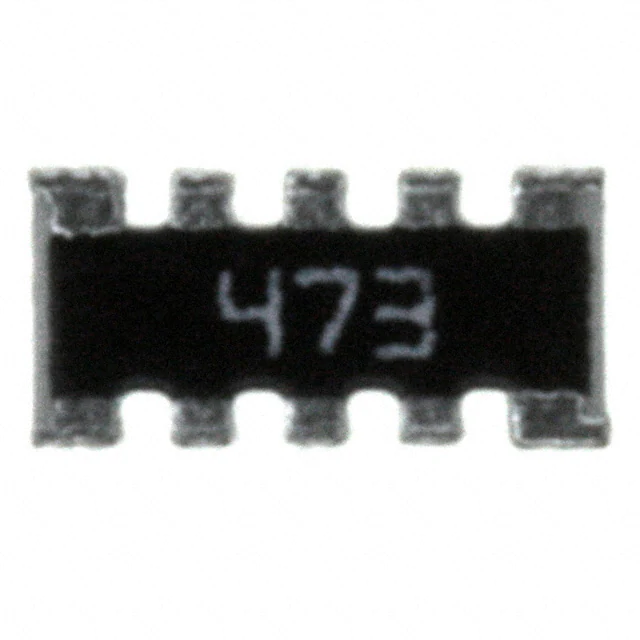

746X101473JPRES ARRAY 8 RES 47K OHM 1206 |
252,338 |
|
Datasheet |
746 | 1206 (3216 Metric), Convex, Long Side Terminals | Tape & Reel (TR) | Active | Bussed | 47k | ±5% | 8 | - | - | 10 | 63mW | ±200ppm/°C | -55°C ~ 125°C | - | - | DDR SDRAM, DRAM, MDDR | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) |
