Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM3216B-102/202-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
9,838 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 1k, 2k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
|
RM3216B-103/203-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
5,024 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 10k, 20k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
|
RM3216B-104/204-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
9,604 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100k, 200k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
|
RM3216B-102/302-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
6,950 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 1k, 3k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
|
RM3216B-103/303-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
3,938 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 10k, 30k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
|
RM3216B-104/304-NWWP10RES ARRAY 2 RES MULT OHM 1206 |
4,840 |
|
Datasheet |
RM | 1206 (3216 Metric), Long Side Terminals | Tape & Reel (TR) | Active | Isolated | 100k, 300k | ±0.05% | 2 | - | - | 4 | 83mW | ±10ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.022" (0.55mm) |
|
MPM20011002AT1RES NTWRK 2 RES 2K, 10K OHM |
2,386 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 2k, 10k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
752105131APTR7RES NTWRK 16 RES MULT OHM 10SRT |
3,416 |
|
Datasheet |
752 | 10-SRT | Tape & Reel (TR) | Active | Dual Terminator | 220, 330 | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|

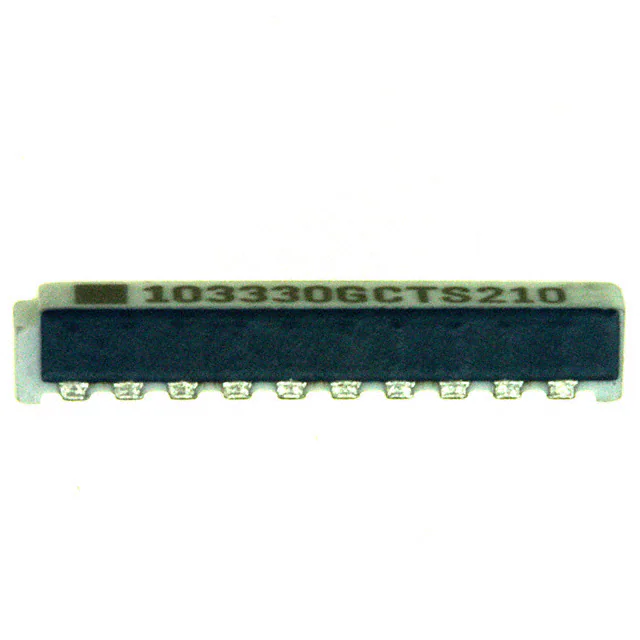

752105191APRES NTWRK 16 RES MULT OHM 10SRT |
7,916 |
|
Datasheet |
752 | 10-SRT | Bulk | Active | Dual Terminator | 330, 470 | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752105191APTR7RES NTWRK 16 RES MULT OHM 10SRT |
3,338 |
|
Datasheet |
752 | 10-SRT | Tape & Reel (TR) | Active | Dual Terminator | 330, 470 | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752105201APRES NTWRK 16 RES MULT OHM 10SRT |
6,946 |
|
Datasheet |
752 | 10-SRT | Bulk | Active | Dual Terminator | 220, 1.8k | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
|
752105201APTR7RES NTWRK 16 RES MULT OHM 10SRT |
6,712 |
|
Datasheet |
752 | 10-SRT | Tape & Reel (TR) | Active | Dual Terminator | 220, 1.8k | ±2% | 16 | - | - | 10 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.565" L x 0.080" W (14.35mm x 2.03mm) | 0.100" (2.53mm) |
|
752161472FPBUSSED STD |
2,726 |
|
Datasheet |
752 | 16-DRT | Bulk | Active | Bussed | 4.7k | ±1% | 15 | - | - | 16 | 80mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-DRT | 0.465" L x 0.080" W (11.81mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241102GPRES ARRAY 22 RES 1K OHM 24DRT |
7,496 |
|
Datasheet |
753 | 24-DRT | Bulk | Active | Bussed | 1k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241102GPTR7RES ARRAY 22 RES 1K OHM 24DRT |
3,298 |
|
Datasheet |
753 | 24-DRT | Tape & Reel (TR) | Active | Bussed | 1k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241104GPRES ARRAY 22 RES 100K OHM 24DRT |
8,006 |
|
Datasheet |
753 | 24-DRT | Bulk | Active | Bussed | 100k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241104GPTR7RES ARRAY 22 RES 100K OHM 24DRT |
4,134 |
|
Datasheet |
753 | 24-DRT | Tape & Reel (TR) | Active | Bussed | 100k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241472GPRES ARRAY 22 RES 4.7K OHM 24DRT |
2,658 |
|
Datasheet |
753 | 24-DRT | Bulk | Active | Bussed | 4.7k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241472GPTR7RES ARRAY 22 RES 4.7K OHM 24DRT |
6,884 |
|
Datasheet |
753 | 24-DRT | Tape & Reel (TR) | Active | Bussed | 4.7k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
|
|
753241103GPBUSSED STD |
8,454 |
|
Datasheet |
753 | 24-DRT | Bulk | Active | Bussed | 10k | ±2% | 22 | - | - | 24 | 40mW | ±200ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | - | 0.345" L x 0.080" W (8.76mm x 2.03mm) | 0.100" (2.53mm) |
