Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N5550DIODE GEN PURP 200V 5A AXIAL |
5,580 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
VS-80PF80WDIODE GEN PURP 800V 80A DO203AB |
3,036 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
VS-40HFR20DIODE GEN PURP 200V 40A DO203AB |
8,780 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-16FR80DIODE GEN PURP 800V 16A DO203AA |
3,102 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-40HF20DIODE GEN PURP 200V 40A DO203AB |
4,530 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-80PF80DIODE GEN PURP 800V 80A DO203AB |
7,314 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
|
VS-50PF40DIODE GEN PURP 400V 50A DO203AB |
7,174 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 50A | 1.4 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
|
JANTX1N5553DIODE GEN PURP 800V 5A AXIAL |
8,750 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
VS-25FR100DIODE GEN PURP 1KV 25A DO203AA |
8,868 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

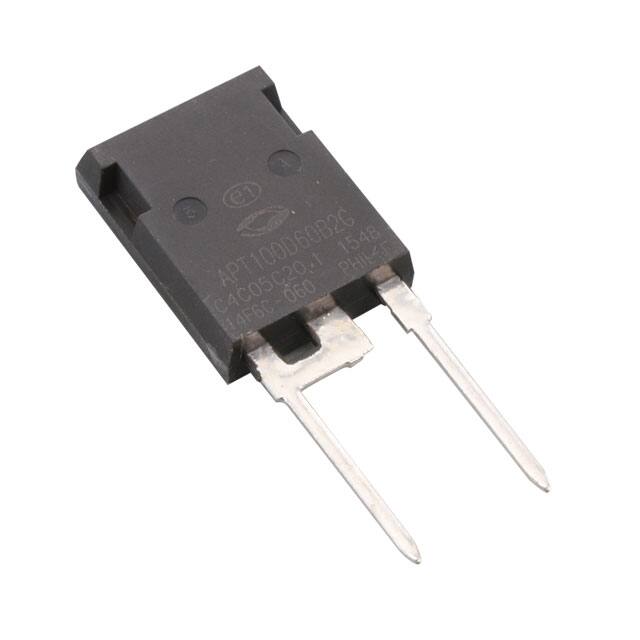

APT100D60B2GDIODE GEN PURP 600V 100A TO247 |
6,242 |
|
Datasheet |
- | TO-247-2 | Tube | Active | Standard | 600 V | 100A | - | - | - | - | - | - | - | Through Hole | TO-247 | - |
|
|
VS-16FLR60S02DIODE GP REV 600V 16A DO203AA |
9,726 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 16A | 1.4 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 50 µA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
VS-70HFR10DIODE GEN PURP 100V 70A DO203AB |
3,300 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
VS-1N3673ADIODE GEN PURP 1KV 12A DO203AA |
6,110 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 600 µA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

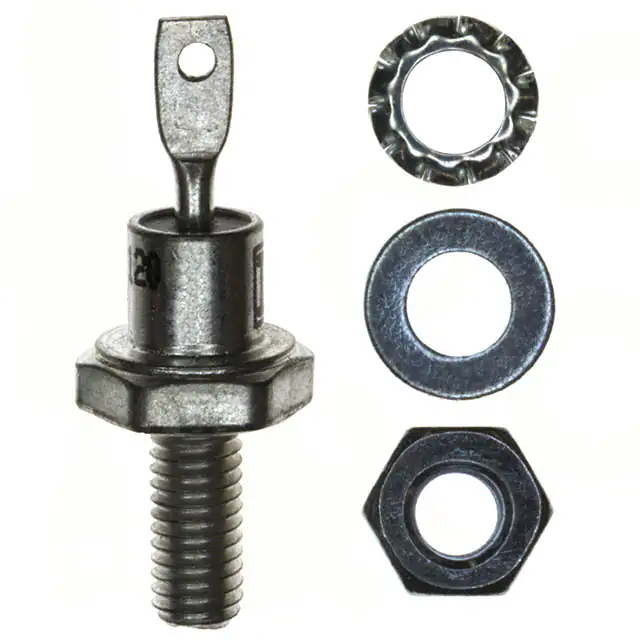

VS-25FR120DIODE GEN PURP 1.2KV 25A DO203AA |
2,862 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-25F100DIODE GEN PURP 1KV 25A DO203AA |
5,158 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

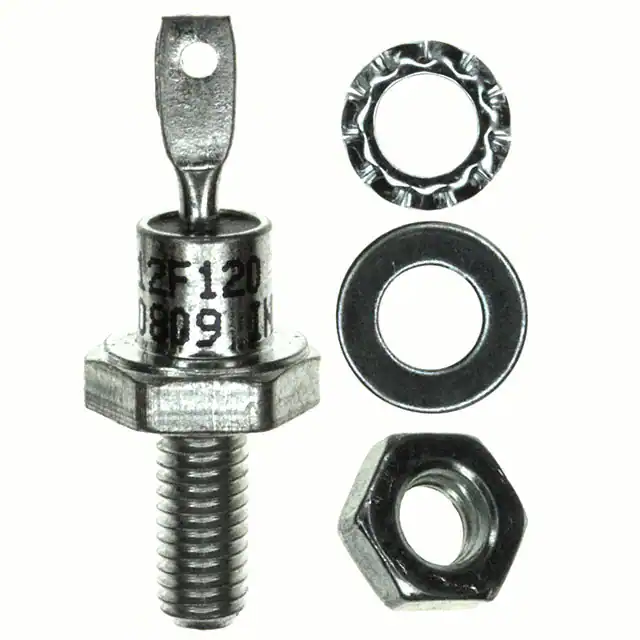

VS-12F120DIODE GEN PURP 1.2KV 12A DO203AA |
2,720 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

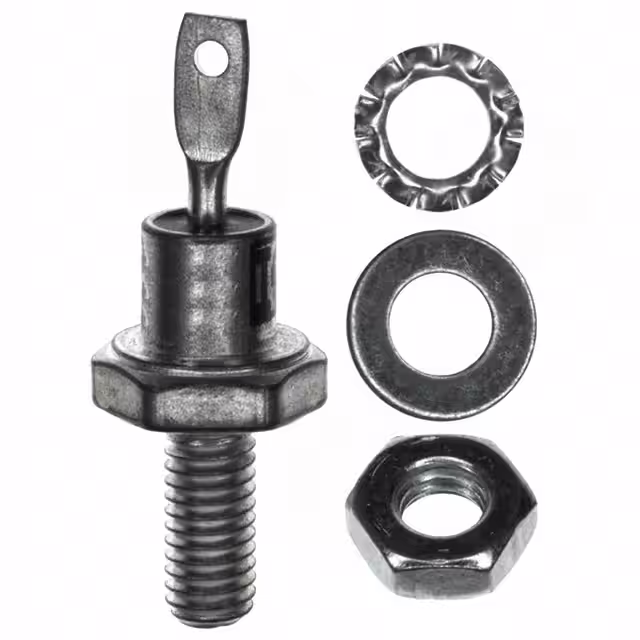

VS-25F120DIODE GEN PURP 1.2KV 25A DO203AA |
4,468 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1200 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-40HF100DIODE GEN PURP 1KV 40A DO203AB |
3,752 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFR80DIODE GEN PURP 800V 40A DO203AB |
9,686 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HF80DIODE GEN PURP 800V 40A DO203AB |
8,964 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
