Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
~~2.jpg)
|
VS-1EQH01-M3/HDIODE GEN PURP 100V 1A DO219AD |
17,740 |
|
Datasheet |
FRED Pt® | DO-219AD | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 970 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 23 ns | 1 µA @ 100 V | 6pF @ 200V | - | - | Surface Mount | DO-219AD (MicroSMP) | -55°C ~ 175°C |
|
V1FM15-M3/HDIODE SCHOTTKY 150V 1A DO219AB |
17,392 |
|
Datasheet |
eSMP®, TMBS® | DO-219AB | Tape & Reel (TR) | Active | Schottky | 150 V | 1A | 1.22 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | 60pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -40°C ~ 175°C |
|
B5818LWS-TPDIODE SCHOTTKY 30V 1A SOD323 |
16,056 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 30 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -65°C ~ 125°C |
|

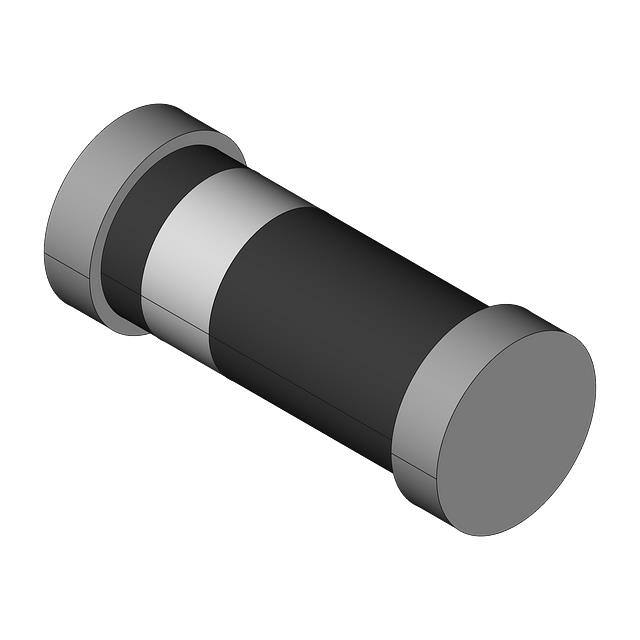

FDLL400DIODE GEN PURP 150V 200MA SOD80 |
13,428 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | Standard | 150 V | 200mA | 1.1 V @ 300 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 150 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOD-80 | 175°C (Max) |
|
|
BAV19WSHE3-TPDIODE GEN PURP 100V 200MA SOD323 |
13,258 |
|
- |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 100 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 100 V | 1.5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | -65°C ~ 150°C |
|
|
BAS116LSYLDIODE GP 85V 325MA DFN1006BD-2 |
8,716 |
|
Datasheet |
- | SOD-882 | Tape & Reel (TR) | Active | Standard | 85 V | 325mA | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | DFN1006BD-2 | 150°C |
|
BR315_R1_00001SMB, SKY |
6,452 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 150 V | 3A | 900 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | - | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
|
B130AF-13DIODE SCHOTTKY 30V 1A SMAF |
5,140 |
|
Datasheet |
- | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 30 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | 50pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
|
1N4148WXHE3-TPDIODE GEN PURP 100V 150MA SOD323 |
3,968 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 100 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 25 nA @ 20 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
RB531VM-40TE-17DIODE SCHOTTKY 40V 100MA UMD2 |
2,154 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 100mA | 610 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 100 µA @ 40 V | - | - | - | Surface Mount | UMD2 | 150°C (Max) |
|
CD214A-B160RDIODE SCHOTTKY 60V 1A 2SMD |
213,164 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 700 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | 2-SMD | -55°C ~ 125°C |
|
MSX1PJHM3/89ADIODE GEN PURP 600V 1A MICROSMP |
103,660 |
|
Datasheet |
eSMP® | DO-219AD | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.1 V @ 1 A | - | 960 ns | 1 µA @ 600 V | 5pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-219AD (MicroSMP) | -55°C ~ 175°C |
|
1N4002-E3/53DIODE GEN PURP 100V 1A DO204AL |
76,248 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 100 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 100 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -50°C ~ 150°C |
|
|
RS1FLD-M3/HDIODE GEN PURP 200V 1A DO219AB |
58,170 |
|
Datasheet |
- | DO-219AB | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.2 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 500 ns | 5 µA @ 200 V | 7pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -55°C ~ 150°C |
|
S1FLD-GS08DIODE GP 200V 700MA DO219AB |
54,472 |
|
Datasheet |
- | DO-219AB | Tape & Reel (TR) | Active | Standard | 200 V | 700mA | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 10 µA @ 200 V | 4pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -55°C ~ 150°C |
|
B140BQ-13-FDIODE SCHOTTKY 40V 1A SMB |
51,074 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 110pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SMB | -65°C ~ 150°C |
|
S1M-M3/5ATDIODE GEN PURP 1KV 1A DO214AC |
46,504 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 5 µA @ 1000 V | 12pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
BAS40-00-G3-08DIODE SCHOTTKY 40V 200MA SOT23-3 |
45,390 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky | 40 V | 200mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | 125°C (Max) |
|
S2G-E3/52TDIODE GEN PURP 400V 1.5A DO214AA |
41,870 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 400 V | 1.5A | 1.15 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | 16pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
S1FLM-GS08DIODE GEN PURP 1KV 700MA DO219AB |
36,770 |
|
Datasheet |
- | DO-219AB | Tape & Reel (TR) | Active | Standard | 1000 V | 700mA | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 10 µA @ 1000 V | 4pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AB (SMF) | -55°C ~ 150°C |
