Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UES2602HR2DIODE ARRAY GP 100V 30A TO204AA |
10,280 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | 1 Pair Common Cathode | Standard | 100 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-204AA (TO-3) |
|
F18107RD1000DIODE MODULE GEN PURP 1000V 105A |
19,234 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1000 V | 105A (DC) | 1.65 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | - |
|
|
1N7039CCT1DIODE ARR SCHOT 150V 35A TO254AA |
13,326 |
|
Datasheet |
- | TO-254-3, TO-254AA | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 35A | 1.6 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -65°C ~ 150°C | - | - | Through Hole | TO-254AA |
|
|
JAN1N7039CCT1DIODE ARR SCHOT 150V 35A TO254AA |
4,928 |
|
Datasheet |
- | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 35A | 1.6 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -65°C ~ 150°C | Military | MIL-PRF-19500/737 | Surface Mount | TO-254AA |
|
|
APTDF400AA100GDIODE MODULE GP 1000V 500A SP6 |
12,662 |
|
Datasheet |
- | LP4 | Bulk | Active | 1 Pair Common Anode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | - | - | Chassis Mount | SP6 |
|
|
APTDF400AK100GDIODE MODULE GP 1000V 500A SP6 |
12,530 |
|
Datasheet |
- | LP4 | Bulk | Active | 1 Pair Common Anode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | - | - | Chassis Mount | SP6 |
|
|
APTDF400KK100GDIODE MODULE GP 1000V 500A SP6 |
4,662 |
|
Datasheet |
- | LP4 | Bulk | Active | 1 Pair Common Cathode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | - | - | Chassis Mount | SP6 |
|
VSKC320-08DIODE MOD GP 800V 320A MAGNAPAK |
13,720 |
|
Datasheet |
- | 3-MAGN-A-PAK™ | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | MAGN-A-PAK® |
|
|
F1857RD1600DIODE MODULE GP 1600V 55A MODULE |
18,618 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 55A (DC) | 1.4 V @ 165 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
1N6840DIODE ARRAY SCHOTTKY 35V 10A U3 |
15,934 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | -55°C ~ 150°C | - | - | Surface Mount | U3 (SMD-0.5) |
|
|
1N6840U3DIODE ARRAY SCHOTTKY 35V 10A U3 |
19,816 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | -65°C ~ 150°C | - | - | Surface Mount | U3 (SMD-0.5) |
|
|
VSKCL240-06S10DIODE MOD GP 600V 250A MAGNAPAK |
15,278 |
|
Datasheet |
- | 3-MAGN-A-PAK™ | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 250A | 1.57 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 1 µs | 50 mA @ 600 V | - | - | - | Chassis Mount | MAGN-A-PAK® |
|
LDR10866DIODE MODULE GP 660A POWRBLOK |
12,942 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | - | 660A (DC) | 1.4 V @ 1978 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
VSKC320-12DIODE MOD GP 1200V 320A MAGNAPAK |
14,874 |
|
Datasheet |
- | 3-MAGN-A-PAK™ | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | - | - | Chassis Mount | MAGN-A-PAK® |
|

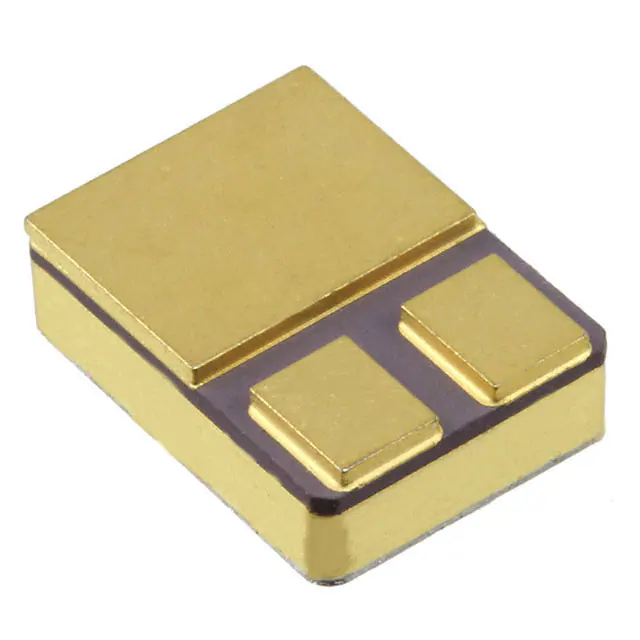

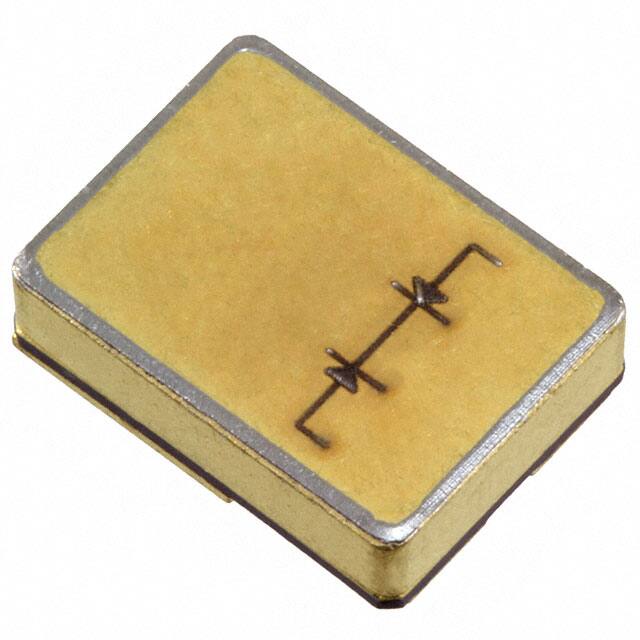

JANTXV1N6843CCU3/TRDIODE ARRAY SCHOTTKY 100V 15A U3 |
15,546 |
|
- |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
|
|
MDMA600P1600PTSFDIODE MOD GP 1600V 600A SIMBUS F |
13,114 |
|
Datasheet |
MDMA600P1600PTSF | SimBus F | Box | Active | - | Standard | 1600 V | 600A | - | - | - | - | - | - | - | Chassis Mount | SimBus F |
|
APTDF400AA120GDIODE MODULE GP 1200V 470A SP6 |
14,930 |
|
Datasheet |
- | LP4 | Bulk | Active | 1 Pair Common Anode | Standard | 1200 V | 470A | 3 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 250 µA @ 1200 V | - | - | - | Chassis Mount | SP6 |
|
APTDF400AK120GDIODE MODULE GP 1200V 470A SP6 |
15,306 |
|
Datasheet |
- | LP4 | Tube | Active | 1 Pair Series Connection | Standard | 1200 V | 470A | 3 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 250 µA @ 1200 V | - | - | - | Chassis Mount | SP6 |
|
VS-VSKH320-16PBFDIODE MOD GP 1600V 160A MAGNAPAK |
11,746 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | 1 Pair Series Connection | Standard | 1600 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | MAGN-A-PAK® |
|
JANTXV1N6843CCU3DIODE ARRAY SCHOTTKY 100V 15A U3 |
8,808 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
