Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5712UBCCDIODE ARRAY SCHOTTKY 16V 75MA UB |
8,256 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5712UBCA/TRDIODE ARRAY SCHOTTKY 16V 75MA UB |
19,080 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5712UBD/TRDIODE ARRAY SCHOTTKY 16V 75MA UB |
18,636 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
DD104N16KHPSA2DIODE MOD GP 1600V 104A MOD |
15,940 |
|
- |
DD104N | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | 150°C | - | - | Chassis Mount | Module |
|
|
JANTXV1N5711UBCADIODE ARRAY SCHOTTKY 50V 33MA UB |
19,792 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | 1 Pair Common Anode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBCA/TRDIODE ARRAY SCHOTTKY 50V 33MA UB |
15,138 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBCCDIODE ARRAY SCHOTTKY 50V 33MA UB |
12,322 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBDDIODE ARRAY SCHOTTKY 50V 33MA UB |
12,190 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | 1 Pair Series Connection | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
MD260C16D3-BPDIODE MODULE GP 1600V 260A D3 |
19,984 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | 1 Pair Series Connection | Standard | 1600 V | 260A | 1.45 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D3 |
|
|
MD260C14D3-BPDIODE MODULE GP 1400V 260A D3 |
11,358 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Not For New Designs | 1 Pair Series Connection | Standard | 1400 V | 260A | 1.45 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1400 V | -40°C ~ 150°C | - | - | Chassis Mount | D3 |
|
|
JANTXV1N5711UBD/TRDIODE ARRAY SCHOTTKY 50V 33MA UB |
8,832 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
DD300KB80DIODE MODULE GEN PURP 800V 300A |
6,092 |
|
Datasheet |
- | Module | Active | 1 Pair Series Connection | Standard | 800 V | 300A | 1.5 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | - | |
|
|
MDD310-18N1DIODE MODULE GP 1800V 305A Y2DCB |
15,966 |
|
Datasheet |
- | Y2-DCB | Box | Active | 1 Pair Series Connection | Standard | 1800 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | Y2-DCB |
|
|
DD104N18KHPSA2DIODE MOD GP 1800V 104A MOD |
9,558 |
|
- |
DD104N | Module | Tray | Active | 1 Pair Series Connection | Standard | 1800 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | 150°C | - | - | Chassis Mount | Module |
|
|
DD300KB160DIODE MODULE GEN PURP 1600V 300A |
11,888 |
|
Datasheet |
- | Module | Active | 1 Pair Series Connection | Standard | 1600 V | 300A | 1.5 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | - | |
|

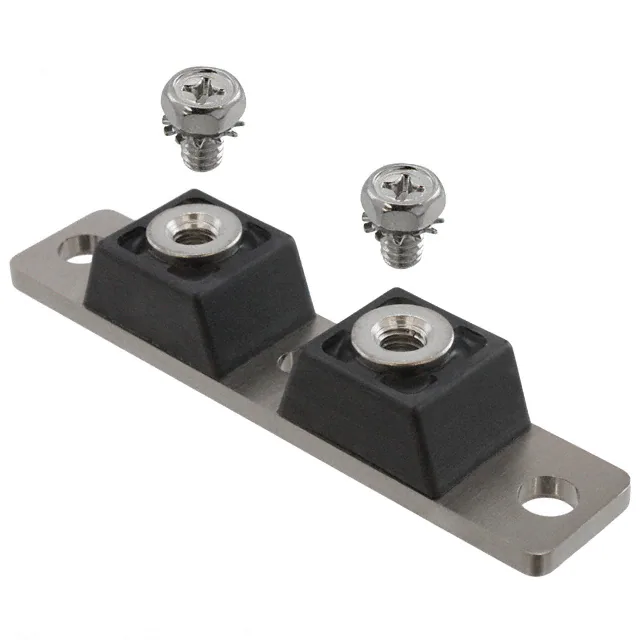

MBR60040CTDIODE MOD SCHOTT 40V 300A 2TOWER |
10,764 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR60040CTRDIODE MOD SCHOTT 40V 300A 2TOWER |
14,164 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR600100CTDIODE MOD SCHOT 100V 300A 2TOWER |
18,522 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR600100CTRDIODE MOD SCHOT 100V 300A 2TOWER |
14,122 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60020CTDIODE MOD SCHOTT 20V 300A 2TOWER |
11,050 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
