Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURT10020RDIODE MODULE GP 200V 50A 3TOWER |
17,676 |
|
Datasheet |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard, Reverse Polarity | 200 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

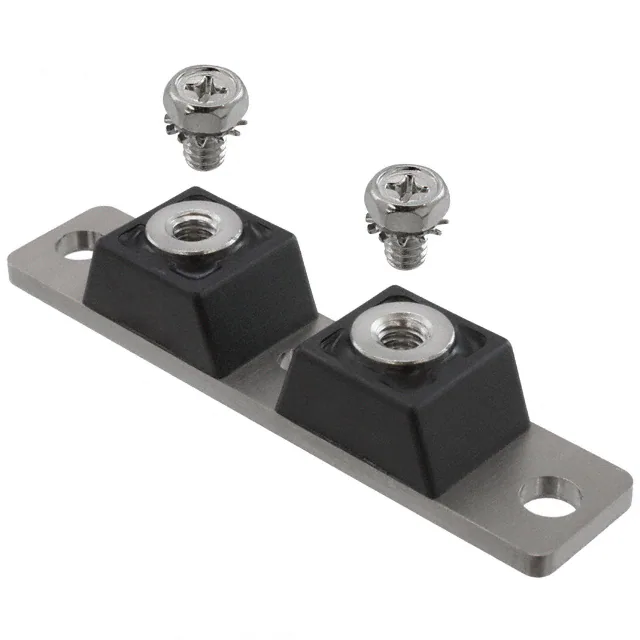

MBR20030CTDIODE MOD SCHOTT 30V 200A 2TOWER |
4,436 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

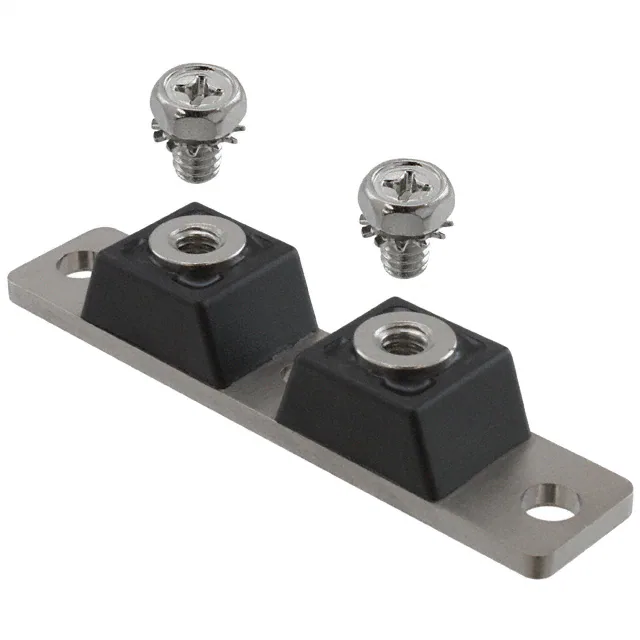

MBR20030CTRDIODE MOD SCHOTT 30V 200A 2TOWER |
13,148 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR200100CTDIODE MOD SCHOT 100V 200A 2TOWER |
16,438 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR200100CTRDIODE MOD SCHOT 100V 200A 2TOWER |
6,746 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTDIODE MOD SCHOTT 20V 200A 2TOWER |
12,418 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTRDIODE MOD SCHOTT 20V 200A 2TOWER |
5,852 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTDIODE MOD SCHOTT 35V 200A 2TOWER |
4,008 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
14,484 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20040CTDIODE MOD SCHOTT 40V 200A 2TOWER |
8,400 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20040CTRDIODE MOD SCHOTT 40V 200A 2TOWER |
10,550 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20045CTDIODE MOD SCHOTT 45V 200A 2TOWER |
7,548 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20045CTRDIODE MOD SCHOTT 45V 200A 2TOWER |
18,092 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20060CTDIODE MOD SCHOTT 60V 200A 2TOWER |
15,820 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 200A (DC) | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20060CTRDIODE MOD SCHOTT 60V 200A 2TOWER |
4,820 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 200A (DC) | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20080CTDIODE MOD SCHOTT 80V 200A 2TOWER |
4,646 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20080CTRDIODE MOD SCHOTT 80V 200A 2TOWER |
4,772 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 80 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR200150CTDIODE MOD SCHOT 150V 100A 2TOWER |
5,922 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR200150CTRDIODE MOD SCHOT 150V 100A 2TOWER |
11,290 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 150 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR200200CTDIODE MOD SCHOT 200V 100A 2TOWER |
18,692 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 100A | 920 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
