Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9KB-1A DC24RELAY GEN PURPOSE SPST 50A 24V |
568 |
|
Datasheet |
G9KB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 600VDC - Max | 30000W | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
KRPA-14DN-125RELAY GEN PURPOSE 3PDT 10A 125V |
204 |
|
Datasheet |
KRPA | Bulk | Active | Socketable | 125VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | Class B | 93.75 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-E1W2-V700RELAY GEN PURPOSE DPDT 7.5A 24V |
610 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
MGN2C-DC12RELAY GEN PURPOSE DPDT 30A 12V |
270 |
|
Datasheet |
MGN | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 167 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | General Purpose | - | - |
|
R10-E1Y4-V185RELAY GEN PURPOSE 4PDT 3A 12V |
556 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
1148699RELAY GEN PURPOSE 4PST 6A 24V |
7,418 |
|
Datasheet |
RIF | Box | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC, 300VDC - Max | 1500VA, 240W | 17 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 10 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
5542231RELAY GEN PURPOSE SPDT 10A 5V |
328 |
|
Datasheet |
- | Bulk | Active | DIN Rail | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | General Purpose | - | - |
|
G9KB-1A-E DC24RELAY GEN PURPOSE SPST 100A 24V |
5,048 |
|
Datasheet |
G9KB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 100 A | 60000W | - | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
PRD-3DH0-24RELAY GEN PURPOSE SPST 20A 24V |
3,616 |
|
Datasheet |
PRD | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 20 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | General Purpose | - | - |
|
G7J-3A1B-B-W1 DC24RELAY GEN PURPOSE 4PST 25A 24V |
256 |
|
Datasheet |
G7J | Bulk | Active | Chassis Mount | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | Bracket Included, Test Button | Screw Terminal | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
R10-E1Y6-V430RELAY GEN PURPOSE 6PDT 3A 24V |
614 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 24VDC | 6PDT (6 Form C) | 3 A | 120VAC - Nom | - | 55.8 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
R10-E1Y4-V2.5KRELAY GEN PURPOSE 4PDT 3A 48V |
4,426 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|

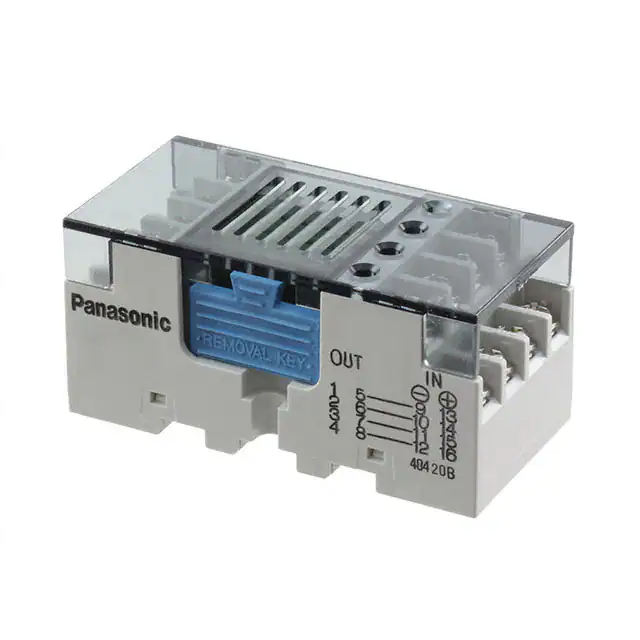

RT3SN-24VRELAY GEN PURPOSE SPST 3A 24V |
9,902 |
|
Datasheet |
RT-3 | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 4.6 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 16.8 VDC | 1.2 VDC | - | - | -20°C ~ 55°C | - | General Purpose | - | - |
|
|
G7J-4A-B-W1 AC100/120RELAY GEN PURPOSE 4PST 25A 120V |
6,622 |
|
Datasheet |
G7J | Bulk | Active | Chassis Mount | 120VAC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 21.6 mA | Non Latching | Bracket Included, Test Button | Screw Terminal | - | - | 75 VAC | 18 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
|
R10-E1X4-V700RELAY GEN PURPOSE 4PDT 5A 24V |
716 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

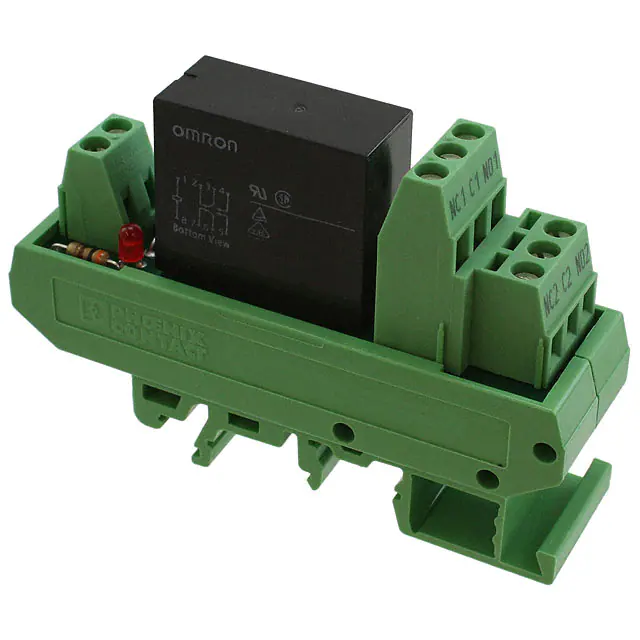

5542738RELAY GEN PURPOSE DPDT 5A 5V |
9,042 |
|
Datasheet |
- | Bulk | Active | DIN Rail | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | General Purpose | - | - |
|
PRD-7AG0-120RELAY GEN PURPOSE DPST 30A 120V |
5,076 |
|
Datasheet |
PRD | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
PRD-7AY0-120RELAY GEN PURPOSE DPST 25A 120V |
9,524 |
|
Datasheet |
PRD | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
|
24106RELAY GEN PURPOSE SPST 85A 12V |
8,872 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 85 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | General Purpose | - | - |
|
|
R10-E1X2-V185RELAY GEN PURPOSE DPDT 5A 12V |
748 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
