Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RG-2A-X DC12RELAY GEN PURPOSE DPST 10A 12V |
1,560 |
|
Datasheet |
G2RG-X | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 500VDC - Max | 5000W | 66.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G2R-1A-T-AC120RELAY GEN PURPOSE SPST 10A 120V |
1,430 |
|
Datasheet |
G2R | Tray | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 7.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
55.34.8.024.0040RELAY GEN PURPOSE 4PDT 7A 24V |
282 |
|
Datasheet |
55 | Bulk | Active | Socketable | 24VAC | 4PDT (4 Form C) | 7 A | 250VAC - Max | 1750VA | 53 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ST1-DC12V-FRELAY GEN PURPOSE DPST 8A 12V |
6,018 |
|
Datasheet |
ST | Tube | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RP714012RELAY GEN PURPOSE SPDT 16A 12V |
11,174 |
|
Datasheet |
RP II/1, SCHRACK | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G6B-1174P-FD-US-P6B DC24RELAY GEN PURPOSE SPST 8A 24V |
852 |
|
Datasheet |
G6B | Bulk | Active | Socketable | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | Plug In | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
MY2-GS-R AC220/240RELAY GEN PURPOSE DPDT 5A 240V |
302 |
|
Datasheet |
MY | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 15.1 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
LY1F-AC220/240RELAY GEN PURPOSE SPDT 15A 240V |
880 |
|
Datasheet |
LY | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 4.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
LY1-DC12RELAY GEN PURPOSE SPDT 15A 12V |
208 |
|
Datasheet |
LY | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
RU4S-C-D24RELAY GEN PURPOSE 4PDT 6A 24V |
10,280 |
|
Datasheet |
RU | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
MY4N-GS-R DC24RELAY GEN PURPOSE 4PDT 3A 24V |
1,562 |
|
Datasheet |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 36.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
MY4N-GS-R DC12RELAY GEN PURPOSE 4PDT 12V |
216 |
|
Datasheet |
MY | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 72.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
ADJH23005RELAY GEN PURPOSE SPST 50A 5V |
380 |
|
Datasheet |
ADJH | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 400 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2961202RELAY GEN PURPOSE DPDT 8A 110V |
1,306 |
|
Datasheet |
REL-MR | Tube | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 4.1 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
.JPG)
|
MY2N AC220/240 (S)RELAY GEN PURPOSE DPDT 5A 240V |
794 |
|
Datasheet |
MY | Bulk | Last Time Buy | Socketable | 240VAC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 12.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
RTE25024RELAY GEN PURPOSE DPDT 8A 24V |
9,684 |
|
Datasheet |
RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
G7L-2A-TUB-CB AC100/120RELAY GEN PURPOSE DPST 25A 120V |
2,722 |
|
Datasheet |
G7L | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 20.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|

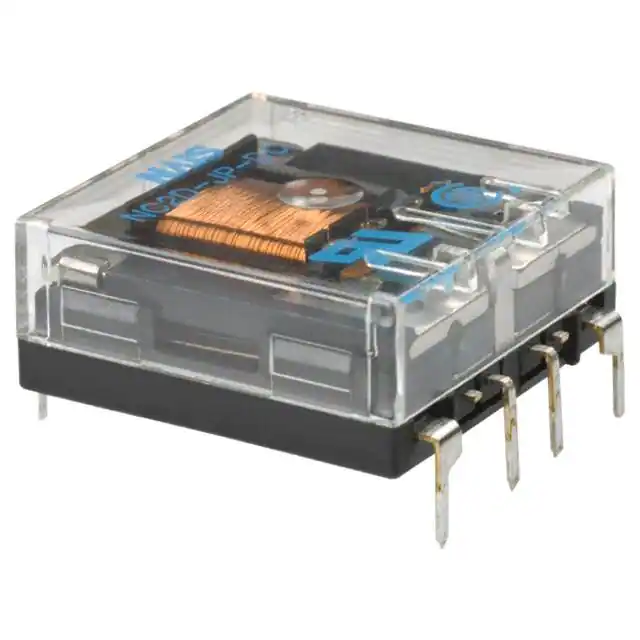

NC2D-JP-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
1,024 |
|
Datasheet |
NC | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 15 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
RY2S-UDC24VRELAY GEN PURPOSE DPDT 3A 24V |
938 |
|
Datasheet |
RY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 32 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
RJ2S-CL-D24RELAY GEN PURPOSE DPDT 8A 24V |
1,056 |
|
Datasheet |
RJ | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 25.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
