Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OZ-SS-112D,200RELAY GEN PURPOSE SPDT 16A 12V |
4,266 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

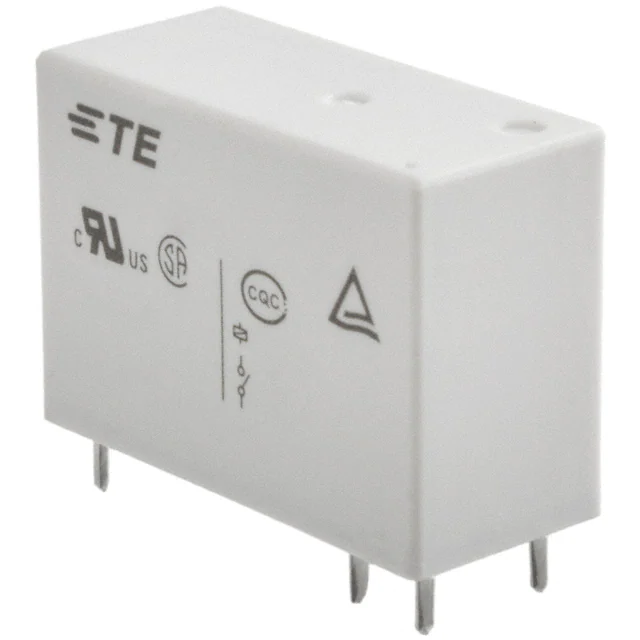

OZ-SS-124DM1,200RELAY GEN PURPOSE SPST 16A 24V |
7,458 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 29.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OZT-SS-112LM1,200RELAY GEN PURPOSE SPST 8A 12V |
6,488 |
|
Datasheet |
OZT, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OZ-SS-112DM1,200RELAY GEN PURPOSE SPST 16A 12V |
8,070 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OZ-SS-148LM1,200RELAY GEN PURPOSE SPST 16A 48V |
2,882 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 10.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 36 VDC | 2.4 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PCK-112D2M,000RELAY GEN PURPOSE SPST 16A 12V |
4,208 |
|
Datasheet |
PCK, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OSA-SH-224DM3,000RELAY GEN PURPOSE DPST 3A 24V |
2,392 |
|
Datasheet |
OSA, OEG | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
OZ-SS-103LM1,200RELAY GEN PURPOSE SPST 16A 3V |
5,334 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 176 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 2.25 VDC | 0.15 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-112LM,300RELAY GEN PURPOSE SPST 16A 12V |
9,496 |
|
Datasheet |
OMIH, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC | - | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OJ-SS-148HM,000RELAY GEN PURPOSE SPST 10A 48V |
5,478 |
|
Datasheet |
OJ, OEG | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 9.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 2.4 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
OJ-SS-109LMH,000RELAY GEN PURPOSE SPST 8A 9V |
4,900 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.45 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OMIT-SS-112DM,300RELAY GEN PURPOSE SPST 10A 12V |
6,072 |
|
Datasheet |
OMIT, OEG | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OJ-SH-106LMH,000RELAY GEN PURPOSE SPST 8A 6V |
5,664 |
|
Datasheet |
OJ, OEG | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.3 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OZ-SH-124L,294RELAY GEN PURPOSE SPDT 16A 24V |
8,100 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OZ-SH-124LM1,294RELAY GEN PURPOSE SPST 16A 24V |
5,510 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OZ-SS-105LM1,200RELAY GEN PURPOSE SPST 16A 5V |
9,254 |
|
Datasheet |
OZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMI-SH-105L,394RELAY GEN PURPOSE SPDT 10A 5V |
3,740 |
|
- |
OMI, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 108 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-105D,394RELAY GEN PURPOSE SPDT 16A 5V |
4,942 |
|
Datasheet |
OMIH, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 144 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-124LM,394RELAY GEN PURPOSE SPST 16A 24V |
3,492 |
|
Datasheet |
OMIH, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC | - | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OMIH-SH-112DM,394RELAY GEN PURPOSE SPST 16A 12V |
8,628 |
|
Datasheet |
OMIH, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC | - | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
