Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1608065-9RELAY GEN PURPOSE DPDT 20A 24V |
2,898 |
|
- |
187 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HL1-H-DC12V-FRELAY GEN PURPOSE SPDT 15A 12V |
3,736 |
|
Datasheet |
HL | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

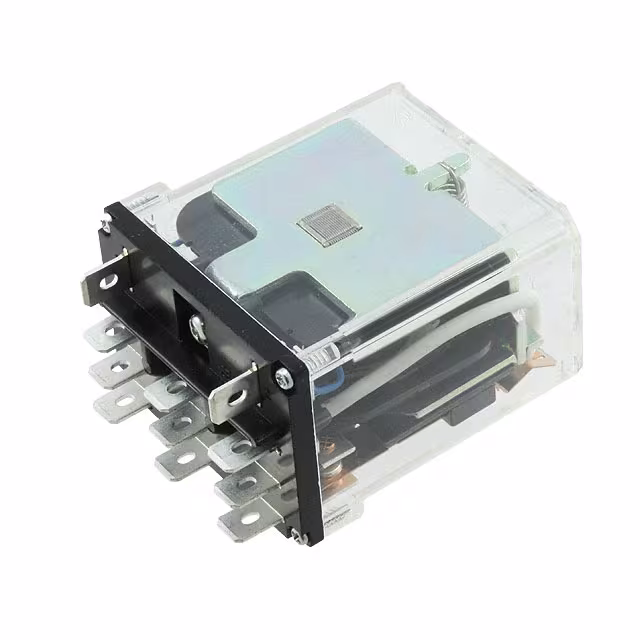

HG3-AC115V-FRELAY GEN PURPOSE 3PDT 20A 115V |
7,988 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 45.2 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 92 VAC | 34.5 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADQM1604HRELAY GEN PURPOSE SPST 60A 4.5V |
2,738 |
|
Datasheet |
ADQM | Tube | Obsolete | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 111 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 3.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
ADQM26012RELAY GEN PURPOSE SPST 60A 12V |
3,720 |
|
Datasheet |
ADQM | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 83.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
AHK22124RELAY GEN PURPOSE DPDT 10A 24V |
8,392 |
|
Datasheet |
AHK | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 37 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HC1E-HP-DC24V-FRELAY GEN PURPOSE SPDT 5A 24V |
4,802 |
|
Datasheet |
HC | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 37 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
HC1-H-AC240V-FRELAY GEN PURPOSE SPDT 10A 240V |
4,832 |
|
Datasheet |
HC | Bulk | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
HC2E-H-DC24V-FRELAY GEN PURPOSE DPDT 3A 24V |
7,752 |
|
Datasheet |
HC | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 37 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
HC2-HP-AC115V-FRELAY GEN PURPOSE DPDT 7A 115V |
6,268 |
|
Datasheet |
HC | Bulk | Obsolete | Through Hole | 115VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 11.4 mA | Non Latching | - | PC Pin | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-HP-DC12V-FRELAY GEN PURPOSE DPDT 7A 12V |
6,084 |
|
Datasheet |
HC | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-HP-DC24V-FRELAY GEN PURPOSE DPDT 7A 24V |
9,616 |
|
Datasheet |
HC | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC4-H-AC120VRELAY GEN PURPOSE 4PDT 5A 120V |
3,826 |
|
Datasheet |
HC | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 10.9 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

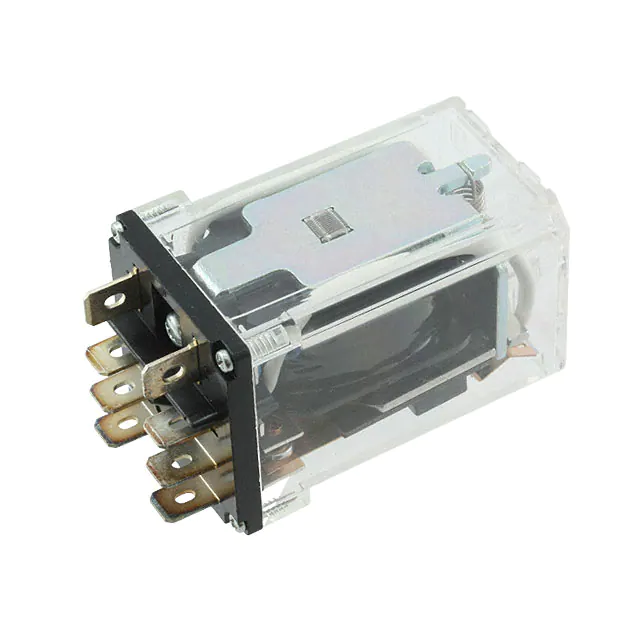

HG2-AC115V-FRELAY GEN PURPOSE DPDT 20A 115V |
4,290 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 31.3 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 92 VAC | 34.5 VAC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

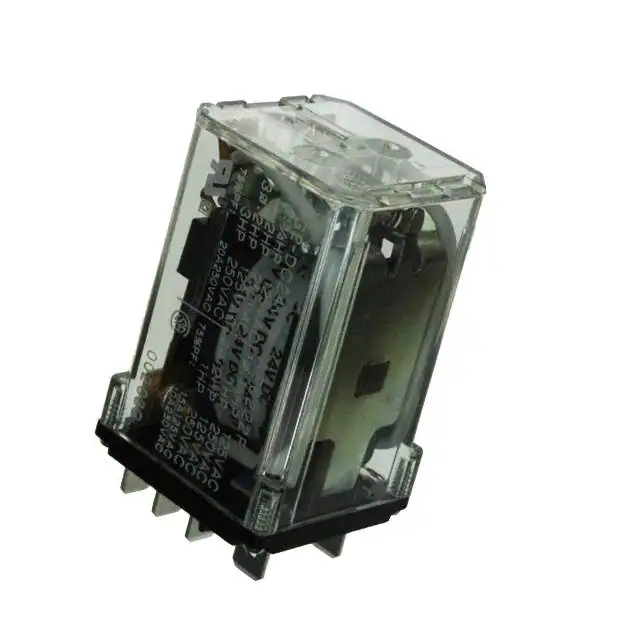

HG2-DC24V-FRELAY GEN PURPOSE DPDT 20A 24V |
7,968 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | - | 57.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

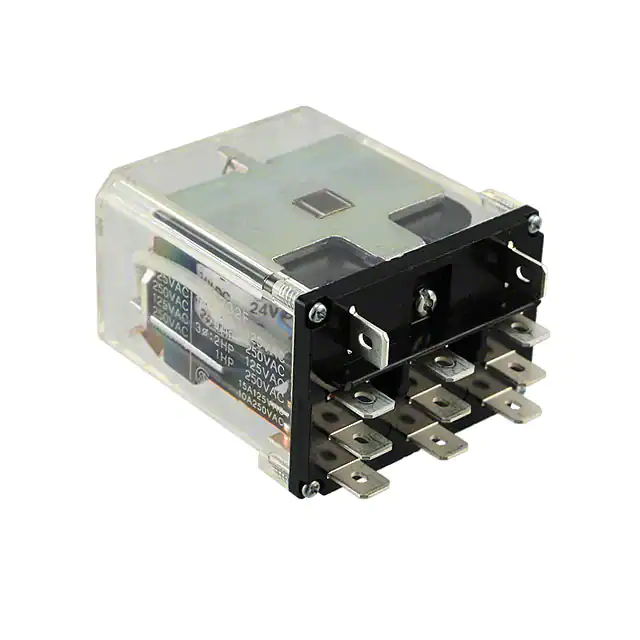

HG3-DC24V-FRELAY GEN PURPOSE 3PDT 20A 24V |
8,974 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | - | 66 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

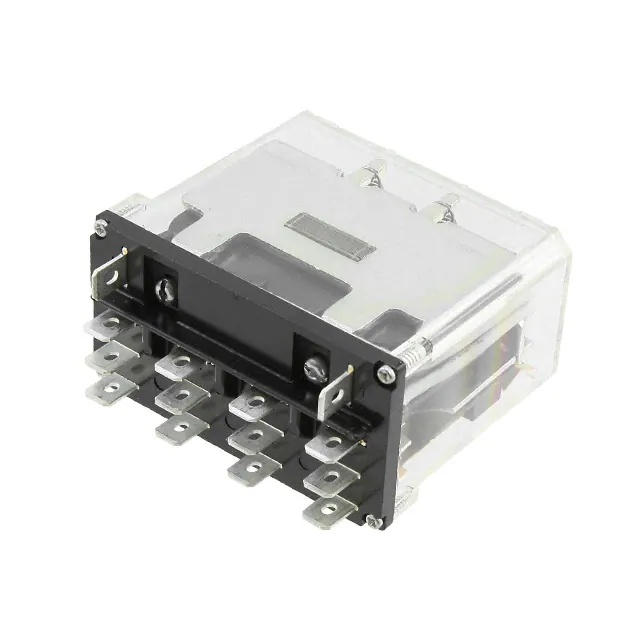

HG4-AC115V-FRELAY GEN PURPOSE 4PDT 20A 115V |
2,966 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | - | 66.1 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 92 VAC | 34.5 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HG4-DC110V-FRELAY GEN PURPOSE 4PDT 20A 110V |
9,912 |
|
Datasheet |
HG | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | - | 20.3 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 88 VDC | 11 VDC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
HL1-H-DC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
6,660 |
|
Datasheet |
HL | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

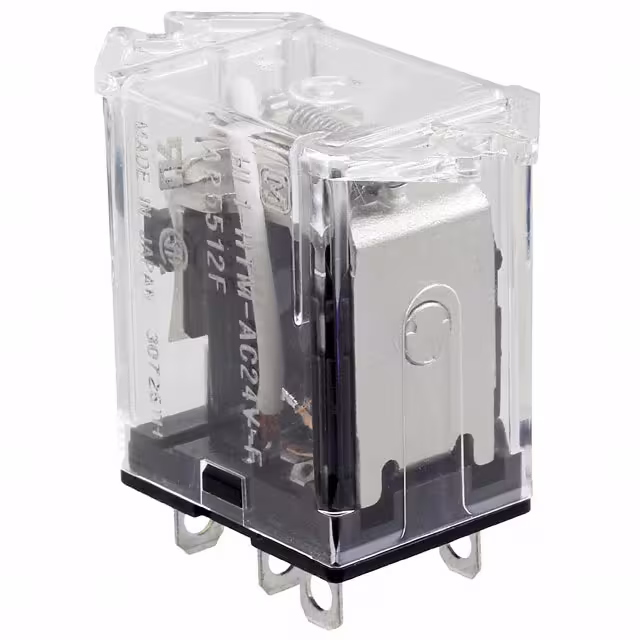

HL1-HTM-AC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
9,568 |
|
Datasheet |
HL | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 50 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
