Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

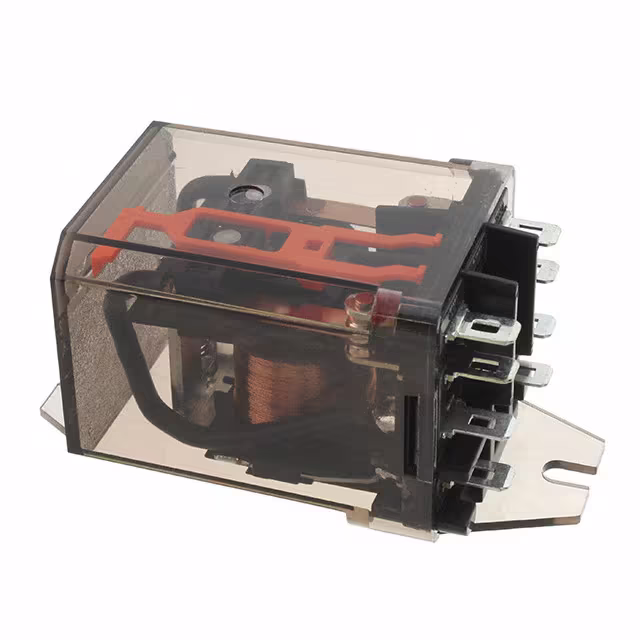

RM203012RELAY GEN PURPOSE DPDT 16A 12V |
5,244 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 109 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM607024RELAY GEN PURPOSE 3PST 10A 24V |
6,414 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 4000VA | 70.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM507048RELAY GEN PURPOSE DPST 16A 48V |
6,332 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 48VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 35.4 mA | Non Latching | - | PC Pin | - | - | 36 VDC | 4.8 VDC | 15 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM207024RELAY GEN PURPOSE DPDT 16A 24V |
2,420 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 50 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-5DG-6RELAY GEN PURPOSE SPDT 10A 6V |
7,106 |
|
Datasheet |
KRPA | Bulk | Obsolete | Socketable | 6VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 188 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 4.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-14AG-12RELAY GEN PURPOSE 3PDT 10A 12V |
2,274 |
|
Datasheet |
KRPA | Bulk | Obsolete | Socketable | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUGP-7A55-120RELAY GEN PURPOSE DPST 10A 120V |
4,048 |
|
Datasheet |
KUGP | Bulk | Obsolete | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

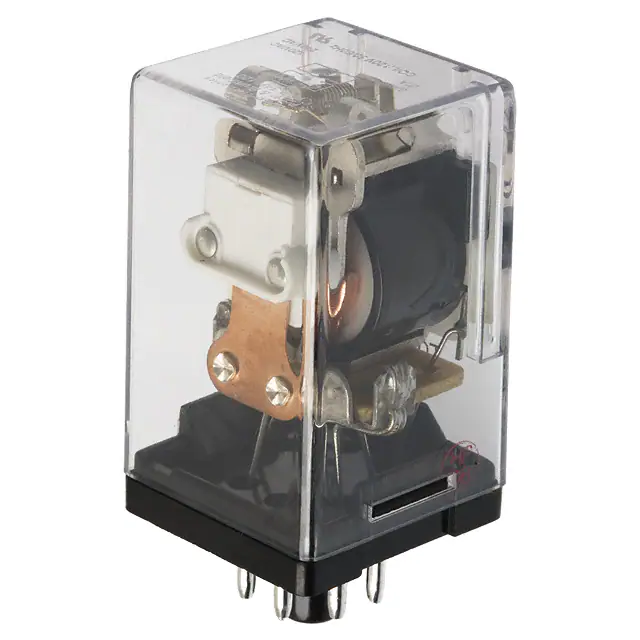

KRP-3DH-24RELAY GEN PURPOSE SPST 20A 24V |
3,422 |
|
Datasheet |
KRP | Bulk | Obsolete | Socketable | 24VDC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | 4800VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUMP-14D58-24RELAY GEN PURPOSE 3PDT 15A 24V |
2,966 |
|
Datasheet |
KUMP | Bulk | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

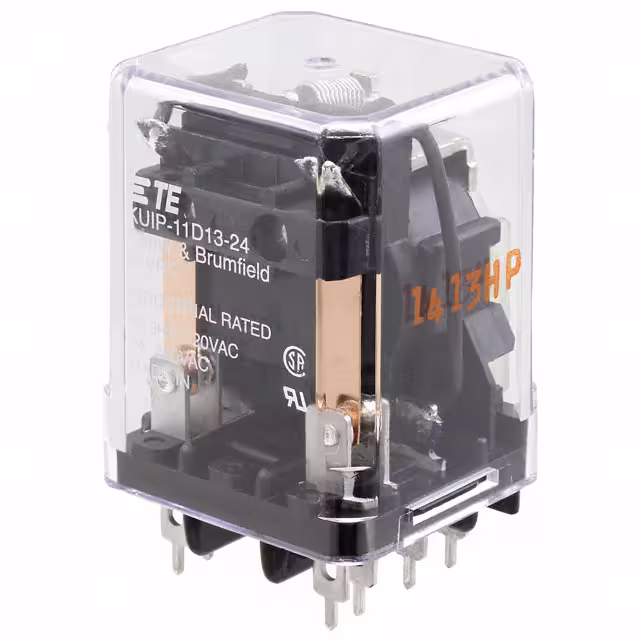

KUIP-11D13-24RELAY GEN PURPOSE DPDT 5A 24V |
2,566 |
|
Datasheet |
KUIP | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver (Ag) | General Purpose | - | - |
|
KUIP-11A15-24RELAY GEN PURPOSE DPDT 10A 24V |
9,936 |
|
Datasheet |
KUIP | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-5AT1-240RELAY GEN PURPOSE SPDT 30A 240V |
7,984 |
|
Datasheet |
KUHP | Bulk | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 30 A | 240VAC - Max | 7200VA | 12 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUHP-5A51-240RELAY GEN PURPOSE SPDT 30A 240V |
8,110 |
|
Datasheet |
KUHP | Bulk | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 30 A | 240VAC - Max | 7200VA | 12 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUIP-11A55-120RELAY GEN PURPOSE DPDT 10A 120V |
6,596 |
|
Datasheet |
KUIP | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUIP-11D55-24RELAY GEN PURPOSE DPDT 10A 24V |
6,650 |
|
Datasheet |
KUIP | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUIP-14D15-12RELAY GEN PURPOSE 3PDT 10A 12V |
3,466 |
|
Datasheet |
KUIP | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

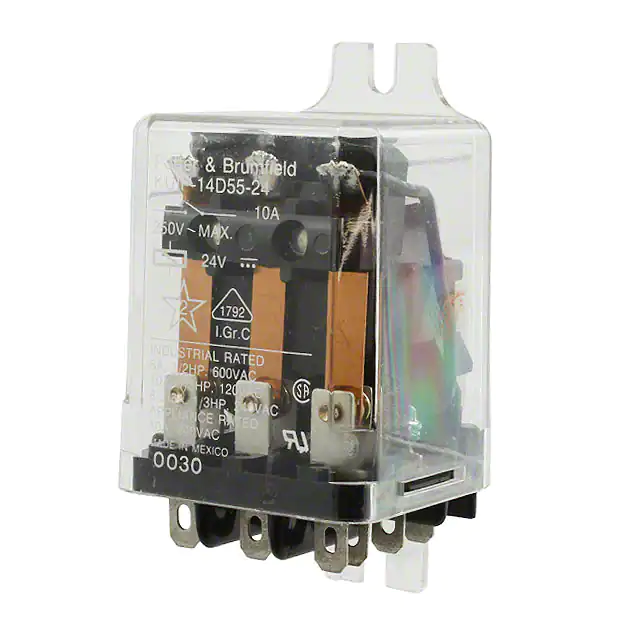

KUIP-14D55-24RELAY GEN PURPOSE 3PDT 10A 24V |
3,384 |
|
Datasheet |
KUIP | Bulk | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUIP-14A15-120RELAY GEN PURPOSE 3PDT 10A 120V |
4,516 |
|
Datasheet |
KUIP | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OSA-SH-212DM3,000MRELAY GEN PURPOSE DPST 3A 12V |
2,436 |
|
Datasheet |
OSA, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
OSA-SH-224DM3,000MRELAY GEN PURPOSE DPST 3A 24V |
4,626 |
|
Datasheet |
OSA, OEG | Tube | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | General Purpose | - | - |
