Voltage Regulators - Linear + Switching
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Topology | Number of Outputs | Frequency - Switching | Voltage/Current - Output 1 | Voltage/Current - Output 2 | Voltage/Current - Output 3 | w/LED Driver | w/Supervisor | w/Sequencer | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6446IAZIC REG TRPL BUCK/LNR SYNC 24QSOP |
8,250 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 100kHz ~ 2.6MHz | Controller | Controller | Controller | No | No | No | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
|
ISL6446IAZ-TKIC REG TRPL BUCK/LNR SYNC 24QSOP |
5,076 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 100kHz ~ 2.6MHz | Controller | Controller | Controller | No | No | No | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
ISL6534CV-TR5229IC REG TRP BK/LNR SYNC 24EPTSSOP |
6,636 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 300kHz ~ 1MHz | Controller | Controller | Controller | No | No | Yes | 3.3V ~ 12V | 0°C ~ 70°C | - | - | Surface Mount | 24-TSSOP-EP |
|
AN30185A-VLIC REG TRPL BUCK/LNR SYNC 24HQFN |
7,950 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 1.2MHz | 1V, 800mA | 1.8V, 800mA | 0.9V, 10mA | No | No | No | 2.9V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HQFN (4x4) |
|
|
AN30181A-VLIC REG TRPL BUCK/LNR SYNC 24HQFN |
9,844 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 1.2MHz | 1.2V, 800mA | 1.8V, 800mA | 0.9V, 10mA | No | No | No | 2.9V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-HQFN (4x4) |
|

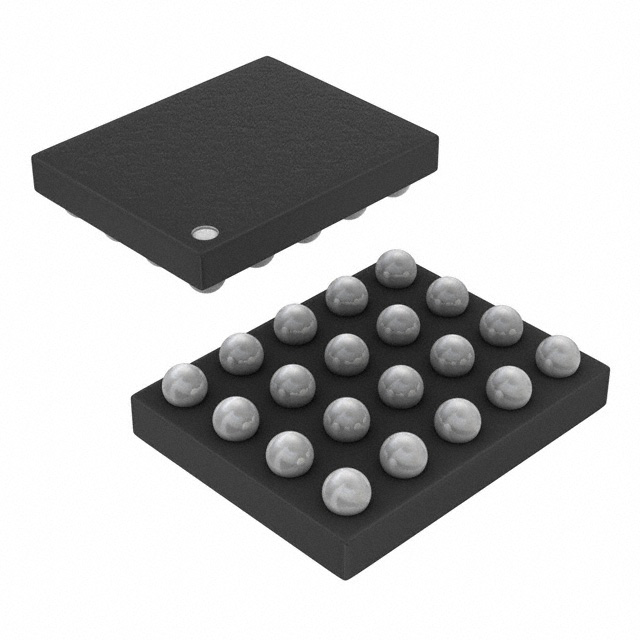

AN30183A-PRIC REG 5OUT BCK/LNR SYNC 20WLCSP |
7,376 |
|
- |
- | 20-VFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (4) | 5 | 3MHz | 0.8V ~ 2.4V, 600mA | 1V ~ 3.3V, 300mA | 1V ~ 3.3V, 300mA | No | No | No | 1.7V ~ 5.5V | -30°C ~ 85°C | - | - | Surface Mount | 20-WLCSP (1.56x2.06) |
|

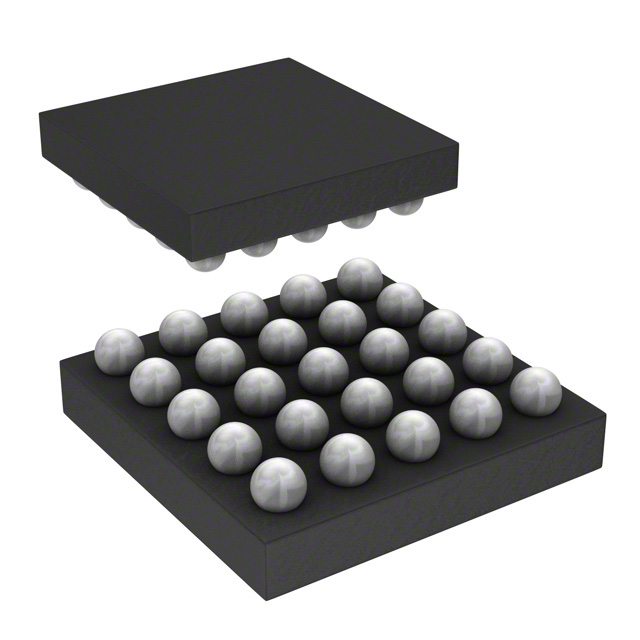

AN30182A-PBIC REG 8OUT BCK/LNR SYNC 25WLCSP |
5,342 |
|
- |
- | 25-VFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (6) | 8 | 3MHz | 0.8V ~ 2.4V, 600mA | 0.8V ~ 2.4V, 600mA | 1V ~ 3.3V, 300mA | No | No | No | 1.7V ~ 5.5V | -30°C ~ 85°C | - | - | Surface Mount | 25-WLCSP (2.15x2.15) |
|
|
ISL6446AIAZ-TKIC REG TRPL BUCK/LNR SYNC 24QSOP |
2,584 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 100kHz ~ 2.6MHz | Controller | Controller | Controller | No | No | No | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
|
ISL6446IAZ-T7IC REG TRPL BUCK/LNR SYNC 24QSOP |
2,896 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 100kHz ~ 2.6MHz | Controller | Controller | Controller | No | No | No | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
RT9296GQWIC REG DL BOOST/LNR SYNC 10WDFN |
4,728 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) | 2 | 1.2MHz | Adj to 0.5V, 2A | Controller | - | No | No | No | 1.2V ~ 5V | -40°C ~ 85°C | - | - | Surface Mount | 10-WDFN (3x3) |
|

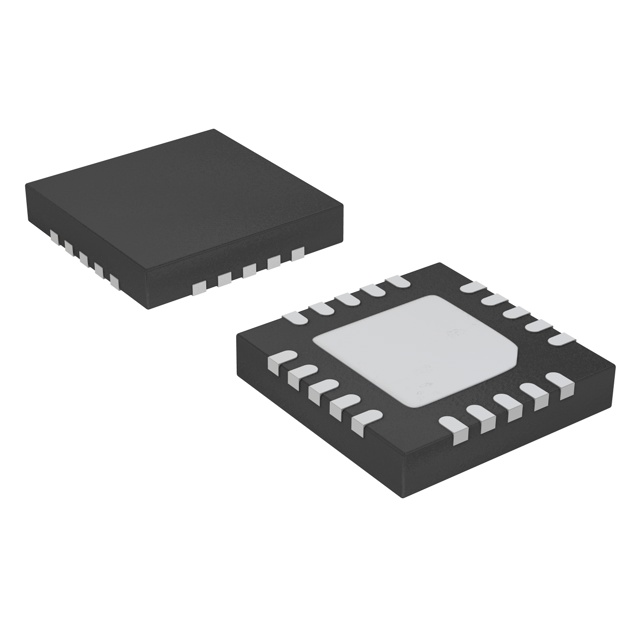

AAT2614IDG-2-T1IC REG 5OUT BUCK/LNR SYNC 20TQFN |
4,950 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (4) | 5 | 1.7MHz | 1.2V, 600mA | 1.8V, 300mA | 2.8V, 300mA | No | No | No | 2.5V ~ 5.5V | -40°C ~ 150°C | - | - | Surface Mount | 20-TQFN (3x3) |
.jpg)
|
AAT2500IWP-AW-T1IC REG DL BUCK/LNR SYNC 12TDFN |
8,572 |
|
Datasheet |
TPMIC™ | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 1MHz | 0.6V ~ 2.5V, 400mA | 3.3V, 300mA | - | No | No | No | 2.7V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 12-TDFN (3x3) |
|
PM6681AIC REG QUAD BUCK/LINEAR 32VFQFPN |
2,012 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tray | Active | Step-Down (Buck) (2), Linear (LDO) (2) | 4 | Down to 33kHz | 0.9V ~ 5V, 100mA | 0.9V ~ 3.3V, 100mA | 5V, 100mA | No | No | No | 4.5V ~ 36V | -40°C ~ 85°C | - | - | Surface Mount | 32-VFQFPN (5x5) |
|
RAA230214GSB#HA0IC REG DL BUCK/LNR SYNC 20TSSOP |
6,340 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tray | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 1MHz | 3.3V, 3A | 3.3V, 500mA | - | No | No | No | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 20-TSSOP |
|
|
RAA230215GSB#HA0IC REG DL BUCK/LNR SYNC 20TSSOP |
7,666 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tray | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 1MHz | 0.9V ~ 4.4V, 3A | 0.9V ~ 4.4V, 500mA | - | No | No | No | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 20-TSSOP |
|
RAA230407GNP#HA0IC REG QD BUCK/LNR SYNC 32VQFN |
9,312 |
|
Datasheet |
- | 32-VQFN | Tray | Obsolete | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 1.3MHz ~ 2.2MHz | 3V, 500mA | 3V, 100mA | 0.9V ~ 4.95V, 1.5A | No | No | No | 2.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-VQFN (5x5) |
|
|
RAA230409GNP#HA0IC REG QD BUCK/LNR SYNC 32VQFN |
5,558 |
|
Datasheet |
- | 32-VQFN | Tray | Obsolete | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 1.3MHz ~ 2.2MHz | 0.9V ~ 4.95V, 500mA | 0.9V ~ 4.95V, 100mA | 0.9V ~ 4.95V, 1.5A | No | No | No | 2.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-VQFN (5x5) |
|
XRP9711EY-FIC REG TRPL BUCK/LNR SYNC 45LGA |
5,862 |
|
Datasheet |
- | 45-BLGA | Tray | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 126kHz ~ 1.23MHz | 0.6V ~ 5.5V, 6A | 0.6V ~ 5.5V, 6A | 5V, 135mA | No | No | Yes | 4.75V ~ 22V | -40°C ~ 125°C | - | - | Surface Mount | 45-LGA (12x12) |
|
XRP7725ILB-FIC REG 6OUT BUCK/LINEAR 44TQFN |
2,638 |
|
Datasheet |
- | 44-WFQFN Exposed Pad | Tray | Obsolete | Step-Down (Buck) (4), Linear (LDO) (2) | 6 | 105kHz ~ 1.23MHz | Controller | Controller | Controller | No | No | Yes | 4.75V ~ 25V | -40°C ~ 125°C | - | - | Surface Mount | 44-TQFN (7x7) |
|
MB39C022GPN-G-ERE1IC REG DL BUCK/LINEAR SYNC 10SON |
9,598 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 2MHz | 0.8V ~ 4.5V, 600mA | 3.3V, 300mA | - | No | No | No | 2.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 10-SON (3x3) |
