Voltage Regulators - Linear + Switching
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Topology | Number of Outputs | Frequency - Switching | Voltage/Current - Output 1 | Voltage/Current - Output 2 | Voltage/Current - Output 3 | w/LED Driver | w/Supervisor | w/Sequencer | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPQ1530DQ-LF-ZIC REG LINEAR POS/NEG ADJ 16QFN |
8,000 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up (Boost) (1), Linear (LDO) (1), Linear (LDO) (1) | 3 | 1.4MHz | 22V, 3.6A | -20V, 20mA | 38V, 20mA | No | No | Yes | 2.7V ~ 5.5V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
RAA271082A4HNP#AA0RAA271082 AUTOMOTIVE GRADE -1 PO |
9,472 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tray | Active | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 2.2MHz | 2.8V ~ 5.05V, 1A | 0.85V ~ 3.3V, 1A | 0.85V ~ 3.3V, 1A | No | No | Yes | 4V ~ 42V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-SCQFN (4x4) |
|
MAX15022ATI+IC REG QUAD BUCK/LNR SYNC 28TQFN |
4,232 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 500kHz ~ 4MHz | 0.6V ~ 5.5V, 4A | 0.6V ~ 5.5V, 2A | Controller | No | No | Yes | 2.5V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 28-TQFN (5x5) |
|
MAX25249ATPB/VY+HV ASIL-B CAMERA PMIC |
860 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 2.2MHz | 3V ~ 4V, 1A | 0.8V ~ 3.9875V, 1.2A | 0.8V ~ 3.9875V, 1.2A | No | No | No | 4.5V ~ 36V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 20-WETQFN (3.5x3.5) |
|
MAX20030CATMA/V+2.2MHZ DUAL SYNCHRONOUS STEP-DOW |
774 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) Synchronous (2), Step-Up (Boost) (1), Linear (LDO) (1) | 4 | 220kHz ~ 2.2MHz | 5V | 3.3V | Controller | No | No | No | 3.5V ~ 42V | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 48-SWTQFN (7x7) |
|
|
MAX25249ATPK/VY+ASIL B MINI PMIC FOR CAMERA SENS |
1,398 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tray | Active | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 2.2MHz | Programmable, Programmable, Programmable, 3V ~ 5V, 1A | Programmable, Programmable, Programmable, 0.8V ~ 3.9875V, 1.2A | Programmable, Programmable, Programmable, 0.8V ~ 3.9875V, 1.2A | No | No | No | 5V ~ 36V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 20-WETQFN (3.5x3.5) |
|
A8450KLBTR-TIC REG QUAD BUCK/LINEAR 24SOIC |
10,752 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (4) | 4 | - | 3.3V, 200mA | 1.2V ~ 3.3V, 200mA | 5V, 200mA | No | No | Yes | 6V ~ 45V | -40°C ~ 135°C | - | - | Surface Mount | 24-SOIC |
|
LT3694EUFD-1#PBFIC REG TRIPLE BUCK/LINEAR 28QFN |
2,470 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
|
ADP5033ACBZ-12-R7DUAL 800MA BUCK REG W/2 300MA LD |
6,000 |
|
Datasheet |
- | 16-WFBGA, WLCSP | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 3MHz | Fixed, Fixed, Fixed, -, 800mA | Fixed, Fixed, Fixed, -, 800mA | Fixed, Fixed, Fixed, -, 300mA | No | No | No | 1.7V ~ 5.5V | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-WLCSP (2x2) |
|
LT3500IMSE#PBFIC REG DL BUCK/LINEAR 16MSOP |
5,652 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | 500kHz ~ 2.4MHz | 0.8V ~ 38.9V, 2A | Adjustable, 13mA | - | No | No | No | 3V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|

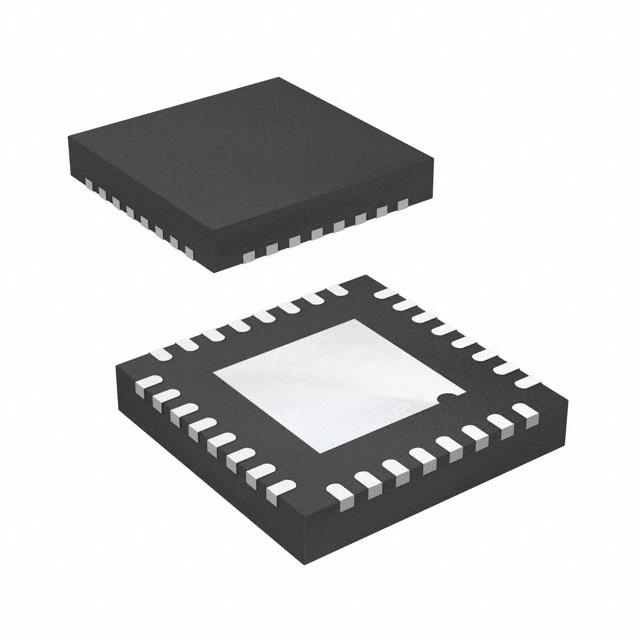

BD95602MUV-LBE2IC REG QD BUCK/LNR VQFN032V5050 |
5,000 |
|
Datasheet |
H³Reg™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 150kHz ~ 500kHz | 1V ~ 5.5V, - | 1V ~ 5.5V, - | 3.3V, 50mA | No | No | No | 5.5V ~ 28V | -20°C ~ 85°C | - | - | Surface Mount | VQFN032V5050 |
|
|
LT3694IUFD#PBFIC REG TRIPLE BUCK/LINEAR 28QFN |
2,848 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
|
|
LT3694IUFD-1#PBFIC REG TRIPLE BUCK/LINEAR 28QFN |
3,290 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
|
MP4255GVE-0001-P36V, 3A, DUAL-CHANNEL BUCK CONVE |
1,000 |
|
Datasheet |
- | 21-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 250kHz, 420kHz, 1.1MHz, 2.1MHz | 1V ~ 36V, 3A | 1V ~ 36V, 3A | Adjustable, Adjustable, Fixed, 6V, 1mA | No | No | No | 4V ~ 36V | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 21-QFN (4x5) |
|
|
MP4255GVE-0000-P36V, 3A, DUAL-CHANNEL BUCK CONVE |
1,000 |
|
Datasheet |
- | 21-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 250kHz, 420kHz, 1.1MHz, 2.1MHz | 1V ~ 36V, 3A | 1V ~ 36V, 3A | Adjustable, Adjustable, Fixed, 6V, 1mA | No | No | No | 4V ~ 36V | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 21-QFN (4x5) |
|
|
RAA271082A4HNP#HA0RAA271082 AUTOMOTIVE GRADE -1 PO |
11,752 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 2.2MHz | 2.8V ~ 5.05V, 1A | 0.85V ~ 3.3V, 1A | 0.85V ~ 3.3V, 1A | No | No | Yes | 4V ~ 42V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-SCQFN (4x4) |
|
LT3694IFE-1#PBFIC REG TRIPLE BUCK/LNR 20TSSOP |
5,908 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP-EP |
|
MAX20031BATMF/V+2.2MHZ DUAL SYNCHRONOUS STEP-DOW |
1,118 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) Synchronous (2), Step-Up (Boost) (1), Linear (LDO) (1) | 4 | 220kHz ~ 2.2MHz | 1V ~ 10V, 20A | 1V ~ 10V, 20A | Adjustable, 1.005V ~ 42V | No | No | No | 3.5V ~ 42V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 48-TQFN (7x7) |
|
|
MAX20031CATMD/V+2.2MHZ DUAL SYNCHRONOUS STEP-DOW |
774 |
|
Datasheet |
- | 48-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) Synchronous (2), Step-Up (Boost) (1), Linear (LDO) (1) | 4 | 220kHz ~ 2.2MHz | 1V ~ 10V, 20A | 1V ~ 10V, 20A | Adjustable, 1.005V ~ 42V | No | No | No | 3.5V ~ 42V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 48-TQFN (7x7) |
|
|
RAA271082A4HNP#MA0RAA271082 AUTOMOTIVE GRADE -1 PO |
458 |
|
Datasheet |
- | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (3), Linear (LDO) (1) | 4 | 2.2MHz | 2.8V ~ 5.05V, 1A | 0.85V ~ 3.3V, 1A | 0.85V ~ 3.3V, 1A | No | No | Yes | 4V ~ 42V | -55°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-SCQFN (4x4) |
