Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS79921YZUTIC REG LINEAR 2.1V 200MA 5DSBGA |
9,860 |
|
Datasheet |
- | 5-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.1V | - | 0.18V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
LF60ABVIC REG LINEAR 6V 500MA TO220AB |
8,544 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 16V | 6V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 75dB ~ 60dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
UA79M12CKCIC REG LINEAR FIXED STNDRD REG |
7,160 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MIC5331-MNYMT-TRIC REG LINEAR 2.8V/2.85V 8MLF |
6,592 |
|
Datasheet |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.8V, 2.85V | - | 0.24V @ 300mA, 0.24V @ 300mA | 300mA, 300mA | 50 µA | 75 µA | 65dB ~ 45dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
MAX1976EZT160+IC REG LINEAR 300MA LDO REG |
5,950 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | Positive | Fixed | 1 | 3.6V | 1.6V | - | 0.2V @ 300mA | 300mA | 140 µA | - | 70dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
LD39115J18RIC REG LIN 1.8V 150MA 4FLIPCHIP |
5,552 |
|
Datasheet |
- | 4-UFBGA, FCBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.11V @ 100mA | 150mA | 50 µA | 70 µA | 74dB ~ 67dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-FlipChip |
|
MIC5216-3.3BMMIC REG LINEAR 3.3V 500MA 8MSOP |
3,582 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 3 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
AP1086DL-13IC REG LIN POS ADJ 1.5A TO252-3 |
3,412 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 5V | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
AP1084T15L-UIC REG LINEAR 1.5V 5A TO220-3 |
2,160 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 12V | 1.5V | - | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|

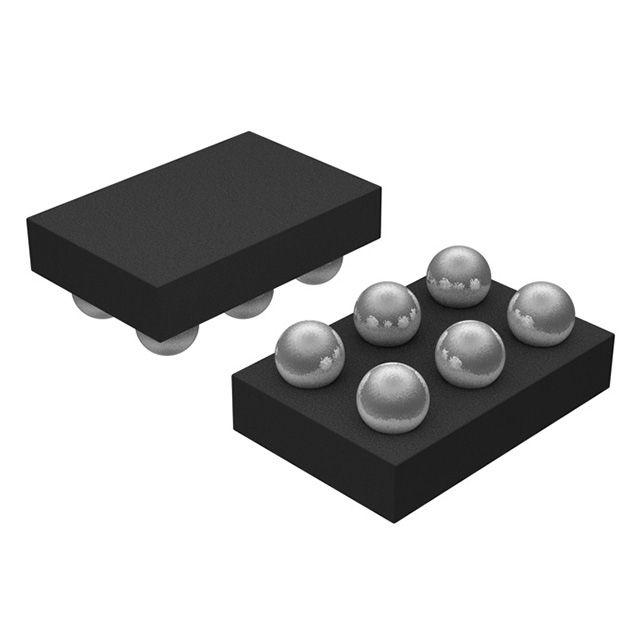

ADP221ACDZ-1818-R7IC REG LINEAR 1.8V/1.8V 6WLCSP |
3,008 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 120 µA | 220 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.46x0.96) |
|
NCV1117ST15T3GIC REG LINEAR 1.5V 1A SOT223 |
7,458 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223 |
|
NCV8702MX28TCGIC REG LINEAR 2.8V 200MA 6XDFN |
2,272 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.2V @ 200mA | 200mA | 16 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
NCV4299APA50R2GIC REG LINEAR 5V 150MA 14TSSOP |
2,982 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 90 µA | 2 mA | 66dB (100Hz) | Enable, Reset | Antisaturation, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
UA78L15ACDIC REG LINEAR 15V 100MA 8SOIC |
2,502 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 30V | 15V | - | 1.7V @ 40mA | 100mA | - | - | 39dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5330-OGYML-TRIC REG LINEAR 1.8V/2.9V 8MLF |
9,930 |
|
Datasheet |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.9V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
|
MIC5330-PJYML-TRIC REG LINEAR 2.5V/3V 8MLF |
9,376 |
|
Datasheet |
- | 8-VFDFN Exposed Pad, 8-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.5V, 3V | - | 0.2V @ 300mA, 0.2V @ 300mA | 300mA, 300mA | 120 µA | 200 µA | 70dB ~ 65dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MLF® (2x2) |
|
LP3999ITLX-3.3/NOPBIC REG LINEAR 3.3V 150MA 5DSBGA |
6,000 |
|
Datasheet |
- | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
|
LP3999ITLX-2.8/NOPBIC REG LINEAR 2.8V 150MA 5DSBGA |
5,760 |
|
Datasheet |
- | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.1V @ 150mA | 150mA | 150 µA | 200 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
RT9078N-12GJ5IC REG LIN 1.2V 300MA TSOT23-5 |
5,118 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.57V @ 300mA | 300mA | 4 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
__2.jpg)
|
LM217MDTIC REG LINEAR POS ADJ 500MA DPAK |
4,960 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 100 µA | - | 75dB ~ 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
