Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM7150ARDZ-5.0IC REG LINEAR 5V 800MA 8SOIC |
3,068 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 16V | 5V | - | 1V @ 800mA | 800mA | 7 mA | 12 mA | 95dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
LT3008MPTS8#TRMPBFIC REG LIN POS ADJ 20MA TSOT23-8 |
3,004 |
|
Datasheet |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.5V @ 20mA | 20mA | 6 µA | 1.2 mA | 70dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | TSOT-23-8 |
|
|
ADM7150ARDZ-3.3-R7IC REG LINEAR 3.3V 800MA 8SOIC |
2,592 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | - | 800mA | 7 mA | 12 mA | 94dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
ADM7150ACPZ-3.3-R7IC REG LINEAR 3.3V 800MA 8LFCSP |
1,914 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | - | 800mA | 7 mA | 12 mA | 94dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
|
ADM7151ARDZ-04-R7IC REG LIN POS ADJ 800MA 8SOIC |
1,016 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.5V | 5.1V | 1.2V @ 800mA | 800mA | 7 mA | 12 mA | 94dB ~ 53dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
ADM7150ACPZ-5.0-R7IC REG LINEAR 5V 800MA 8LFCSP |
794 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 1V @ 800mA | 800mA | 7 mA | 12 mA | 95dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
|
ADM7150ARDZ-3.3IC REG LINEAR 3.3V 800MA 8SOIC |
666 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 16V | 3.3V | - | - | 800mA | 7 mA | 12 mA | 94dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
|
ADM7151ARDZ-04IC REG LIN POS ADJ 800MA 8SOIC |
432 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 16V | 1.5V | 5.1V | 1.2V @ 800mA | 800mA | 7 mA | 12 mA | 94dB ~ 53dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
|
ADM7150ACPZ-3.3-R2IC REG LINEAR 3.3V 800MA 8LFCSP |
240 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | - | 800mA | 7 mA | 12 mA | 94dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
|
ADM7150ACPZ-5.0-R2IC REG LINEAR 5V 800MA 8LFCSP |
4,516 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 1V @ 800mA | 800mA | 7 mA | 12 mA | 95dB ~ 62dB (1kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
ADP1762ACPZ-1.0-R7IC REG LINEAR 1V 2A 16LFCSP |
11,634 |
|
Datasheet |
- | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 1.98V | 1V | - | 0.095V @ 2A | 2A | 8 mA | 14 mA | 63dB ~ 34dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Current Limit, Thermal Overload | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
ADP1762ACPZ-R7IC REG LINEAR POS ADJ 2A 16LFCSP |
4,954 |
|
Datasheet |
- | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 1.98V | 0.5V | 1.5V | 0.095V @ 2A | 2A | 8 mA | 14 mA | 63dB ~ 34dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Current Limit, Thermal Overload | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (3x3) |
|

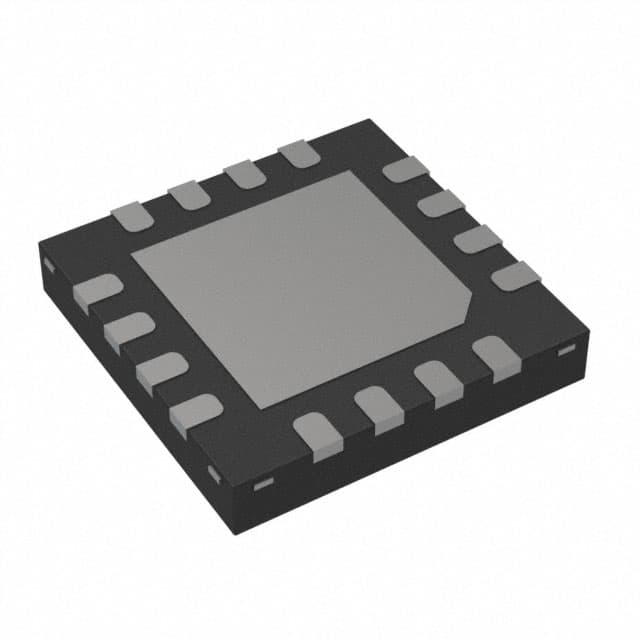

TPS7A5701RTER5-A, LOW-VIN, LOW-NOISE, HIGH-AC |
5,224 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.5V | 5.2V | 0.11V @ 5A | 5A | 6.5 mA | 24 mA | 40dB ~ 36dB (1MHz) | Current Limit, Enable, Power Good, Soft Start, Tracking | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-WQFN (3x3) |
|
LT1129IQ-5#TRPBFIC REG LINEAR 5V 700MA 5DDPAK |
5,802 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT1129IQ-3.3#PBFIC REG LINEAR 3.3V 700MA 5DDPAK |
4,954 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT1129IQ#PBFIC REG LIN POS ADJ 700MA 5DDPAK |
3,174 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 30V | 3.8V | 30V | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT1129IQ-3.3#TRPBFIC REG LINEAR 3.3V 700MA 5DDPAK |
3,096 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT1129IQ#TRPBFIC REG LIN POS ADJ 700MA 5DDPAK |
2,692 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 30V | 3.8V | 30V | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
LT3083EDF#PBFIC REG LINEAR POS ADJ 3A 12DFN |
25,230 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 14V | 0V | 14V | 0.42V @ 3A | 3A | 50.5 µA | 1 mA | 85dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x4) |
|
|
LT3083EDF#TRPBFIC REG LINEAR POS ADJ 3A 12DFN |
22,982 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 0V | 14V | 0.42V @ 3A | 3A | 50.5 µA | 1 mA | 85dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x4) |
