Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV571MN10TBGIC REG LINEAR 1V 150MA 6DFN |
5,920 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1V | - | 0.65V @ 10mA | 150mA | 1 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
TPL903230-S5TRLINEAR VOLTAGE REGULATOR IC FIXE |
5,900 |
|
Datasheet |
TPL9032 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 300mA | - | - | 82.1dB ~ 44.7dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPL903225-S5TRLINEAR VOLTAGE REGULATOR IC FIXE |
5,780 |
|
Datasheet |
TPL9032 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | - | - | 82.1dB ~ 44.7dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Current, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPS7B8150DRVRIC POWER |
4,630 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.585V @ 150mA | 150mA | 3.5 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (2x2) |
|
NCP186AMX150TAGIC REG LINEAR 1.5V 1A 8XDFN |
2,136 |
|
Datasheet |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 1A | 140 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-XDFN (1.6x1.2) |
|
TLV71210DSETIC REG LINEAR 1V 300MA 6WSON |
3,000 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | - | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
TPS7A1128PYKARIC REG LINEAR 2.8V 500MA 5DSBGA |
24,000 |
|
Datasheet |
- | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 2.8V | - | 0.07V @ 500mA | 500mA | 2.6 µA | 11 µA | 64dB ~ 35dB (1kHz ~ 1.5MHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-DSBGA |
|
|
TPS7A11105PYKARIC REG LINEAR 1.05V 500MA 5DSBGA |
24,000 |
|
Datasheet |
- | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.05V | - | 0.07V @ 500mA | 500mA | 2.6 µA | 11 µA | 64dB ~ 35dB (1kHz ~ 1.5MHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-DSBGA |
|
|
TPS7A1105PYKARIC REG LINEAR 0.5V 500MA 5DSBGA |
23,524 |
|
Datasheet |
- | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 0.5V | - | 0.07V @ 500mA | 500mA | 2.6 µA | 11 µA | 64dB ~ 35dB (1kHz ~ 1.5MHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-DSBGA |
|
MCP1793T-4102H/DCHIGH INPUT VOLTAGE REGULATOR 4.1 |
7,956 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 55V | 4.1V | - | 1.2V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-5 |
|
NCP715SN18T1GIC REG LINEAR 1.8V 200MA 5TSOP |
6,000 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | - | 200mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-TSOP |
|
|
NCP715SN30T1GIC REG LINEAR 3V 200MA 5TSOP |
6,000 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3V | - | 0.4V @ 50mA | 200mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-TSOP |
|
AP7387-30W5-7LDO CMOS LOWCURR SOT25 T&R 3K |
5,992 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-25 |
|

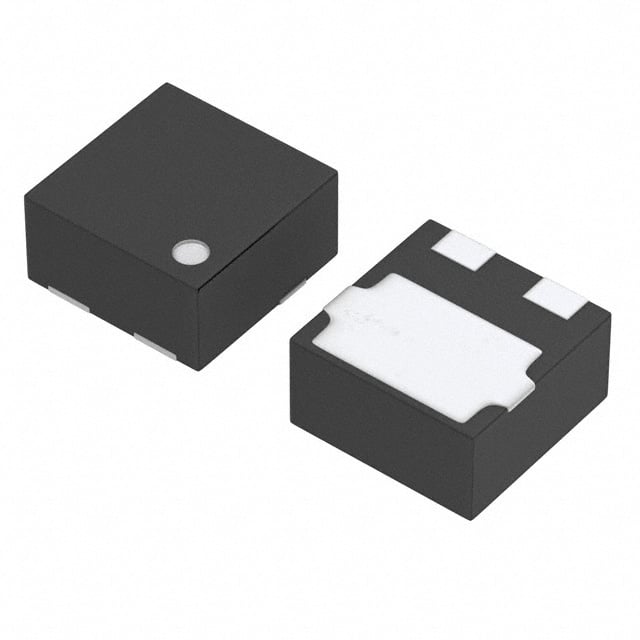

XC6218P182HR-GIC REG LINEAR 1.8V 200MA 3USP |
5,900 |
|
Datasheet |
- | 2-SFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.61V @ 100mA | 200mA | 5 µA | - | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 3-USP (1.2x1.2) |
|
TPS7A1118PDRVRIC REG LINEAR 1.8V 500MA 6WSON |
5,372 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.8V | - | 0.14V @ 500mA | 500mA | 2.6 µA | 11 µA | 64dB ~ 35dB (1kHz ~ 1.5MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
TLV70534YFPTIC REG LINEAR 3.4V 200MA 4DSBGA |
1,500 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.25V @ 200mA | 200mA | 55 µA | 315 µA | 80dB ~ 55dB (10kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA |
|
LDQ40PURLinear IC's |
4,830 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLV705185YFPTIC REG LINEAR 1.85V 200MA 4DSBGA |
1,300 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.85V | - | 0.25V @ 200mA | 200mA | 55 µA | 315 µA | 80dB ~ 55dB (10kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA |
|
|
TPS7A1112PDRVRIC REG LINEAR 1.2V 500MA 6WSON |
2,770 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.2V | - | 0.14V @ 500mA | 500mA | 2.6 µA | 11 µA | 64dB ~ 35dB (1kHz ~ 1.5MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
TPS79933YZUTIC REG LINEAR 3.3V 200MA 5DSBGA |
1,276 |
|
Datasheet |
- | 5-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.16V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
