Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7343-09W5-7IC REG LINEAR 0.9V 300MA SOT25 |
5,916 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 0.9V | - | 0.8V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-18W5-7IC REG LINEAR 1.8V 300MA SOT25 |
5,900 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.8V | - | 0.39V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
TPS71518DCKRM3IC REG LINEAR 1.8V 50MA SC70-5 |
5,848 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | 0.75V @ 50mA | 50mA | 5.8 µA | 5.8 µA | 60dB (100kHz) | Current Limit | Over Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
|
AP7343-28W5-7IC REG LINEAR 2.8V 300MA SOT25 |
5,840 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-30W5-7IC REG LINEAR 3V 300MA SOT25 |
5,820 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3V | - | 0.29V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-33W5-7IC REG LINEAR 3.3V 300MA SOT25 |
5,758 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.29V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343-18W5-7IC REG LINEAR 1.8V 300MA SOT25 |
5,740 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.8V | - | 0.39V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
TPS71550DCKRM3IC REG LINEAR 5V 50MA SC70-5 |
5,718 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 5V | - | 0.75V @ 50mA | 50mA | 5.8 µA | 5.8 µA | 60dB (100kHz) | Current Limit | Over Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
|
TPS71533DCKRM3IC REG LINEAR 3.3V 50MA SC70-5 |
5,696 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 0.75V @ 50mA | 50mA | 5.8 µA | 5.8 µA | 60dB (100kHz) | Current Limit | Over Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
XC6233H331MR-GIC REG LINEAR 3.3V 200MA SOT25 |
4,574 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.38V @ 200mA | 200mA | 87 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6705A301MR-G20V INPUT VOLTAGE, 200MA, LOW SU |
964 |
|
Datasheet |
XC6705 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3V | - | 0.81V @ 100mA | 200mA | 3 µA | - | 50dB (1kHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-25 |
|

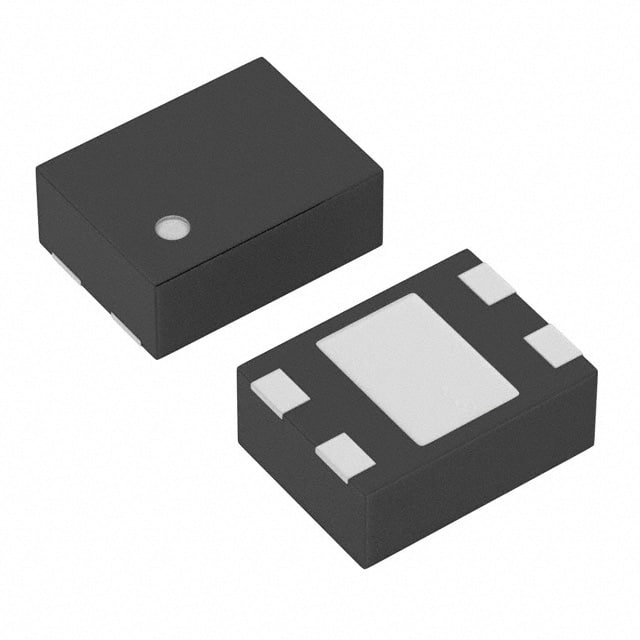

XC6503D181GR-GIC REG LINEAR 1.8V 500MA 4USP |
6,000 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.39V @ 300mA | 500mA | 30 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-USP (1.2x1.6) |
|
XC6215B332NR-GIC REG LINEAR 3.3V 200MA SSOT24 |
5,962 |
|
Datasheet |
- | SC-82 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.42V @ 100mA | 200mA | 1.5 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSOT-24 |
|
LDK715PU50RIC REG LINEAR 5V 85MA 8DFN |
5,902 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 5V | - | 1V @ 85mA | 85mA | 7 µA | 8.5 µA | 38dB ~ 57dB (1kHz ~ 100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
XC6215B182NR-GIC REG LINEAR 1.8V 120MA SSOT24 |
5,800 |
|
Datasheet |
- | SC-82 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.8V @ 100mA | 120mA | 1.5 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSOT-24 |
|
LD3985M27RIC REG LINEAR 2.7V 150MA SOT23-5 |
5,726 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.7V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 60dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCP148AFCT260T2GIC REG LINEAR 2.6V 450MA 4WLCSP |
5,210 |
|
Datasheet |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.6V | - | - | 450mA | 65 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
|
NCP148AFCT270T2GIC REG LINEAR 2.7V 450MA 4WLCSP |
19,900 |
|
Datasheet |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.3V @ 450mA | 450mA | 65 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
RT9065GEIC LDO 0.2A LOW DROPOUT SOT-23-6 |
10,090 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.5V @ 500mA | 500mA | 120 µA | - | 70dB ~ 50dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
LDI55-ADEENLDO, ESOP-8, 50V, 1.3V, 15V |
7,620 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 50V | 1.3V | 15V | 1.5V @ 2A | 1A | - | - | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-ESOP |
