Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1844ES5-2.8#TRMPBFIC REG LIN 2.8V 150MA TSOT23-5 |
5,136 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.165V @ 150mA | 150mA | 80 µA | - | 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
LTC1844ES5-3.3#TRMPBFIC REG LIN 3.3V 150MA TSOT23-5 |
3,076 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.15V @ 150mA | 150mA | 80 µA | - | 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
ADM7171ACPZ-R7IC REG LIN POS ADJ 1A 8LFCSP |
8,418 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 1.2V | 6.365V | 0.135V @ 1A | 1A | 2 mA | 6.3 mA | 60db ~ 20dB (100kHz ~ 1MHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
MAX15027ATB+TIC REG LINEAR POS ADJ 1A 10TDFN |
7,474 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.5V | 3.3V | 0.225V @ 1A | 1A | 410 µA | 560 µA | - | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ADM7171ACPZ-1.8-R7IC REG LINEAR 1.8V 1A 8LFCSP |
6,116 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.135V @ 1A | 1A | 2 mA | 6.3 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
MAX1818EUT50+TIC REG LIN POS ADJ 500MA SOT6 |
5,270 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (5V) | 5V | 0.22V @ 500mA | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX1818EUT18+TIC REG LIN POS ADJ 500MA SOT6 |
5,144 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (1.8V) | 5V | - | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
ADM7171ACPZ-3.3-R7IC REG LINEAR 3.3V 1A 8LFCSP |
4,596 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | - | 1A | 2 mA | 6.3 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
ADP7105ACPZ-3.3-R7IC REG LINEAR 3.3V 500MA 8LFCSP |
2,956 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.35V @ 500mA | 500mA | 900 µA | 1.6 mA | 60dB ~ 50dB (10kHz ~ 100kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
|
ADM7171ACPZ-5.0-R7IC REG LINEAR 5V 1A 8LFCSP |
2,452 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5V | - | - | 1A | 2 mA | 6.3 mA | - | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-WD (3x3) |
|
LT1762EMS8#PBFIC REG LIN POS ADJ 150MA 8MSOP |
48,438 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
LT1762EMS8-3.3#TRPBFIC REG LINEAR 3.3V 150MA 8MSOP |
24,966 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
LT1762EMS8#TRPBFIC REG LIN POS ADJ 150MA 8MSOP |
20,770 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
LT3060IDC#TRMPBFIC REG LINEAR POS ADJ 100MA 8DFN |
15,778 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 85dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x2) |
|
|
LT1762EMS8-5#TRPBFIC REG LINEAR 5V 150MA 8MSOP |
9,186 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
LT3060IDC#TRPBFIC REG LINEAR POS ADJ 100MA 8DFN |
3,902 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 0.6V | 44.5V | 0.51V @ 100mA | 100mA | 80 µA | 4 mA | 85dB (120Hz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x2) |
|
|
LT1762EMS8-3.3#PBFIC REG LINEAR 3.3V 150MA 8MSOP |
3,786 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
MAX1792EUA33+IC REG LIN POS ADJ 500MA 8UMAX |
1,480 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (3.3V) | 5V | 0.25V @ 500mA | 500mA | 250 µA | - | - | Enable, Reset | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
|
LT1762EMS8-5#PBFIC REG LINEAR 5V 150MA 8MSOP |
1,260 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.4V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|

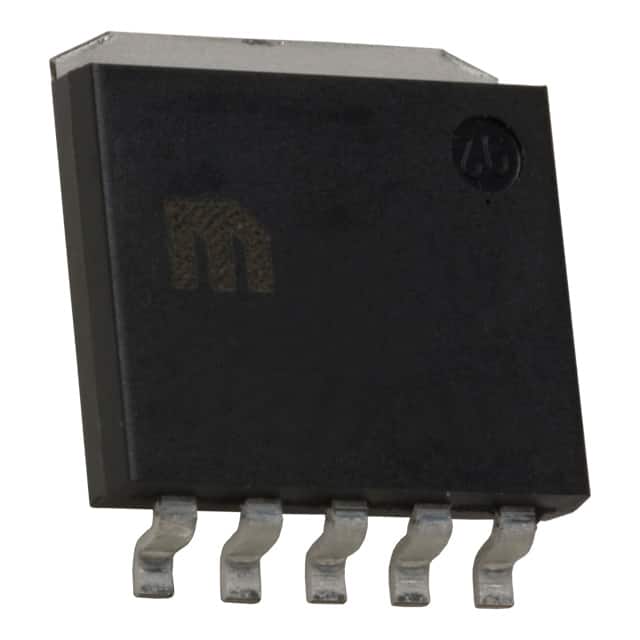

MIC49300WR-TRIC REG LINEAR POS ADJ 3A SPAK-5 |
5,864 |
|
Datasheet |
- | SPAK-5 (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.9V | 5V | 0.4V @ 3A | 3A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-SPAK |
