Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

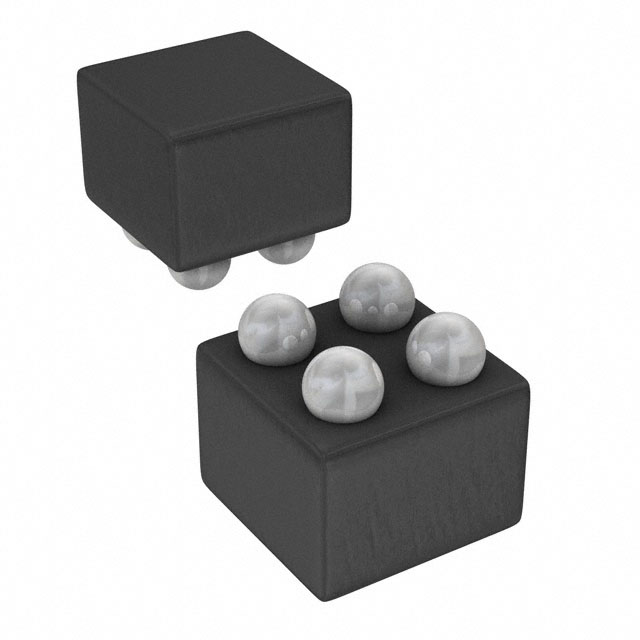

ADP121-ACBZ18R7IC REG LINEAR 1.8V 150MA 4WLCSP |
3,680 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 21 µA | 40 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.82x0.82) |
|
TLF80511TCATMA2IC REG LINEAR 5V 400MA TO263-3-1 |
3,258 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 75 µA | 80 µA | 55dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-3-1 |
|
MIC37101-3.3YM-TRIC REG LINEAR 3.3V 1A 8SOIC |
3,068 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
BA00BC0WFP-E2IC REG LINEAR POS ADJ 1A TO252-5 |
1,014 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.5V | 12V | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | TO-252-5 |
|
|
MIC37101-3.3YMIC REG LINEAR 3.3V 1A 8SOIC |
380 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
RAA2144014GP3#JA040V LOW IQ LDO, 3L SOT-23, T&R 3 |
19,926 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1.6V @ 150mA | 150mA | 6.1 µA | - | 77dB ~ 42dB (10Hz ~ 10kHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
TLE42994GMXUMA3IC REG LINEAR 5V 150MA DSO14 |
9,530 |
|
Datasheet |
OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 1 µA | 2 mA | 66dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
ISL80510IRAJZIC REG LINEAR POS ADJ 1A 8DFN |
8,350 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tray | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5.5V | 0.212V @ 1A | 1A | 4.6 mA | 5.7 mA | 58dB ~ 48dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (3x3) |
|
LM2937ET-8.0/NOPBIC REG LINEAR 8V 500MA TO220-3 |
1,038 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
LM1117S-ADJ/NOPBIC REG LIN POS ADJ 800MA DDPAK |
10,916 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
NCP786LSTADJT3GIC REG LINEAR POS ADJ 5MA SOT223 |
8,000 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 450V | 1.27V | 15V | - | 5mA | 15 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
LP38693QSD-5.0/NOPBIC REG LINEAR 5V 500MA 6WSON |
2,962 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.45V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
NCV8715MX33TBGIC REG LINEAR 3.3V 50MA 6XDFN |
29,914 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 0.35V @ 50mA | 50mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
BD00IC0MEFJ-ME2IC REG LINEAR POS ADJ 1A 8HTSOP |
15,804 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 4.5V | 0.9V @ 1A | 1A | 0.25 mA | 700 µA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD18IC0MEFJ-ME2IC REG LINEAR 1.8V 1A 8HTSOP |
12,032 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.9V @ 1A | 1A | 0.25 mA | 700 µA | - | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
TLT125D0EJXUMA1IC REG LIN POS ADJ 250MA DSO8-52 |
4,720 |
|
Datasheet |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 2V | 14V | 0.5V @ 250mA | 250mA | 110 µA | 25 mA | 80dB (100Hz) | Enable, Power Good, Soft Start | Over Temperature, Over Voltage, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 160°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-52 |
|
MIC5281-3.3YMMEIC REG LINEAR 3.3V 25MA 8MSOP |
516 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 120V | 3.3V | - | 3V @ 25mA | 25mA | 11 µA | - | 90dB (20kHz ~ 2MHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP-EP |
.jpg)
|
TS4264GCW50 RPGIC REG LINEAR 5V 150MA SOT223 |
17,956 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 70 µA | 4 mA | 68dB (100Hz) | - | Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
TS4264CW50 RPGIC REG LINEAR 5V 150MA SOT223 |
9,754 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 400 µA | 15 mA | 54dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
LP38512MRX-ADJ/NOPBIC REG LIN POS ADJ 1.5A 8SO |
742 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 4.5V | 0.3V @ 1.5A | 1.5A | 7.5 mA | 14 mA | 73dB ~ 70dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
