Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

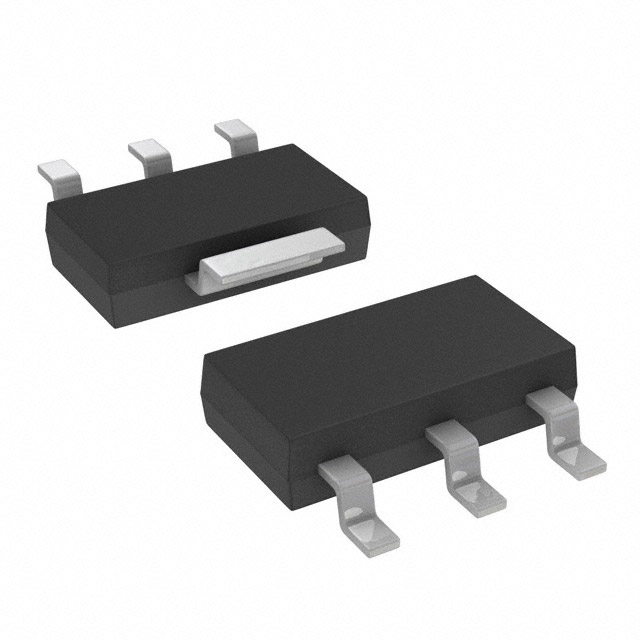

EZ1117CSTTRTIC REG LIN POS ADJ 800MA SOT223 |
3,630 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.2V @ 800mA | 800mA | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
SC1541CS-3.3TRTIC REG LINEAR 3.3V 1A 8SO |
8,462 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.3V @ 1A | 1A | 10 µA | 10 mA | 72dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
SC1541CM-3.3TRTIC REG LINEAR 3.3V 1A TO263-5 |
5,420 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.3V @ 1A | 1A | 10 µA | 10 mA | 72dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
EZ1086CM-2.5TRTIC REG LINEAR 2.5V 1.5A TO263 |
7,716 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.35V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1086CM-3.3TRTIC REG LINEAR 3.3V 1.5A TO263 |
4,324 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1086CM.TRTIC REG LINEAR POS ADJ 1.5A TO263 |
4,468 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.35V @ 1.5A | 1.5A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1086IMTRTIC REG LINEAR POS ADJ 1.5A TO263 |
7,370 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.4V @ 1.5A | 1.5A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1117ACST33TRTIC REG LINEAR 3.3V 1A SOT223-3 |
5,446 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.3V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
EZ1085CM-3.3TRTIC REG LINEAR 3.3V 3A TO263 |
3,124 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 3A | 3A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
EZ1085ITTIC REG LINEAR POS ADJ 3A TO220 |
5,282 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.4V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
SC1566IT-1.8TIC REG LINEAR 1.8V 3A TO220-3 |
7,038 |
|
- |
- | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
|
SC1566I5T-2.5TIC REG LINEAR 2.5V 3A TO220-5 |
9,348 |
|
- |
- | TO-220-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
|
EZ1587CT-3.3TIC REG LINEAR 3.3V 3A TO220-3 |
7,626 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 3A | 3A | 13 mA | 13 mA | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
EZ1587CM-3.3TRTIC REG LINEAR 3.3V 3A TO263 |
8,088 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.35V @ 3A | 3A | 13 mA | 13 mA | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1582CMTRTIC REG LINEAR POS ADJ 3A TO263-5 |
7,566 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 0.6V @ 3A | 3A | 10 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
EZ1585CM-1.5TRTIC REG LINEAR 1.5V 4.6A TO263 |
3,562 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.3V @ 4.6A | 4.6A | 13 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1585CM-2.5TRTIC REG LINEAR 2.5V 4.6A TO263 |
9,118 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.3V @ 4.6A | 4.6A | 13 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
EZ1585CT-3.3TIC REG LINEAR 3.3V 4.6A TO220-3 |
8,906 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.3V @ 4.6A | 4.6A | 13 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
EZ1585CM.TRTIC REG LINEAR POS ADJ 4.6A TO263 |
7,172 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 1.3V @ 4.6A | 4.6A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
SC1565I5M1.8TRTIC REG LINEAR 1.8V 1.5A TO263-5 |
7,148 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 1.5A | 1.5A | 35 µA | 1.75 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
