Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L78L06ACD13TRIC REG LINEAR 6V 100MA 8SO |
43,356 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 6V | - | - | 100mA | 5.5 mA | 6 mA | 46dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
,TO-226_bentlead.jpg)
|
L78L12ABZ-APIC REG LINEAR 12V 100MA TO92-3 |
26,264 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 100mA | 6 mA | 6.5 mA | 42dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
L78L08ACD13TRIC REG LINEAR 8V 100MA 8SO |
18,556 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 8V | - | - | 100mA | 5.5 mA | 6 mA | 45dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TLV70015DSERIC REG LINEAR 1.5V 200MA 6WSON |
10,160 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70025DSERIC REG LINEAR 2.5V 200MA 6WSON |
21,510 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
UA78L15ACPKG3IC REG LINEAR 15V 100MA SOT89-3 |
8,978 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 15V | - | 1.7V @ 40mA | 100mA | - | - | 39dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
|
UA78L09ACLPRIC REG LINEAR 9V 100MA TO92-3 |
7,910 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 9V | - | 1.7V @ 40mA | 100mA | - | - | 45dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
MIC94310-MYM5-TRIC REG LINEAR 2.8V 200MA SOT23-5 |
42,596 |
|
Datasheet |
Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 2.8V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MIC94310-GYM5-TRIC REG LINEAR 1.8V 200MA SOT23-5 |
28,976 |
|
Datasheet |
Ripple Blocker™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TLV70030DSERIC REG LINEAR 3V 200MA 6WSON |
23,656 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
L78L15CD-TRIC REG LINEAR 15V 100MA 8SO |
14,604 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 100mA | 5.5 mA | 6 mA | 39dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
SPX1117M3-L-2-5/TRIC REG LINEAR 2.5V 800MA SOT223 |
13,844 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
L78L08ABD13TRIC REG LINEAR 8V 100MA 8SO |
9,672 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 8V | - | - | 100mA | 5.5 mA | 6 mA | 45dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
L78L08ABZTRIC REG LINEAR 8V 100MA TO92-3 |
2,992 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 8V | - | - | 100mA | 5.5 mA | 6 mA | 45dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
TLV70012DSERIC REG LINEAR 1.2V 200MA 6WSON |
14,808 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
L78L18CD13TRIC REG LINEAR 18V 100MA 8SO |
10,188 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 5.5 mA | 6 mA | 38dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
UA78L09ACLPRE3IC REG LINEAR 9V 100MA TO92-3 |
6,746 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 9V | - | 1.7V @ 40mA | 100mA | - | - | 45dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|

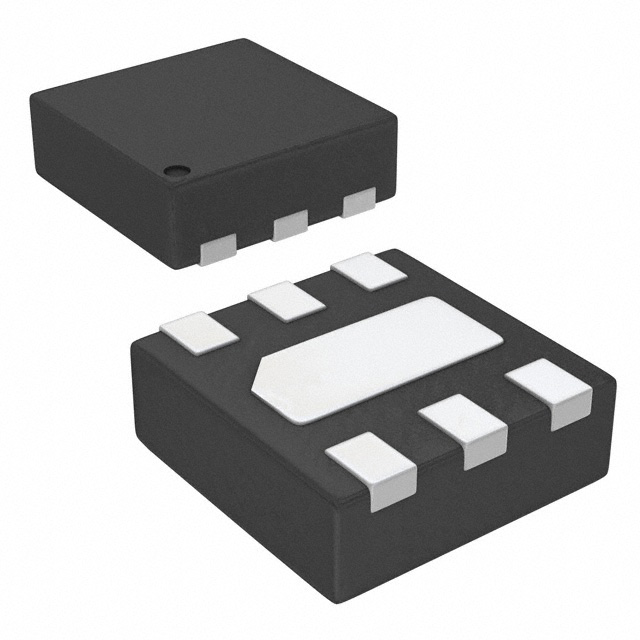

TLV7163318PDPQRIC REG LIN 3.3/1.8V 150MA 6X2SON |
4,782 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3.3V, 1.8V | - | 0.42V @ 150mA, 0.58V @ 150mA | 150mA | 75 µA | - | 80dB ~ 46dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-X2SON (1.2x1.2) |
|
TPS7A20285PYCKR300-MA, ULTRA-LOW-NOISE, LOW-IQ, |
64,088 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.85V | - | 0.14V @ 300mA | 300mA | 15 µA | - | 65dB ~ 40dB (100Hz ~ 1MHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.6x0.6) |
|
TCR2EF36,LM(CTIC REG LINEAR 3.6V 200MA SMV |
34,462 |
|
Datasheet |
TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
