Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT8616EFE#PBFIC REG BUCK ADJ DL 28TSSOP |
530 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 2 | 3.4V | 42V | 0.79V | 41.8V | 1.5A, 2.5A | 200kHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC3413EFE#TRPBFIC REG BUCK ADJ 3A 16TSSOP |
2,236 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 1.125V | 5.5V | 3A | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP-EP |
|
LTC7138HMSE#PBFIC REG BUCK ADJ 400MA 16MSOP |
930 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable (Programmable) | 1 | 4V | 140V | 0.8V (1.8V, 3.3V, 5V) | 140V | 400mA | - | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT1376HVIS8#TRPBFIC REG BUCK SEPIC ADJ 1.5A 8SO |
11,554 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck, SEPIC | Adjustable | 1 | 5V | 30V | 2.42V | 25.8V | 1.5A (Switch) | 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|

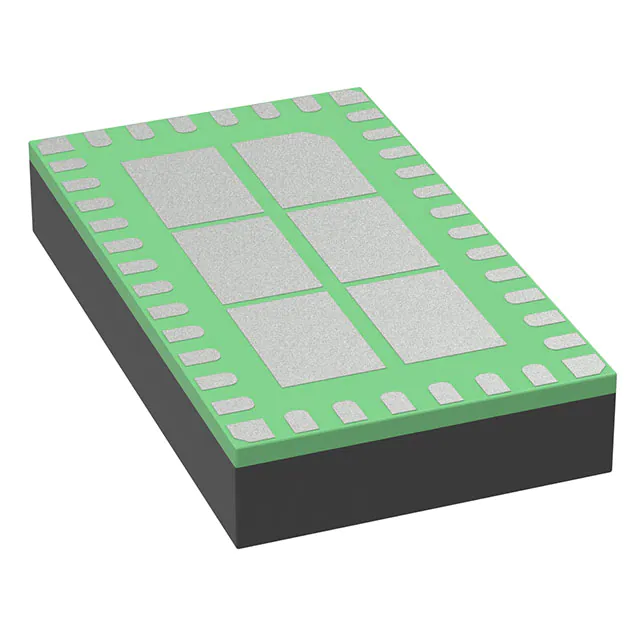

LT8652SEV#PBFIC REG BUCK 0.6V DL 36LQFN |
1,912 |
|
Datasheet |
Silent Switcher®2 | 36-TFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Fixed | 2 | 3V | 18V | 0.6V | - | 8.5A, 8.5A | 300kHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 36-LQFN (4x7) |
|
LT3972EMSE#TRPBFIC REG BUCK ADJ 3.5A 10MSOP |
8,810 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 33V | 0.79V | 30V | 3.5A | 230kHz ~ 2.45MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|

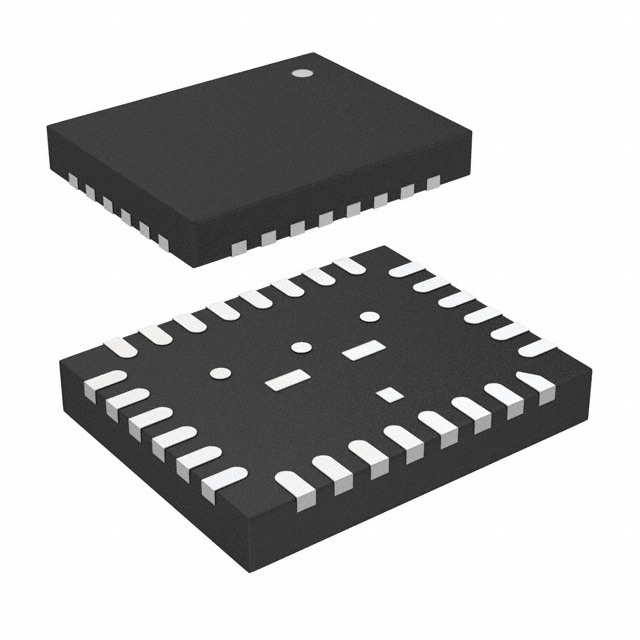

LTC3636EUFD#PBFIC REG BUCK ADJ 6A DL 28QFN |
2,146 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 2 | 3.1V | 20V | 0.6V | 5V | 6A | Adjustable | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-QFN (4x5) |
|
|
LT3972EMSE#PBFIC REG BUCK ADJ 3.5A 10MSOP |
1,324 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 33V | 0.79V | 30V | 3.5A | 230kHz ~ 2.45MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT1375HVIS8#PBFIC REG BUCK SEPIC ADJ 1.5A 8SO |
5,032 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck, SEPIC | Adjustable | 1 | 5V | 30V | 2.42V | 25.8V | 1.5A (Switch) | 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
LTC3616IUDD#PBFIC REG BUCK ADJ 6A 24QFN |
512 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.6V | 5.5V | 6A | 300kHz ~ 4MHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-QFN (3x5) |
|
LT1976EFE#PBFIC REG BUCK ADJ 1.5A 16TSSOP |
864 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.3V | 60V | 1.25V | 55.2V | 1.5A (Switch) | 200kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LT1977EFE#PBFIC REG BUCK ADJ 1.5A 16TSSOP |
7,778 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 60V | 1.25V | 55.2V | 1.5A (Switch) | 500kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
LTC7103EUHE#TRPBFIC REG BUCK ADJ 2.3A 36QFN |
9,164 |
|
Datasheet |
- | 36-WFQFN, 26 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.4V | 105V | 1V | 105V | 2.3A | 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-QFN (5x6) |
|
|
LTC7103EUHE#PBFIC REG BUCK ADJ 2.3A 36QFN |
3,004 |
|
Datasheet |
- | 36-WFQFN, 26 Leads, Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.4V | 105V | 1V | 105V | 2.3A | 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-QFN (5x6) |
|
LTC7103RUHE-1#TRPBFIC REG BUCK ADJ 2.3A 36QFN |
2,268 |
|
Datasheet |
- | 36-WFQFN, 26 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.4V | 105V | 1V | 105V | 2.3A | 200kHz ~ 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-QFN (5x6) |
|
LT8315IFE#PBFIC REG FLYBACK 800MA 20TSSOP |
770 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | Tube | Active | Step-Down, Step-Up/Step-Down | Positive, Isolation Capable | Flyback | Fixed | 1 | 18V | 560V | - | - | 800mA | 220Hz ~ 140kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LT3480HMSE#PBFIC REG BUCK ADJ 2A 10MSOP |
9,614 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.79V | 20V | 2A | 200kHz ~ 2.4MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT1766IFE#PBFIC REG BUCK ADJ 1.5A 16TSSOP |
1,090 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 5.5V | 60V | 1.2V | 57.6V | 1.5A | 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LT1956IFE#PBFIC REG BUCK ADJ 1.5A 16TSSOP |
242 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 5.5V | 60V | 1.219V | 54V | 1.5A (Switch) | 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP-EP |
|
LT8642SIV#PBFIC REG BUCK ADJ 10A 24LQFN |
2,190 |
|
Datasheet |
Silent Switcher®1 | 24-TFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.8V | 18V | 0.597V | 3.3V | 10A | 200kHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-LQFN (4x4) |
