Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT8570IDD-1#PBFIC REG BST CHARGE PUMP ADJ 8DFN |
1,310 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tube | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Charge Pump, Cuk, SEPIC | Adjustable | 1 | 2.55V | 40V | 0.003V, 1.204V | 65V (Switch) | 375mA (Switch) | 200kHz ~ 1.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LT8570IDD#PBFIC REG BOOST CUK ADJ 750MA 8DFN |
1,004 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tube | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Cuk, SEPIC | Adjustable | 1 | 2.55V | 40V | 0.003V, 1.204V | 65V (Switch) | 750mA (Switch) | 200kHz ~ 1.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|

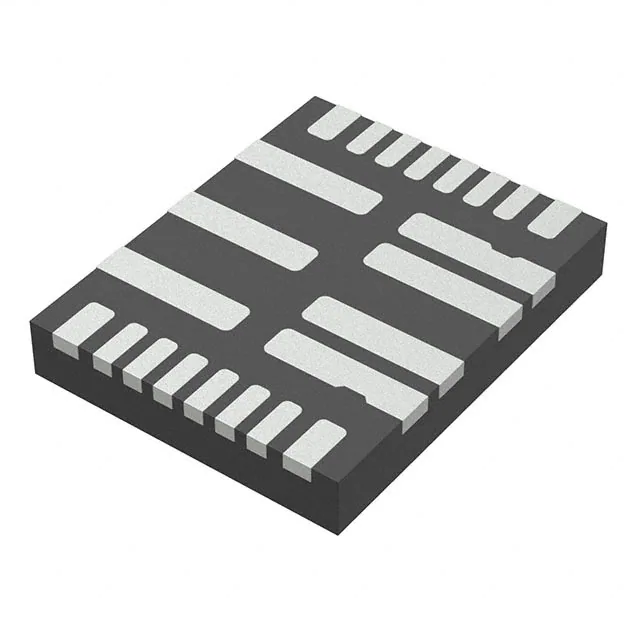

MP8796BGVT-0000-ZIC REG BUCK ADJ 30A 25TQFN |
25,376 |
|
Datasheet |
- | 25-PowerWFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 16V | 0.6V | 5.5V | 30A | 400kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 25-TQFN (4x5) |
|
LTC3539EDCB#TRPBFIC REG BOOST ADJ 2A 8DFN |
22,978 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.5V | 5V | 1.5V | 5.25V | 2A (Switch) | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x3) |
|
|
LTC3539EDCB#TRMPBFIC REG BOOST ADJ 2A 8DFN |
9,052 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.5V | 5V | 1.5V | 5.25V | 2A (Switch) | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x3) |
|
LT8330EDDB#TRPBFIC REG BOOST SEPIC ADJ 1A 8DFN |
6,682 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative, Isolation Capable | Boost, SEPIC | Adjustable | 1 | 3V | 40V | 1.6V, -0.8V | 60V (Switch) | 1A | 2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x2) |
|
LT8609AEDDM#TRPBFIC REG BUCK ADJ 3A 10DFN |
5,478 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 10-DFN (3x3) |
|
|
LTC3539EDCB-2#TRMPBFIC REG BOOST ADJ 2A 8DFN |
4,368 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.5V | 5V | 1.5V | 5.25V | 2A (Switch) | 2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (2x3) |
|
|
LT3663EDCB#TRPBFIC REG BUCK ADJ 1.2A 8DFN |
4,224 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 7.5V | 36V | 0.8V | 6V | 1.2A | 1.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x3) |
|
LTC3314AACBZ-R7IC REG BUCK ADJ 4A/4A 30WLCSP |
4,062 |
|
Datasheet |
- | 30-UFBGA, WLCSP | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.5V | 5.5V | 4A, 4A | 1MHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 30-WLCSP (2.2x2.7) |
|
LT8330ES6#TRMPBFIC REG BST SEPIC ADJ 1A TSOT23-6 |
4,026 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative, Isolation Capable | Boost, SEPIC | Adjustable | 1 | 3V | 40V | 1.6V, -0.8V | 60V (Switch) | 1A | 2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-6 |
|
|
LT8330EDDB#TRMPBFIC REG BOOST SEPIC ADJ 1A 8DFN |
1,658 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, SEPIC | Adjustable | 1 | 3V | 40V | 1.6V, -0.8V | 60V (Switch) | 1A | 2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x2) |
|
|
LT8609AEDDM#PBFIC REG BUCK ADJ 3A 10DFN |
2,236 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 10-DFN (3x3) |
|
LT8609AEMSE#PBFIC REG BUCK ADJ 3A 10MSOP |
15,686 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT8609EMSE#TRPBFIC REG BUCK ADJ 3A 10MSOP |
11,250 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
|
LT8609EMSE#PBFIC REG BUCK ADJ 3A 10MSOP |
6,072 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
ICL7662CBA+IC REG CHARGE PUMP 8SOIC |
3,372 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Ratiometric | Negative | Charge Pump | Fixed | 1 | 4.5V | 20V | -Vin | - | - | 10kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LT8609AEMSE#TRPBFIC REG BUCK ADJ 3A 10MSOP |
886 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 0.782V | 42V | 3A | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
MAX17574ATG+TIC REG BUCK ADJ 3A 24TQFN |
6,952 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 60V | 0.9V | 54V | 3A | 100kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-TQFN (4x5) |
|
LM21215AMHE-1/NOPBIC REG BUCK ADJ 15A 20HTSSOP |
858 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.95V | 5.5V | 0.6V | 5.5V | 15A | 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
