Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2676SX-ADJ/NOPBIC REG BUCK ADJ 3A TO263 |
7,256 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 8V | 40V | 1.2V | 37V | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|

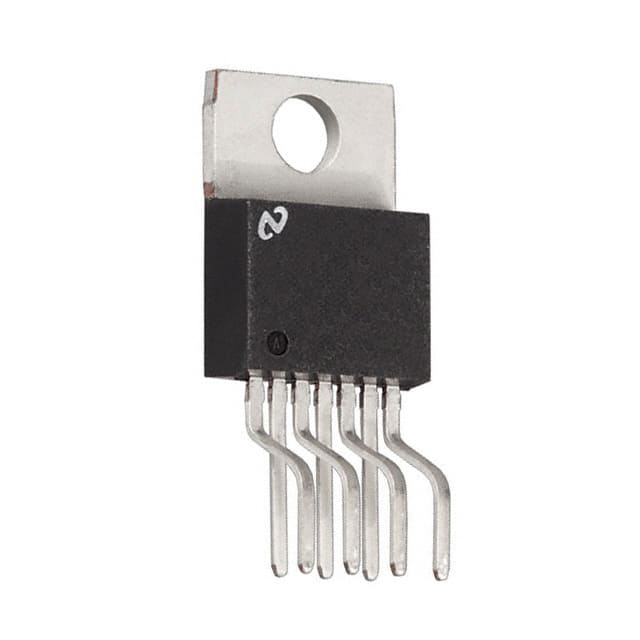

LM2676T-ADJ/NOPBIC REG BUCK ADJ 3A TO220-7 |
1,410 |
|
Datasheet |
SIMPLE SWITCHER® | TO-220-7 Formed Leads | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 8V | 40V | 1.2V | 37V | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-7 |
|
|
LM2676SX-12/NOPBIC REG BUCK 12V 3A TO263 |
1,326 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 8V | 40V | 12V | - | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
|
LM2676SX-3.3/NOPBIC REG BUCK 3.3V 3A TO263 |
1,266 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 8V | 40V | 3.3V | - | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LM2594HVMX-12/NOPBIC REG BUCK 12V 500MA 8SOIC |
18,010 |
|
Datasheet |
SIMPLE SWITCHER® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 60V | 12V | - | 500mA | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM2594HVMX-3.3/NOPBIC REG BUCK 3.3V 500MA 8SOIC |
9,366 |
|
Datasheet |
SIMPLE SWITCHER® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 60V | 3.3V | - | 500mA | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM2594HVMX-5.0/NOPBIC REG BUCK 5V 500MA 8SOIC |
7,524 |
|
Datasheet |
SIMPLE SWITCHER® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 60V | 5V | - | 500mA | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM2594HVMX-ADJ/NOPBIC REG BUCK ADJ 500MA 8SOIC |
7,288 |
|
Datasheet |
SIMPLE SWITCHER® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 60V | 1.2V | 57V | 500mA | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LM2673SX-ADJ/NOPBIC REG BUCK ADJ 3A TO263 |
3,160 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 8V | 40V | 1.2V | 37V | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
MAX17632CATE+IC REG BUCK ADJ 2A 16TQFN |
7,746 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 36V | 0.9V | 32.4V | 2A | 400kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
MAX15062AATA+TIC REG BUCK 3.3V 300MA 8TDFN |
20,434 |
|
Datasheet |
Himalaya | 8-WFDFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 60V | 3.3V | - | 300mA | 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (2x2) |
|

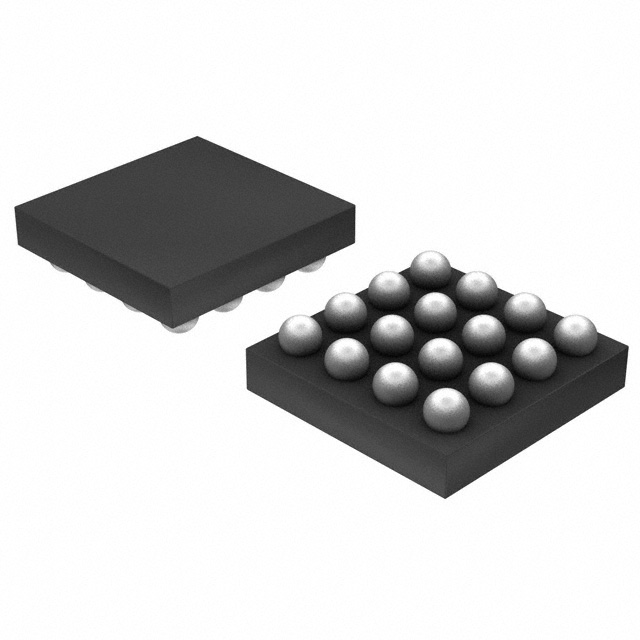

TPS61372YKBTIC REG BOOST ADJ 3.8A 16DSBGA |
12,624 |
|
Datasheet |
- | 16-XFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.5V | 5.5V | 5V | 16V | 3.8A | 1.5MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DSBGA |
|
LM76005RNPRIC REG BUCK ADJ 5A 30WQFN |
10,090 |
|
Datasheet |
- | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.5V | 60V | 1V | 57V | 5A | 200kHz ~ 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 30-WQFN (6x4) |
|
TPS5430QDDARQ1IC REG BUCK ADJ 3A 8SOPWR |
8,166 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 5.5V | 36V | 1.221V | 32.04V | 3A | 500kHz | No | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
|
|
MAX15062CATA+TIC REG BUCK ADJ 300MA 8TDFN |
5,276 |
|
Datasheet |
Himalaya | 8-WFDFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 60V | 0.9V | 53.4V | 300mA | 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (2x2) |
|
TDA21590AUMA1IC REG BUCK 39QFN |
9,750 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | - | 1 | - | - | - | - | - | - | No | - | - | - | Surface Mount | PG-IQFN-39 |
.jpg)
|
TPS53318DQPRIC REG BUCK ADJ 8A 22LSON-CLIP |
9,126 |
|
Datasheet |
D-CAP™, Eco-Mode™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 1.5V | 22V | 0.6V | 5.5V | 8A | 250kHz ~ 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 22-LSON-CLIP (6x5) |
|
SIC461ED-T1-GE3IC REG BCK ADJ POWERPAK MLP55-27 |
3,616 |
|
Datasheet |
microBUCK® | PowerPAK® MLP55-27 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 60V | 0.8V | 55.2V | 10A | 100kHz ~ 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerPAK® MLP55-27 |
|
|
SIC471ED-T1-GE3IC REG BCK ADJ POWERPAK MLP55-27 |
1,476 |
|
Datasheet |
microBUCK® | PowerPAK® MLP55-27 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 55V | 0.8V | 50.6V | 12A | 20kHz ~ 2MHz | Yes | -40°C ~ 105°C (TA) | - | - | Surface Mount | PowerPAK® MLP55-27 |
|
MP3425DL-LF-ZIC REG BOOST ADJ 3A 14QFN |
24,872 |
|
Datasheet |
- | 14-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 3.1V | 22V | 3.1V | 55V (Switch) | 3A (Switch) | 300kHz ~ 2MHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-QFN (3x4) |
