Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP3435GL-ZIC REG BOOST ADJ 19A 20QFN |
3,226 |
|
Datasheet |
- | 20-PowerVFQFN | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 3V | 20V | 3V | 22V | 19A (Switch) | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3x4) |
|
LM2734XMK/NOPBIC REG BUCK ADJ 1A SOT23 |
2,088 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 20V | 0.8V | 18V | 1A | 1.6MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-THIN |
|
LM5161PWPRIC REG BCK FLYBACK ADJ 14HTSSOP |
8,468 |
|
Datasheet |
- | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive, Isolation Capable | Buck, Flyback | Adjustable | 1 | 4.5V | 100V | 2V | 92V | 1A | 50kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-HTSSOP |
|
MAX1044CPA+IC REG CHARGE PUMP 20MA 8PDIP |
5,402 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 10V | -Vin, nVin, Vin/2 | - | 20mA | 10kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|

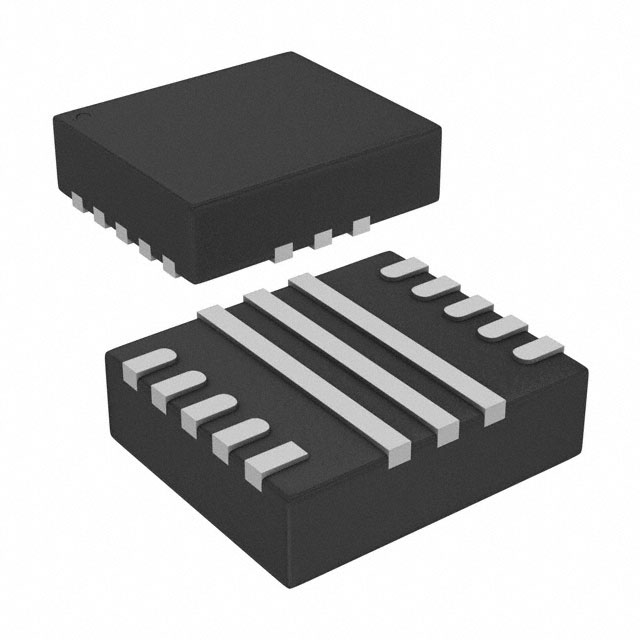

TPS611781RNWRIC REG BOOST ADJ 10A 13VQFN |
3,718 |
|
Datasheet |
- | 13-PowerVFQFN | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.7V | 20V | 4.5V | 20V | 10A (Switch) | 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 13-VQFN-HR (3x3.5) |
|
|
TPS61178RNWRIC REG BOOST ADJ 10A 13VQFN |
3,126 |
|
Datasheet |
- | 13-PowerVFQFN | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.7V | 20V | 4.5V | 20V | 10A (Switch) | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 13-VQFN-HR (3x3.5) |
|
MP1484EN-LF-ZIC REG BUCK ADJ 3A 8SOIC |
2,336 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Not For New Designs | Step-Down | Positive | Buck | Adjustable | 1 | 4.75V | 23V | 0.925V | 20V | 3A | 340kHz | Yes | -20°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
LMR24210TL/NOPBIC REG BUCK ADJ 1A 28DSBGA |
1,210 |
|
Datasheet |
SIMPLE SWITCHER® | 28-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 42V | 0.8V | 24V | 1A | Up to 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-DSBGA |
|
MIC4575-5.0WU-TRIC REG BUCK BST 5V 1.7A TO263-5 |
834 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Down, Step-Up/Step-Down | Positive | Buck, Buck-Boost | Fixed | 1 | 4V | 24V | 5V | - | 1.7A (Switch) | 200kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-263-5 |
|
LM2576S-3.3/NOPBIC REG BUCK 3.3V 3A TO263 |
664 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 4V | 40V | 3.3V | - | 3A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
AP1501-K5G-13IC REG BUCK ADJ 3A TO263-5 |
7,156 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 40V | 1.23V | 37V | 3A | 150kHz | No | -20°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
LM25183NGURIC REG FLYBACK ADJ 2.5A 8WSON |
6,268 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Flyback | Adjustable | 1 | 4.5V | 42V | 1.21V | 42V | 2.5A | 12kHz ~ 350kHz | No | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 8-WSON (4x4) |
|
TPS65263-1QRHBRQ1IC REG BUCK ADJ TRPL 32VQFN |
6,000 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 3 | 4V | 18V | 0.68V | 6.3V | 3A, 2A, 2A | 200kHz ~ 2.3MHz | Yes | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 32-VQFN (5x5) |
|
MP8774GQ-PIC REG BUCK ADJ 12A 16QFN |
1,414 |
|
- |
- | 16-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 18V | 0.6V | 12V | 12A | 700kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (3x3) |
|
TPS54291PWPRIC REG BUCK ADJ DL 16HTSSOP |
2,032 |
|
Datasheet |
- | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 2 | 4.5V | 18V | 0.8V | 16.2V | 1.5A, 2.5A | 600kHz | Yes | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HTSSOP |
|
|
LM2595SX-3.3/NOPBIC REG BUCK 3.3V 1A TO263 |
5,422 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 3.3V | - | 1A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LM2595SX-12/NOPBIC REG BUCK 12V 1A TO263 |
1,842 |
|
Datasheet |
SIMPLE SWITCHER® | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 12V | - | 1A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LM2595T-5.0/NOPBIC REG BUCK 5V 1A TO220-5 |
1,778 |
|
Datasheet |
SIMPLE SWITCHER® | TO-220-5 Formed Leads | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 5V | - | 1A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LM5169FQDDARQ1IC REG BUCK ADJ 650MA 8SOPWR |
8,554 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 6V | 120V | 1.2V | 120V | 650mA | 100kHz ~ 1MHz | Yes | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
|
|
LM5169PQDDARQ1IC REG BUCK ADJ 650MA 8SOPWR |
2,722 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 6V | 120V | 1.2V | 120V | 650mA | 100kHz ~ 1MHz | Yes | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
