Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT6658BIMSE-1.8#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
8,558 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 1.8V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.0ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.6mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT6658BIMSE-3#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
8,184 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.6ppmp-p | 2ppmrms | 4.2V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT6658BIMSE-3.3#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
5,244 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT6658BIMSE-5#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
7,668 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 5V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 2.2ppmp-p | 2ppmrms | 5.2V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LM4050AEM3-2.5/V+TIC VREF SHUNT 2.048V SOT23-3 |
4,614 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±0.1% | 50ppm/°C | - | 28µVrms | - | - | 65 µA | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
LM4132AMF-1.8IC VREF SERIES 0.05% SOT23-5 |
6,062 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 1.8V | - | 20 mA | ±0.05% | 20ppm/°C | 170µVp-p | - | 2.2V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132AMF-2.0IC VREF SERIES 0.05% SOT23-5 |
6,476 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.048V | - | 20 mA | ±0.05% | 20ppm/°C | 190µVp-p | - | 2.448V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132AMF-3.0IC VREF SERIES 0.05% SOT23-5 |
4,188 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 3V | - | 20 mA | ±0.05% | 20ppm/°C | 285µVp-p | - | 3.4V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132AMF-3.3IC VREF SERIES 0.05% SOT23-5 |
7,516 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 3.3V | - | 20 mA | ±0.05% | 20ppm/°C | 310µVp-p | - | 3.7V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LT1460MHS8-2.5#TRPBFIC VREF SERIES 0.2% 8SOIC |
7,014 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 40 mA | ±0.2% | 50ppm/°C | 10µVp-p | 10µVrms | 3.4V ~ 20V | 165µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SO |
|
MAX6033CAUT41+TIC VREF SERIES 0.1% SOT23-6 |
2,524 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 15 mA | ±0.1% | 40ppm/°C | 32µVp-p | 22µVrms | 4.3V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
MAX6190CESA+TIC VREF SERIES 1.25V 8SOIC |
5,578 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 500 µA | ±0.48% | 25ppm/°C | 25µVp-p | 65µVrms | 2.5V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6192CESA+TIC VREF SERIES 0.4% 8SOIC |
2,320 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 500 µA | ±0.4% | 25ppm/°C | 60µVp-p | 125µVrms | 2.7V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6195CESA+TIC VREF SERIES 0.2% 8SOIC |
8,868 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 500 µA | ±0.2% | 25ppm/°C | 120µVp-p | 240µVrms | 5.2V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF5020AQDRQ1IC VREF SERIES 0.1% 8SOIC |
3,378 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.1% | 8ppm/°C | 6µVpp/V | - | 2.7V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
REF5010IDRIC VREF SERIES 0.05% 8SOIC |
4,292 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 3ppm/°C | 30µVpp/V | - | 10.2V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6043AAUT25#TG16IC VREF SERIES 0.06% SOT23-6 |
9,326 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.06% | 15ppm/°C | 4µVp-p | 7µVrms | 4.5V ~ 40V | 650µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
MAX6072BAUB25+IC VREF SERIES 0.08% 10UMAX |
7,752 |
|
- |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tube | Obsolete | Series | Fixed | 1.25V, 2.5V | - | 10 mA | ±0.08% | 8ppm/°C | 3.6µVp-p, 4.8µVp-p | 5µVrms, 6µVrms | 2.75V ~ 5.5V | 260µA, 320µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|

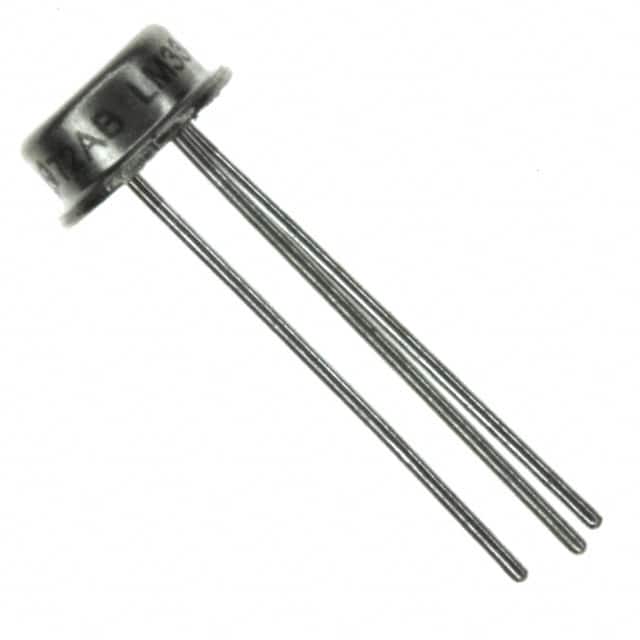

LT1029CHIC VREF SHUNT 5V TO-46-3 |
8,788 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Obsolete | Shunt | - | 5V | - | - | ±1% | - | - | - | - | - | - | - | - | - | Through Hole | TO-46-3 |
|
REF02DJ8IC VREF SERIES 5V 8CDIP |
2,678 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | REF02 | Tube | Obsolete | Series | - | 5V | - | - | ±2% | - | - | - | - | - | - | - | - | - | Through Hole | 8-CERDIP |
