Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADR291WFRZ-R7IC VREF SERIES 0.33% 8SOIC |
7,260 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.33% | 15ppm/°C | 8µVp-p | - | 3V ~ 15V | 15µA | - | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 8-SOIC |
|
REF02HJIC PREC VOLT REFERENCE 5V TO-99 |
22,186 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LM185BHIC VREF SHUNT ADJ 1% TO99-8 |
9,246 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Shunt | Adjustable | 1.24V | 5.3 V | 20 mA | ±1% | 150ppm/°C | - | 50µVrms | - | - | 45 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
REF01CJIC VREF SERIES 1% TO99-8 |
6,452 |
|
Datasheet |
TO-99-8 Metal Can | REF01 | Bulk | Active | Series | Fixed | 10V | - | 8 mA | ±1% | 65ppm/°C | 35µVp-p | - | 13V ~ 33V | 1.6mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-99-8 |
|
MX584KHVOLTAGE REFERENCE |
4,380 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±20mV | 15ppm/°C | 50µVp-p | - | 4.5V ~ 40V | 1mA | - | 0°C ~ 70°C | - | - | Through Hole | TO-99-8 |
|
DS4303KDS4303 PROGRAMMABLE VOLTAGE REF |
852 |
|
Datasheet |
SC-74A, SOT-753 | - | Bulk | Active | Series | Adjustable | 300mV | 3.3 V | 1 mA | ±0.03% | 62ppm/°C | 200µVp-p | 26µVp-p | 2.4V ~ 3.6V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
REF01EJIC VOLT REF PREC 10V TO99-8 |
3,828 |
|
- |
TO-99-8 Metal Can | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-99-8 |
|
LM185BYH-1.2IC VREF SHUNT 1% TO2 |
2,520 |
|
Datasheet |
TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 50ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
LT6654AMPS6-2.048#TRPBFIC VREF SERIES 0.05% TSOT23-6 |
7,252 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 10ppm/°C | 1ppmp-p | 2ppmrms | 2.548V ~ 36V | 600µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
5962-8947902GAVOLTAGE REFERENCE (REF10BJ) |
710 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±3% | 8.5ppm/°C | 30µVp-p | - | 40V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
MAX6350CPAIC VREF SERIES 0.02% 8DIP |
2,694 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
LM169HVOLTAGE REFERENCE |
616 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series, Shunt, Buried Zener | Fixed | 10V | - | 50 mA | - | 5ppm/°C | 4µVp-p | 4µVrms | 35V | 2mA | - | -55°C ~ 125°C | - | - | Through Hole | TO-99-8 |
|
MX581THMX581 10V REFERENCE |
2,616 |
|
Datasheet |
TO-205AD, TO-39-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±1% | 15ppm/°C | 50µVp-p | - | 12.5V ~ 30V | 1mA | - | -55°C ~ 125°C | - | - | Through Hole | TO-39 |
|
FAN4040AIS333XVOLTAGE REFERENCE |
5,340 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 3.3V | - | 25 mA | ±0.1% | 100ppm/°C | - | 70µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AD584IRTHREE TERMINAL VOLTAGE REFERENCE |
1,646 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5962-8958102GA10V PRECISION V REF (REF01) |
738 |
|
Datasheet |
TO-99-8 Metal Can | REF01 | Bulk | Active | Series | Fixed | 10V | - | - | - | - | 30µVp-p | - | 12V ~ 36V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
UC137LANALG VOLT REF & OTHER |
430 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

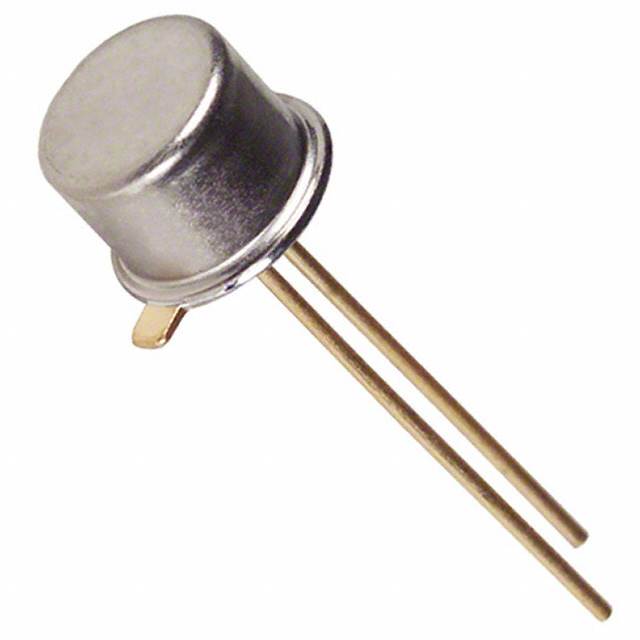

AD589THIC VREF SHUNT -2.83%/+1.22% TO51 |
5,108 |
|
Datasheet |
TO-51-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 5 mA | -2.83%, +1.22% | 50ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-51-2 |
|
AD588JQTHREE TERMINAL VOLTAGE REFERENCE |
41,740 |
|
Datasheet |
16-CDIP (0.300", 7.62mm) | - | Bulk | Active | Series | Programmable | ±5V, ±10V | - | 10 mA | ±0.03% | 3ppm/°C | 6µVp-p | - | 10.8V ~ 36V | 10mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-CERDIP |
|
5962-89581022ALINEAR, POSITIVE 10-VOLT ADJUSTA |
1,784 |
|
Datasheet |
20-CLCC | REF01 | Bulk | Active | Series | Fixed | 10V | - | 8 mA | ±1% | 65ppm/°C | 30µVp-p | - | 12V ~ 36V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-CLCC (9x9) |
