Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

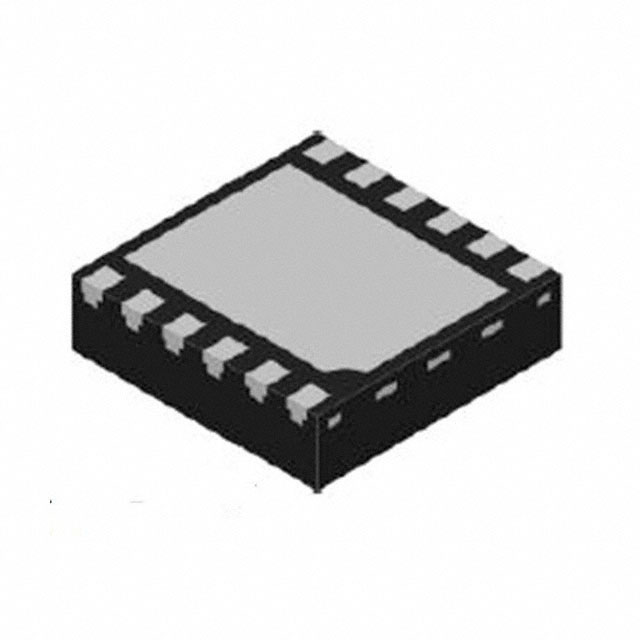

DML3009LDC-7IC PWR SWITCH N-CHAN 1:1 12VDFN |
8,998 |
|
Datasheet |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 20A | 6.1mOhm | Non-Inverting | - | Short-Circuit, Thermal Shutdown, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | V-DFN3030-12 (Type B) |
|
ADP196ACBZ-R7IC PWR SWITCH N-CHAN 1:1 6WLCSP |
17,420 |
|
Datasheet |
6-WFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 3A | 10mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
|
ADP196ACPZN-R7IC PWR SWITCH N-CHAN 1:1 6LFCSP |
4,480 |
|
Datasheet |
6-UDFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 3A | 10mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
AOZ1375DI-01IC PWR SWITCH N-CHAN 1:1 12DFN |
110,930 |
|
Datasheet |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 23V | 3.4V ~ 23V | 6A | 17.8mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
|
AOZ1375DI-02IC PWR SWITCH N-CHAN 1:1 12DFN |
35,630 |
|
Datasheet |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 23V | 3.4V ~ 23V | 6A | 17.8mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|

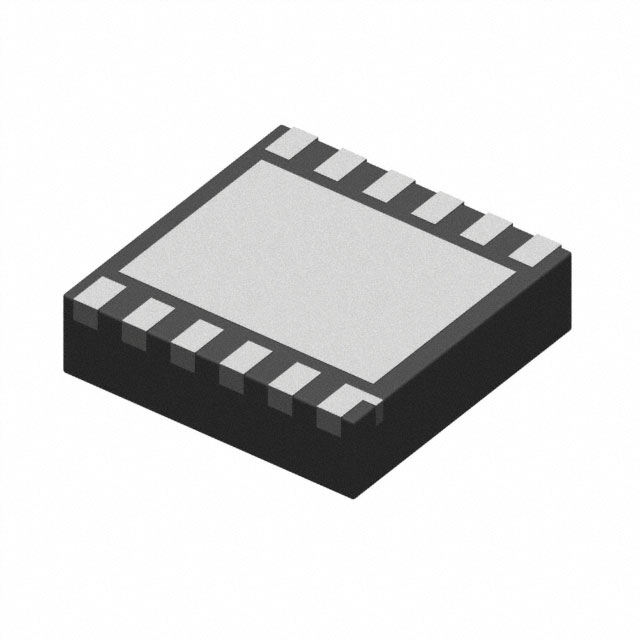

NCP45541IMNTWG-HIC PWR SWITCH N-CHAN 1:1 12DFN |
12,122 |
|
Datasheet |
12-VFDFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 20A | 4.8mOhm | Non-Inverting | Power Good, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
SLG59H1128VA 4.8 MM POWER CONTROL SWITCH W |
28,942 |
|
Datasheet |
18-PowerUFQFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | - | 4.5V ~ 22V | 5A | 13.1mOhm | CMOS | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-STQFN (1.6x3) |
|
BTS50302EKAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
12,688 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 28V | Not Required | 4A | 30mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14-40-EP |
|
BTT60301ERAXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
7,638 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 6A | 31mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TDSO-14-11 |
|
TPS2044BDIC PWR SWITCH N-CH 2X1:2 16SOIC |
4,062 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 70mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
VN5R003HTR-EIC PWR SWITCH N-CHANNEL 1:1 HPAK |
91,438 |
|
Datasheet |
TO-252-7, DPAK (6 Leads + Tab) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | -16V ~ 28V | Not Required | - | 3mOhm | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | HPAK |
|

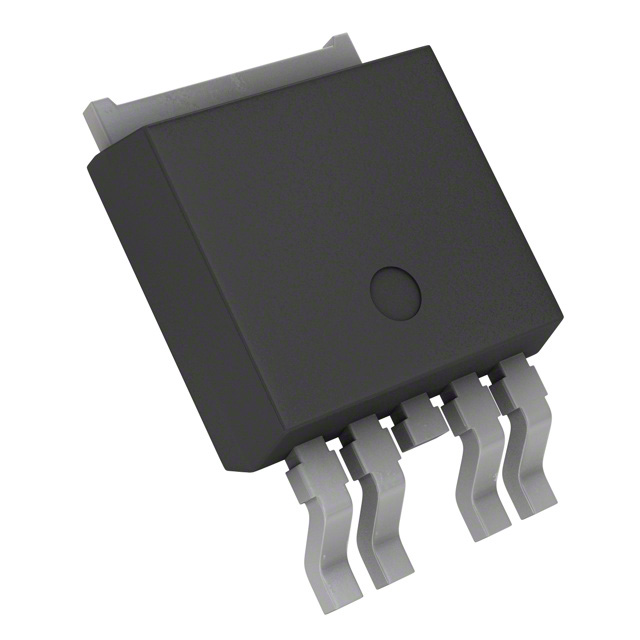

BTS3160DAUMA1IC PWR SWITCH N-CHAN 1:1 TO252-5 |
15,904 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | HITFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 45V | Not Required | 7.8A | 8mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-5-13 |
|
BV1HJ045EFJ-CE2BUILT-IN OUTPUT DIAGNOSIS 1CH HI |
5,886 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 5A | 45mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
VNP10N07-EIC PWR DRIVER N-CHAN 1:1 TO220AB |
1,826 |
|
Datasheet |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 100mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
|
BTS50081EKBXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
6,734 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 28V | Not Required | 11A | 8mOhm | Non-Inverting | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14-47-EP |
|
NCP45760IMN24RTWG760 MCM |
1,596 |
|
Datasheet |
12-VFDFN Exposed Pad | ecoSWITCH™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 3V ~ 24V | 3V ~ 5.5V | 20A | 17mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
TPS2551DBVRIC PWR SWITCH N-CHAN 1:1 SOT23-6 |
1,830 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 6.5V | Not Required | 1.1A | 85mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
VNP20N07-EIC PWR DRIVER N-CHAN 1:1 TO220AB |
3,298 |
|
Datasheet |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 50mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
|
ADP197ACPZN-01-R7IC PWR SWITCH N-CHAN 1:1 6LFCSP |
4,144 |
|
Datasheet |
6-UDFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 3A | 27mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
MIC2027-1YMIC PWR SWITCH N-CH 2X1:2 16SOIC |
1,642 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Active | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
